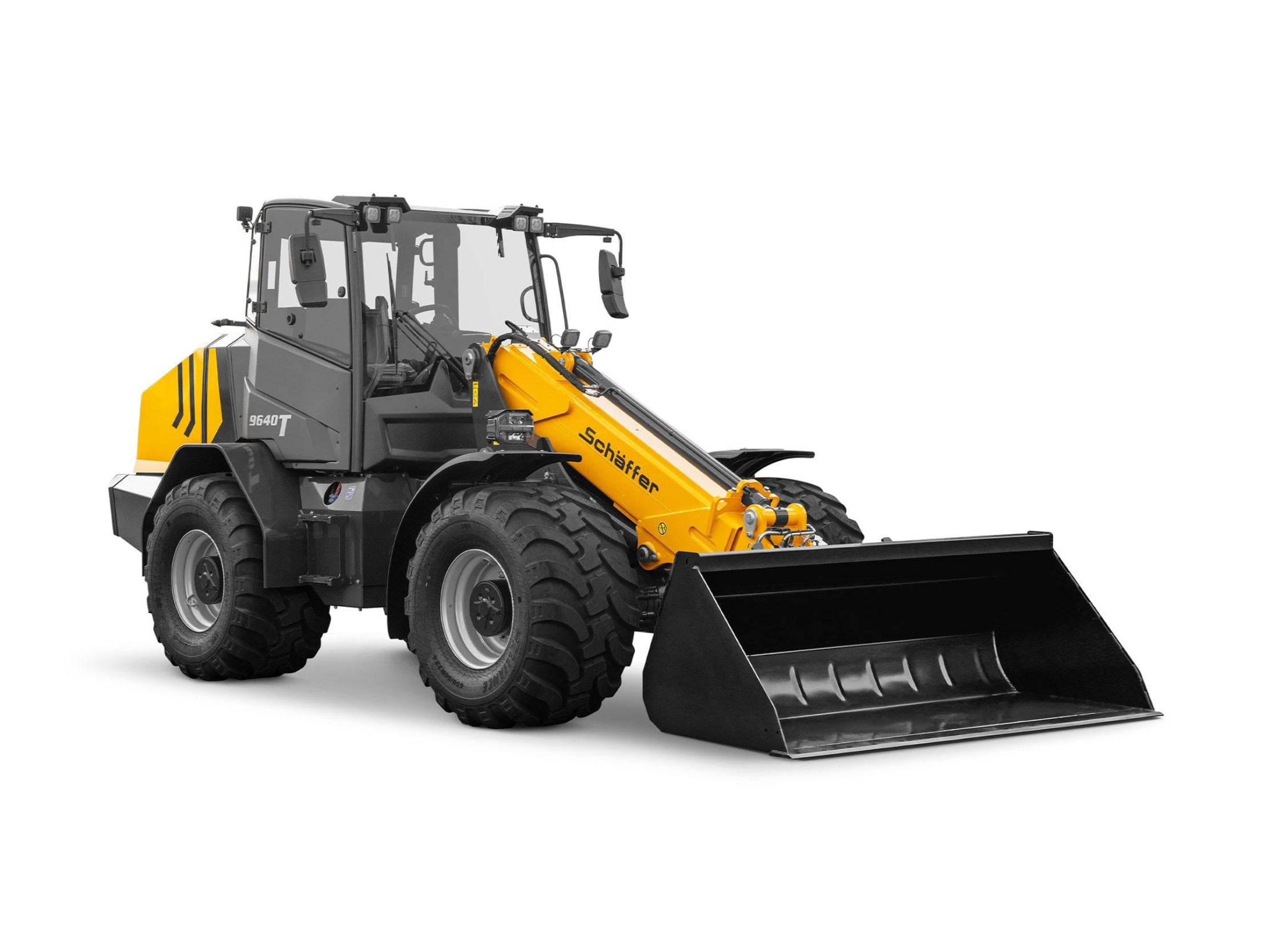

9640 T-3 Schäffer 9640 T-3 Specifications & Technical Data (2024—2026)

Weight: 9.7t – Standard tyres: 460/70R24 AS,ET-50 – Steering mode: KL – Transport length: 6.26m – Transport width: 2.38m – Transport height: 2.83m

9640 T-3

Years of manufacture: 2024—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 9640 T-3 Schäffer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 9.7 t

Standard tyres: 460/70R24 AS,ET-50

Steering mode: KL

Transport length: 6.26 m

Transport width: 2.38 m

Transport height: 2.83 m

Travel speed: 20 km/h

Max. discharge height: 4.574 m

Turning radius outside: 4.56 m

Engine manuf.: Deutz

Engine type: TCD3.6

Engine power: 105 kW

Displacement: 3.621 l

No. of cylinders: 4

Emission level: V

More technical details, like: bucket width, bucket capacity, bucket capacity min., bucket capacity max., lifting force, model series, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Schäffer 9640 T-3 FAQ

When was the Schu00e4ffer 9640 T-3 manufactured?

The Schu00e4ffer 9640 T-3 was first produced in 2024.

How much does the Schu00e4ffer 9640 T-3 wheel loader weigh?

The Schu00e4ffer 9640 T-3 wheel loader weighs 9.7 tons.

What are the transport dimensions of the Schu00e4ffer 9640 T-3 wheel loader?

The Schu00e4ffer 9640 T-3 has a transport length of 6.26 meters, a transport width of 2.38 meters, and a transport height of 2.83 meters.

What is the travel speed of the Schu00e4ffer 9640 T-3 wheel loader?

The Schu00e4ffer 9640 T-3 has a travel speed of 20 km/h.

What are the undercarriage specifications of the Schu00e4ffer 9640 T-3 wheel loader?

The Schu00e4ffer 9640 T-3 is equipped with standard tyres sized 460/70R24 AS,ET-50.

What are the maneuverability specifications of the Schu00e4ffer 9640 T-3 wheel loader?

The Schu00e4ffer 9640 T-3 has an articulated-frame steering system and an outside turning radius of 4.56 meters.

What is the maximum discharge height of the Schu0000e4ffer 9640 T-3?

The Schu0000e4ffer 9640 T-3 has a maximum discharge height of 4.574 meters.
