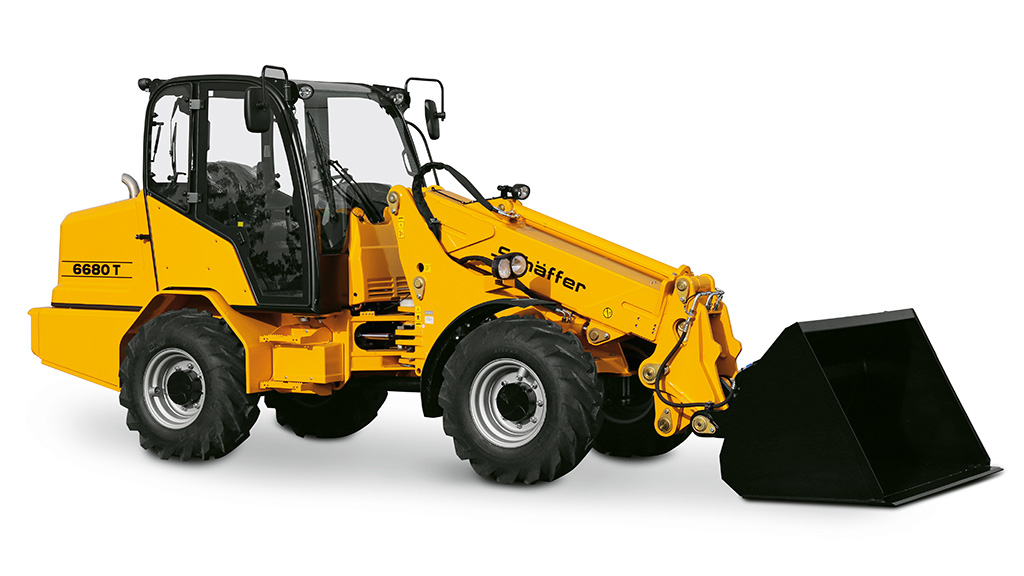

The Schäffer 6680 T is a wheel loader manufactured from 2016 to 2018. It has a weight of 5.6 tons and a transport length of 5.78 m…

The Schäffer 6680 T is a wheel loader manufactured from 2016 to 2018. It has a weight of 5.6 tons and a transport length of 5.78 meters. The maximum discharge height is 3.93 meters and it can travel at a speed of 20 km/h. The transport width is 1.59 meters and the transport height is 2.43 meters. It has a lifting force of 30.4 kN and is equipped with a telescopic mechanism. The turning radius outside is 4 meters.

Wheel Loaders Schäffer 6680 T

Technical specs - 6680 T Schäffer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.6 t
Standard tyres
15.5/60-18 AS
Steering mode
KL
Transport length
5.78 m
Transport width
1.59 m
Transport height
2.43 m
Travel speed
20 km/h
Max. discharge height
3.93 m
Turning radius outside
4 m
Lifting force
30.4 kN
Engine manuf.
Deutz
Engine type
k.A.
Engine power
55 kW
Displacement
3.6 l
No. of cylinders
4
Emission level
Tier 3

More technical details, like: bucket width, bucket capacity, bucket capacity min., bucket capacity max., model series, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Schäffer 6680 T FAQ

When was the Schu00e4ffer 6680 T manufactured?

The Schu00e4ffer 6680 T was manufactured from 2016 to 2018.

How much does the Schu00e4ffer 6680 T wheel loader weigh?

The Schu00e4ffer 6680 T wheel loader weighs 5.6 tons.

What are the transport dimensions of the Schu00e4ffer 6680 T wheel loader?

The Schu00e4ffer 6680 T has a transport length of 5.78 meters, a transport width of 1.59 meters, and a transport height of 2.43 meters.

What is the travel speed of the Schu00e4ffer 6680 T wheel loader?

The Schu00e4ffer 6680 T has a travel speed of 20 km/h.

What are the undercarriage specifications of the Schaffer 6680 T wheel loader?

The Schaffer 6680 T wheel loader comes equipped with standard tyres sized 15.5/60-18 AS.

What are the maneuverability specifications of the Schu00e4ffer 6680 T wheel loader?

The Schu00e4ffer 6680 T has an articulated-frame steering system and an outside turning radius of 4 meters.

What is the power rating of the Schu0000e4ffer 6680 T wheel loader?

The source data does not provide power rating information for the Schu0000e4ffer 6680 T wheel loader.

What is the material handling capacity of the Schu00e4ffer 6680 T in terms of discharge height?

The Schu00e4ffer 6680 T has a maximum discharge height of 3.93 meters.

How much is a Schu00e4ffer 6680 T Wheel loader (2016u20132018) worth?

The residual value of the Schu00e4ffer 6680 T depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
