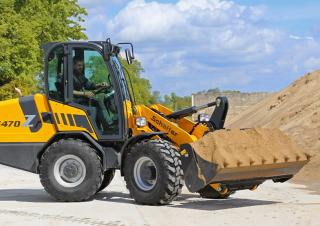

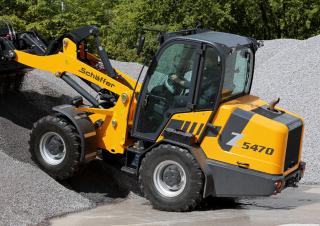

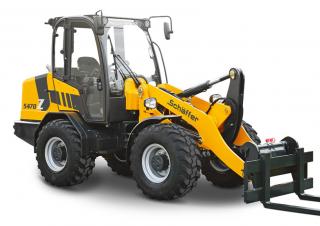

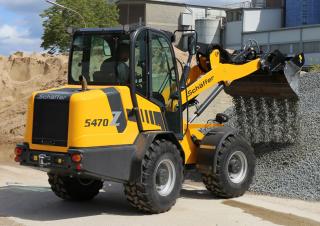

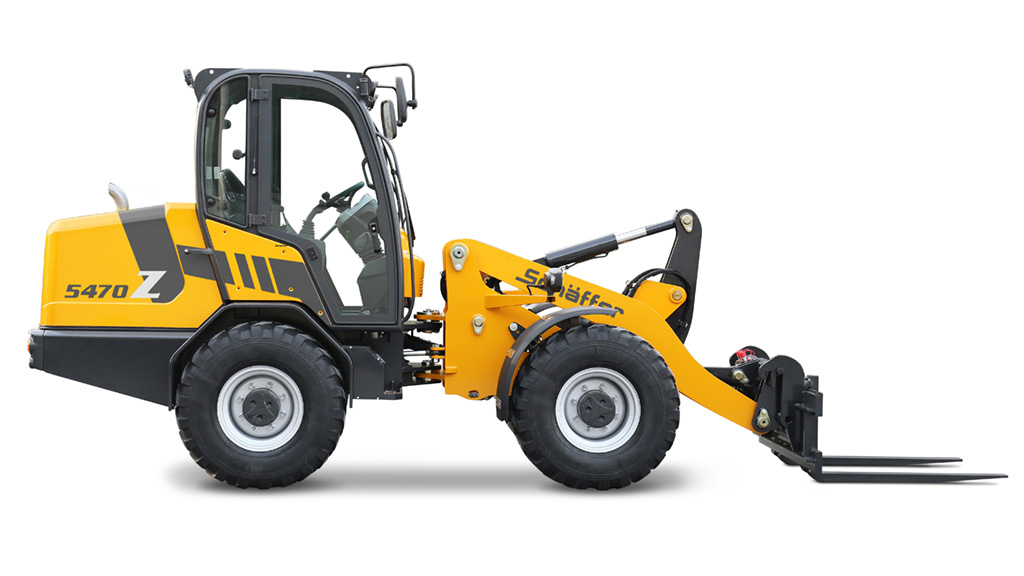

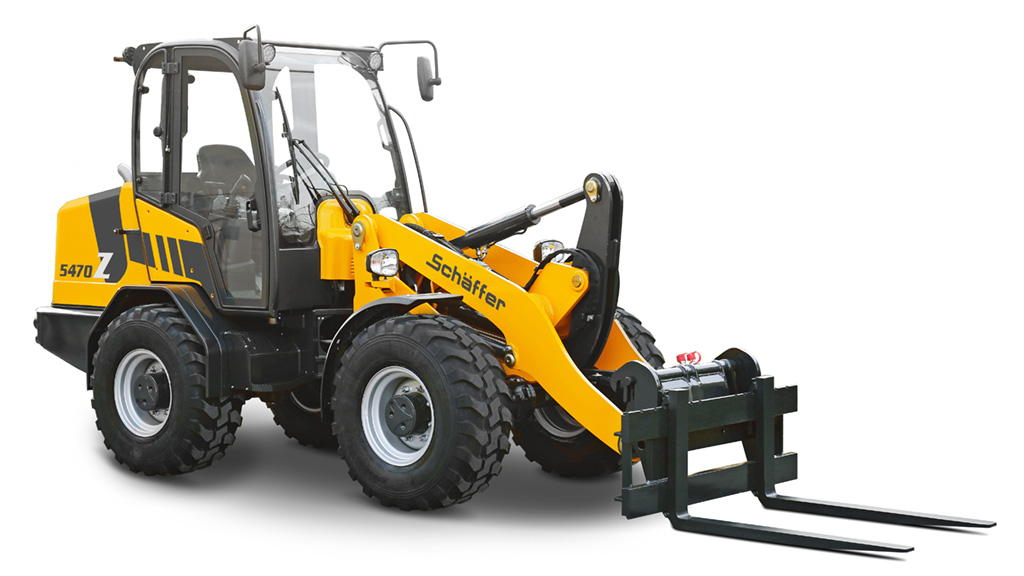

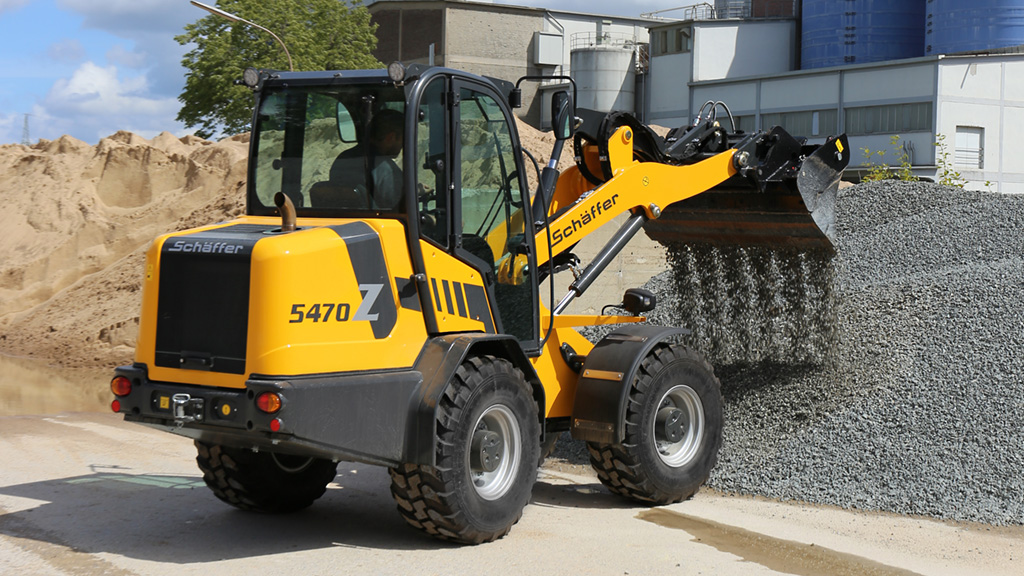

5470 Z Schäffer 5470 Z Specifications & Technical Data (2019—2026)

The Schäffer 5470 Z is a wheel loader manufactured since 2019. It has a weight of 3.4 tons and a transport length of 4.08 meters. …

The Schäffer 5470 Z is a wheel loader manufactured since 2019. It has a weight of 3.4 tons and a transport length of 4.08 meters. The bucket capacity is 0.55 cubic meters with a width of 1.3 meters. The maximum discharge height is 1.7 meters. It has a travel speed of 20 km/h and a transport width of 1.42 meters. The transport height is 2.27 meters. The lifting force is 23.54 kN and it has a turning radius outside of 2.68 meters.

5470 Z

Years of manufacture: 2019—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 5470 Z Schäffer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 3.4 t

Standard tyres: 11.5/80-15.3 AS

Bucket width: 1.3 m

Bucket capacity: 0.55 m³

Steering mode: KL

Transport length: 4.08 m

Transport width: 1.42 m

Transport height: 2.27 m

Travel speed: 20 km/h

Max. discharge height: 1.7 m

Turning radius outside: 2.68 m

Lifting force: 23.54 kN

Engine manuf.: Deutz

Engine type: TD2.9

Engine power: 55 kW

Displacement: 2.925 l

No. of cylinders: 4

Emission level: V

More technical details, like: bucket capacity min., bucket capacity max., model series, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Schäffer 5470 Z FAQ

When was the Schu00e4ffer 5470 Z manufactured?

The Schu00e4ffer 5470 Z was first produced in 2019.

How much does the Schu00e4ffer 5470 Z wheel loader weigh?

The Schu00e4ffer 5470 Z wheel loader weighs 3.4 tons.

What are the transport dimensions of the Schu00e4ffer 5470 Z wheel loader?

The Schu00e4ffer 5470 Z has a transport length of 4.08 meters, a transport width of 1.42 meters, and a transport height of 2.27 meters.

What is the travel speed of the Schu00e4ffer 5470 Z wheel loader?

The Schu00e4ffer 5470 Z has a travel speed of 20 km/h.

What are the standard tyres specifications for the Schu00e4ffer 5470 Z wheel loader?

The Schu00e4ffer 5470 Z wheel loader comes equipped with standard tyres sized 11.5/80-15.3 AS.

What are the maneuverability specifications of the Schu00e4ffer 5470 Z wheel loader?

The Schu00e4ffer 5470 Z wheel loader has an articulated-frame steering system and an outside turning radius of 2.68 meters.

What is the lifting force of the Schu0000e4ffer 5470 Z wheel loader?

The Schu0000e4ffer 5470 Z wheel loader has a lifting force of 23.54 kN.

What is the maximum discharge height of the Schu00e4ffer 5470 Z wheel loader?

The Schu00e4ffer 5470 Z wheel loader has a maximum discharge height of 1.7 meters.

What are the specifications of the primary work tool on the Schu00e4ffer 5470 Z wheel loader?

The primary work tool of the Schu00e4ffer 5470 Z wheel loader has a bucket capacity of 0.55 cubic meters and a bucket width of 1.3 meters.

How much is a Schu00e4ffer 5470 Z Wheel loader (2019u20132025) worth?

The residual value of the Schu00e4ffer 5470 Z depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
