4670 Z-2 Schäffer 4670 Z-2 Specifications & Technical Data (2025—2026)

Weight: 3.52t – Standard tyres: 11.5/80-15.3 AS – Steering mode: KL – Transport length: 4.76m – Transport width: 1.73m – Transport height: 2.27m

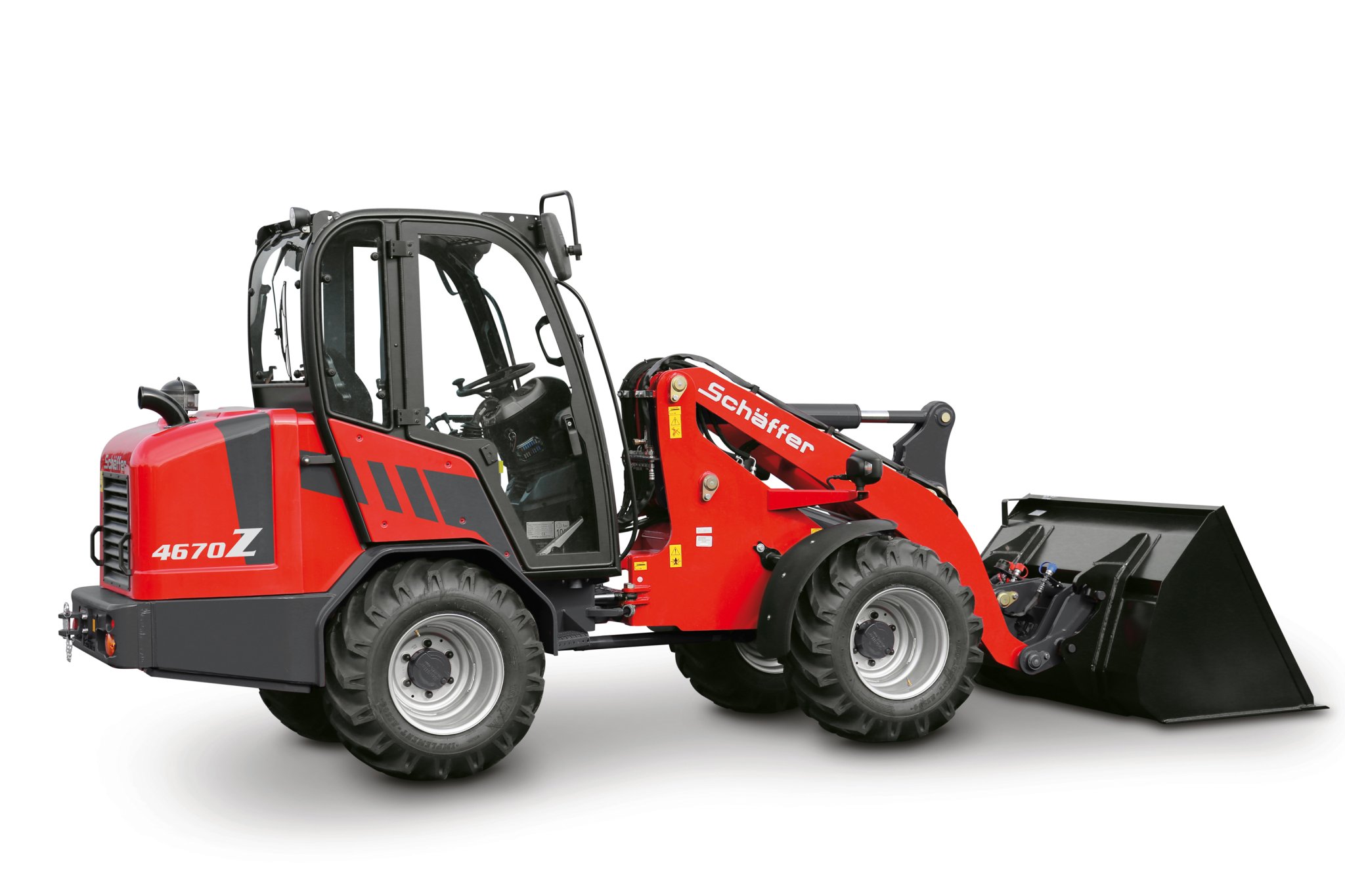

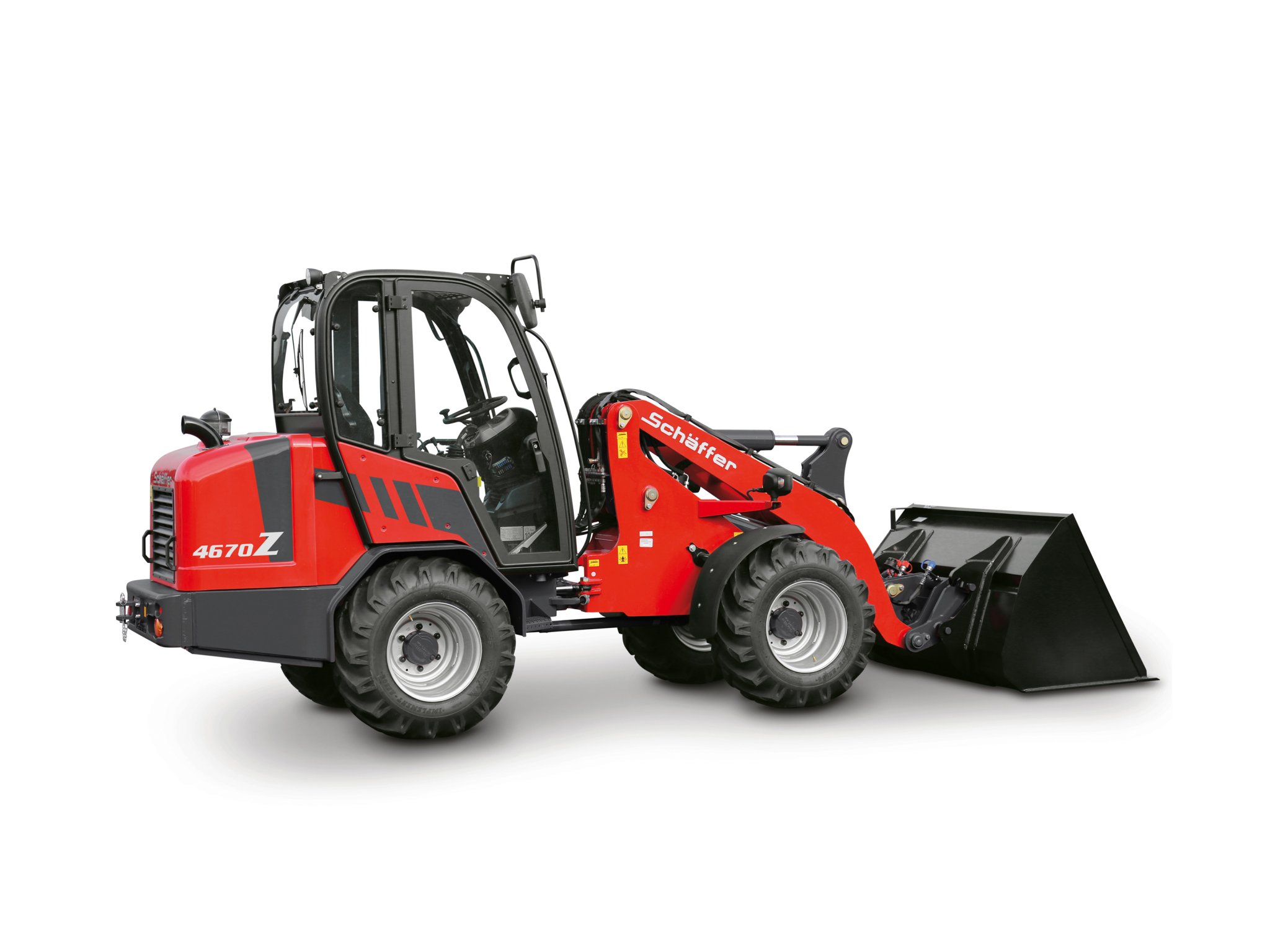

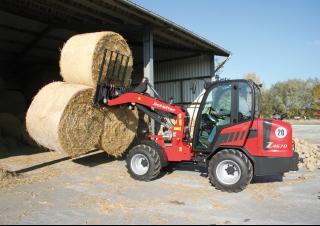

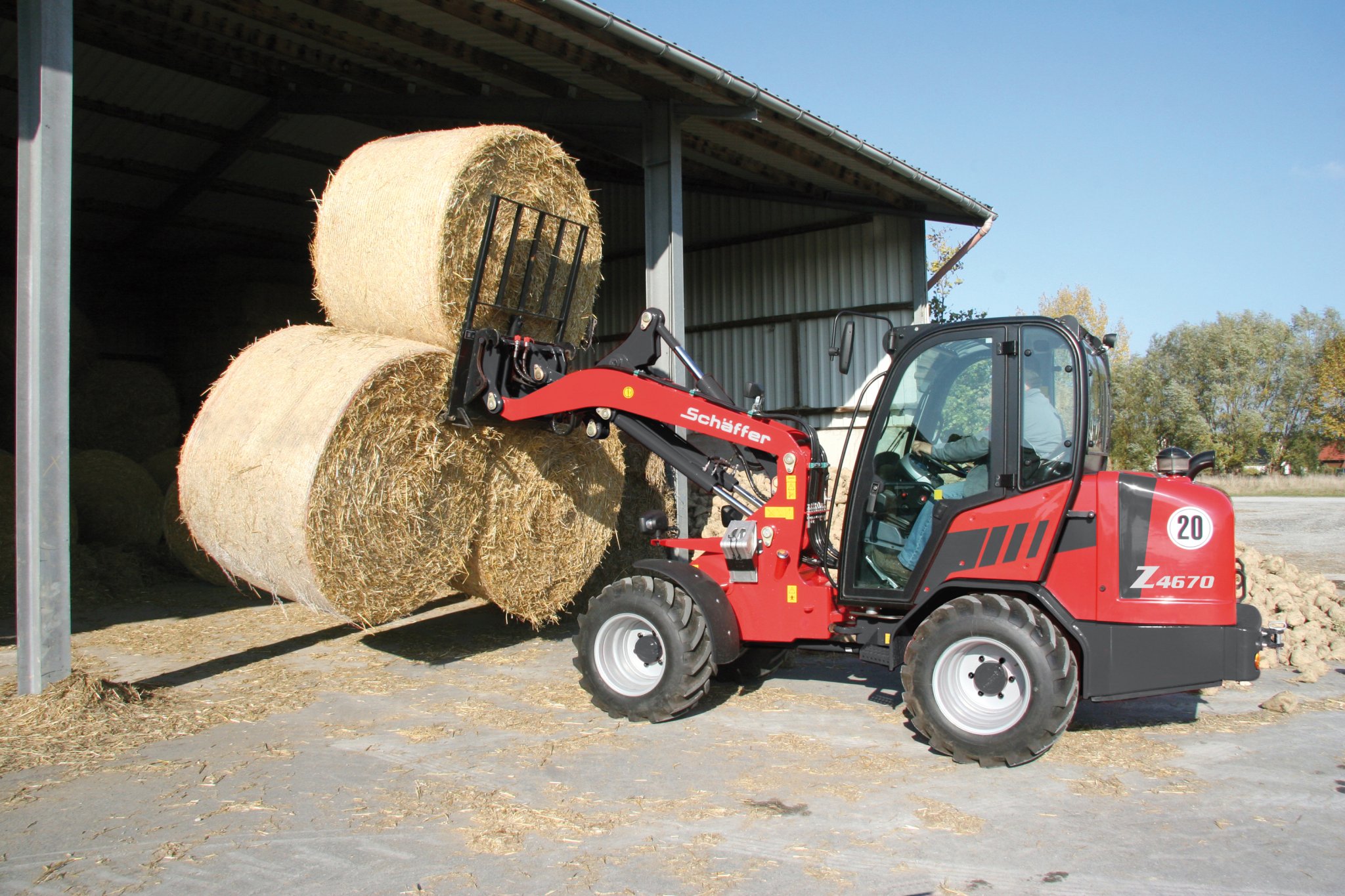

Wheel Loaders Schäffer 4670 Z-2
Wheel Loaders Schäffer 4670 Z-2
Wheel Loaders Schäffer 4670 Z-2
Wheel Loaders Schäffer 4670 Z-2
Wheel Loaders Schäffer 4670 Z-2
Wheel Loaders Schäffer 4670 Z-2

Technical specs - 4670 Z-2 Schäffer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.52 t
Standard tyres
11.5/80-15.3 AS
Steering mode
KL
Transport length
4.76 m
Transport width
1.73 m
Transport height
2.27 m
Travel speed
20 km/h
Max. discharge height
2.5 m
Turning radius outside
3.175 m
Engine manuf.
Kubota
Engine type
V2403-CR-T
Engine power
48.6 kW
No. of cylinders
4
Emission level
V

More technical details, like: bucket width, bucket capacity, bucket capacity min., bucket capacity max., lifting force, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No
