4670 Z Schäffer 4670 Z Specifications & Technical Data (2019—2026)

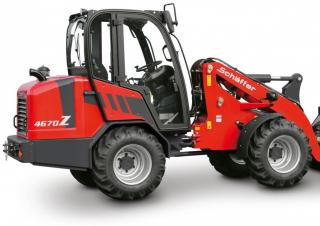

The Schäffer 4670 Z is a wheel loader manufactured since 2019. It has a weight of 3.4 tons and a transport length of 4.08 meters. …

The Schäffer 4670 Z is a wheel loader manufactured since 2019. It has a weight of 3.4 tons and a transport length of 4.08 meters. The bucket capacity is 0.55 cubic meters with a width of 1.3 meters. The maximum discharge height is 1.7 meters. It has a travel speed of 20 km/h and a transport width of 1.42 meters. The transport height is 2.27 meters. The lifting force is 23.54 kN and it has a turning radius outside of 2.68 meters.

Wheel Loaders Schäffer 4670 Z

Technical specs - 4670 Z Schäffer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.4 t
Standard tyres
11.5/80-15.3 AS
Bucket width
1.3 m
Bucket capacity
0.55 m³
Steering mode
KL
Transport length
4.08 m
Transport width
1.42 m
Transport height
2.27 m
Travel speed
20 km/h
Max. discharge height
1.7 m
Turning radius outside
2.68 m
Lifting force
23.54 kN
Engine manuf.
Kubota
Engine type
V2403-CR-T
Engine power
48.6 kW
No. of cylinders
4
Emission level
V

More technical details, like: bucket capacity min., bucket capacity max., model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Schäffer 4670 Z FAQ

When was the Schu00e4ffer 4670 Z manufactured?

The Schu00e4ffer 4670 Z was first produced in 2019.

How much does the Schu00e4ffer 4670 Z wheel loader weigh?

The Schu00e4ffer 4670 Z wheel loader weighs 3.4 tons.

What are the transport dimensions of the Schu00e4ffer 4670 Z wheel loader?

The Schu00e4ffer 4670 Z has a transport length of 4.08 meters, a transport width of 1.42 meters, and a transport height of 2.27 meters.

What is the travel speed of the Schu00e4ffer 4670 Z wheel loader?

The Schu00e4ffer 4670 Z has a travel speed of 20 km/h.

What are the tyre specifications of the Schu0000e4ffer 4670 Z wheel loader?

The Schu0000e4ffer 4670 Z wheel loader is equipped with standard tyres sized 11.5/80-15.3 AS.

What are the maneuverability specifications of the Schu00e4ffer 4670 Z wheel loader?

The Schu00e4ffer 4670 Z has an articulated-frame steering system and an outside turning radius of 2.68 meters.

What are the power ratings of the Schu0000e4ffer 4670 Z wheel loader?

The source data does not provide any power ratings for the Schu0000e4ffer 4670 Z wheel loader.

What is the maximum discharge height of the Schu00e4ffer 4670 Z?

The Schu00e4ffer 4670 Z has a maximum discharge height of 1.7 meters.

What are the bucket specifications of the Schu00e4ffer 4670 Z wheel loader?

The Schu00e4ffer 4670 Z wheel loader has a bucket capacity of 0.55 cubic meters and a bucket width of 1.3 meters.

How much is a Schu00e4ffer 4670 Z Wheel loader (2019u20132025) worth?

The residual value of the Schu00e4ffer 4670 Z depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
