3450 S Schäffer 3450 S Specifications & Technical Data (2016—2019)

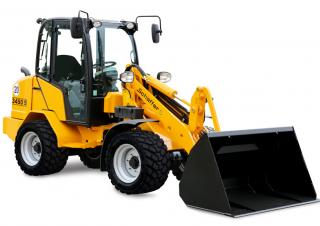

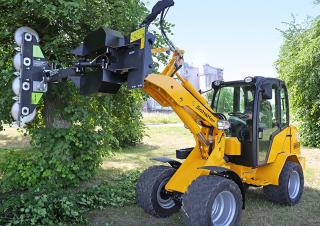

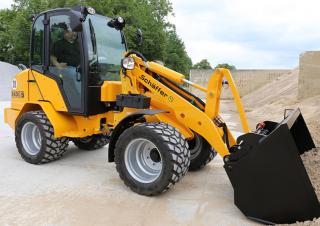

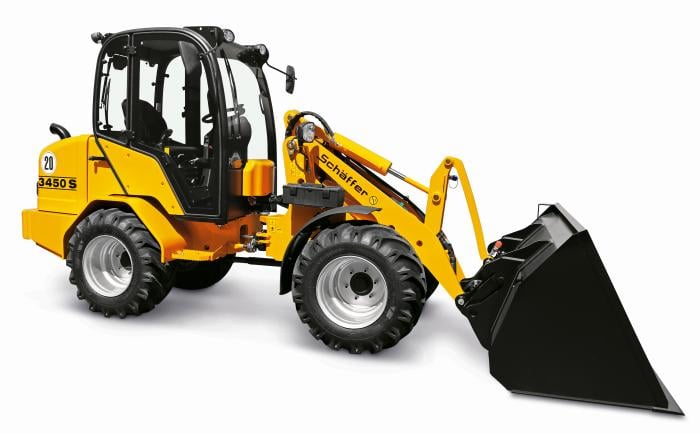

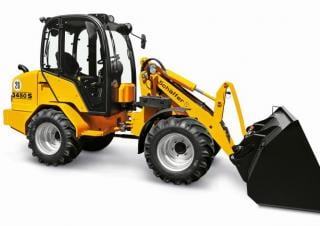

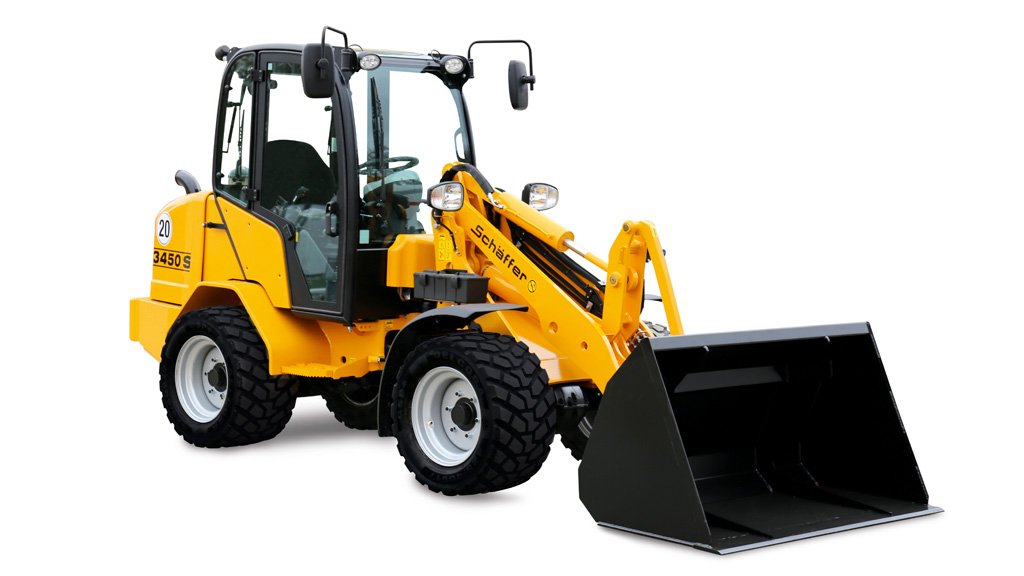

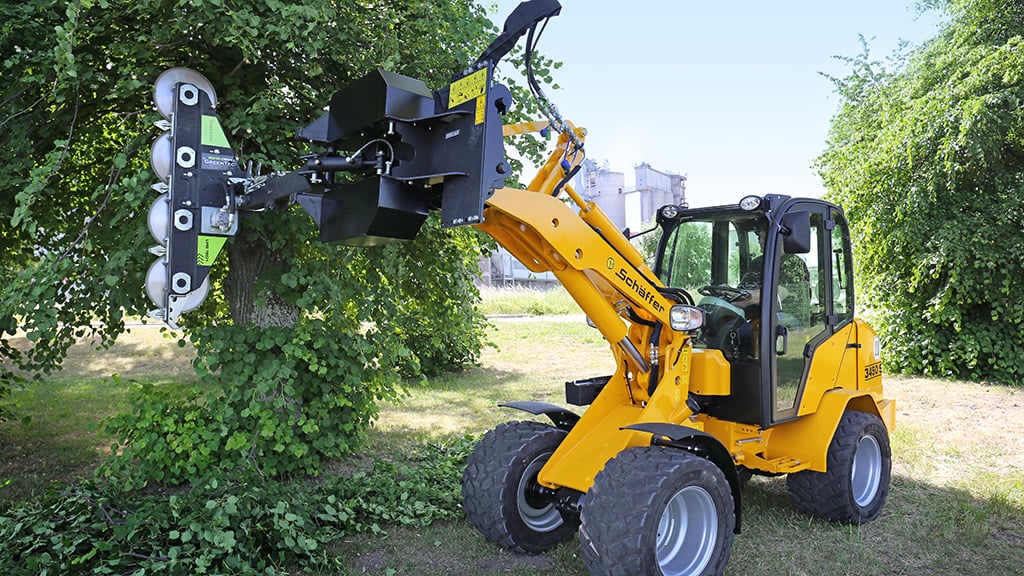

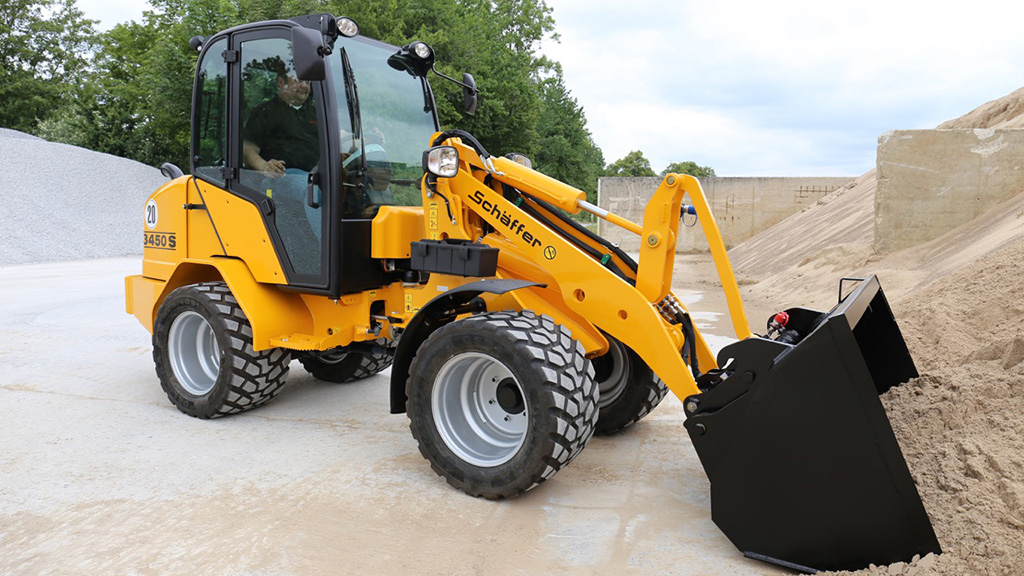

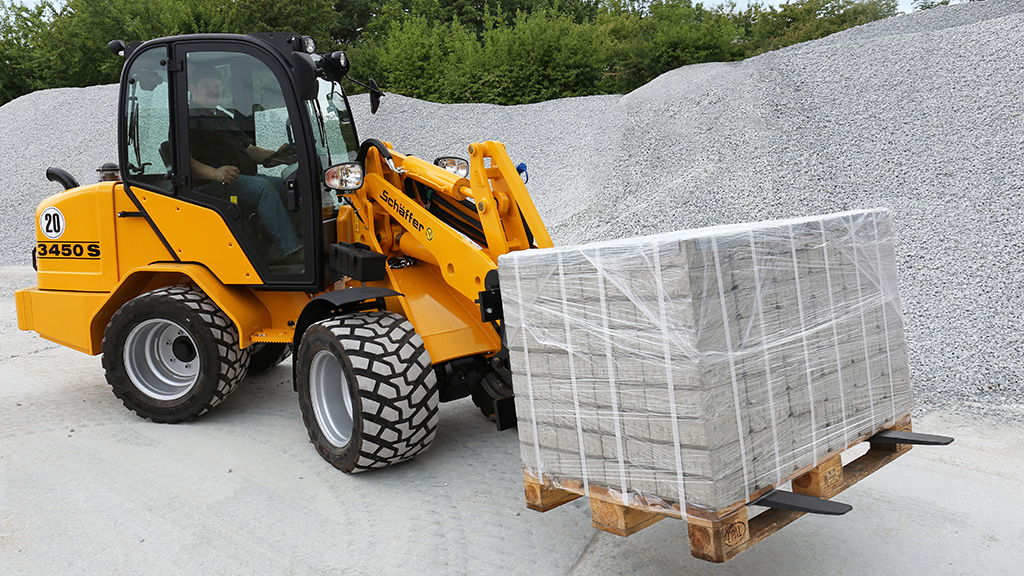

The Schäffer 3450 S is a wheel loader manufactured from 2016 to 2019. It has a weight of 3.3 tons and a transport length of 4.4 me…

The Schäffer 3450 S is a wheel loader manufactured from 2016 to 2019. It has a weight of 3.3 tons and a transport length of 4.4 meters. The bucket capacity is 0.55 cubic meters with a width of 1.4 meters. The maximum discharge height is 1.8 meters. It has a travel speed of 20 km/h and a transport width of 1.22 meters. The transport height is 2.23 meters and the turning radius outside is 2.5 meters. The minimum bucket capacity is also 0.55 cubic meters.

3450 S

Years of manufacture: 2016—2019

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 3450 S Schäffer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 3.3 t

Standard tyres: 11.5/80-15.3 AS

Bucket width: 1.4 m

Bucket capacity: 0.55 m³

Bucket capacity min.: 0.55 m³

Steering mode: KL

Transport length: 4.4 m

Transport width: 1.22 m

Transport height: 2.23 m

Travel speed: 20 km/h

Max. discharge height: 1.8 m

Turning radius outside: 2.5 m

Engine manuf.: Kubota

Engine type: N/A

Engine power: 37 kW

No. of cylinders: 4

More technical details, like: bucket capacity max., lifting force, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

3450 S Schäffer Specification for Europe (DE)

Schäffer 3450 S FAQ

When was the Schu00e4ffer 3450 S manufactured?

The Schu00e4ffer 3450 S was manufactured from 2016 to 2019.

How much does the Schu00e4ffer 3450 S wheel loader weigh?

The Schu00e4ffer 3450 S wheel loader weighs 3.3 tons.

What are the transport dimensions of the Schu00e4ffer 3450 S wheel loader?

The Schu00e4ffer 3450 S has a transport length of 4.4 meters, a transport width of 1.22 meters, and a transport height of 2.23 meters.

What is the travel speed of the Schu00e4ffer 3450 S wheel loader?

The Schu00e4ffer 3450 S wheel loader has a travel speed of 20 km/h.

What is the standard tyre size of the Schu0000e4ffer 3450 S wheel loader?

The Schu0000e4ffer 3450 S wheel loader has standard tyres sized 11.5/80-15.3 AS.

What are the maneuverability specifications of the Schu00e4ffer 3450 S wheel loader?

The Schu00e4ffer 3450 S wheel loader has an outside turning radius of 2.5 meters and uses articulated-frame steering.

What is the maximum discharge height of the Schu00e4ffer 3450 S wheel loader?

The Schu00e4ffer 3450 S wheel loader has a maximum discharge height of 1.8 meters.

What are the specifications of the bucket on the Schu00e4ffer 3450 S wheel loader?

The Schu00e4ffer 3450 S wheel loader has a bucket capacity of 0.55 cubic meters, a minimum bucket capacity of 0.55 cubic meters, and a bucket width of 1.4 meters.
