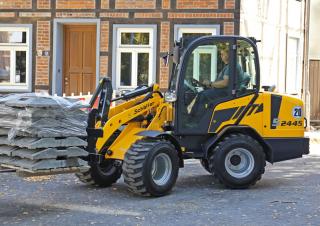

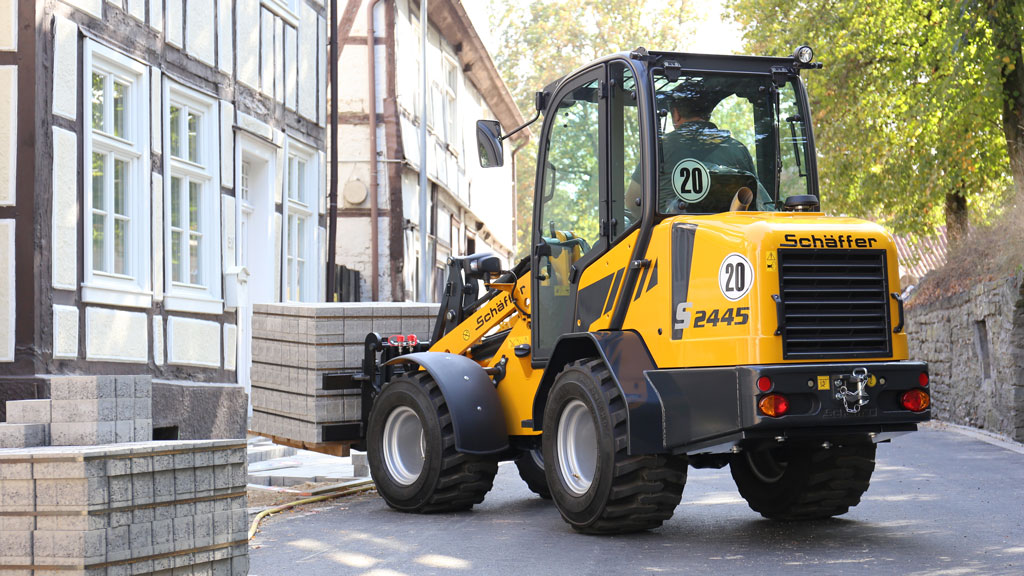

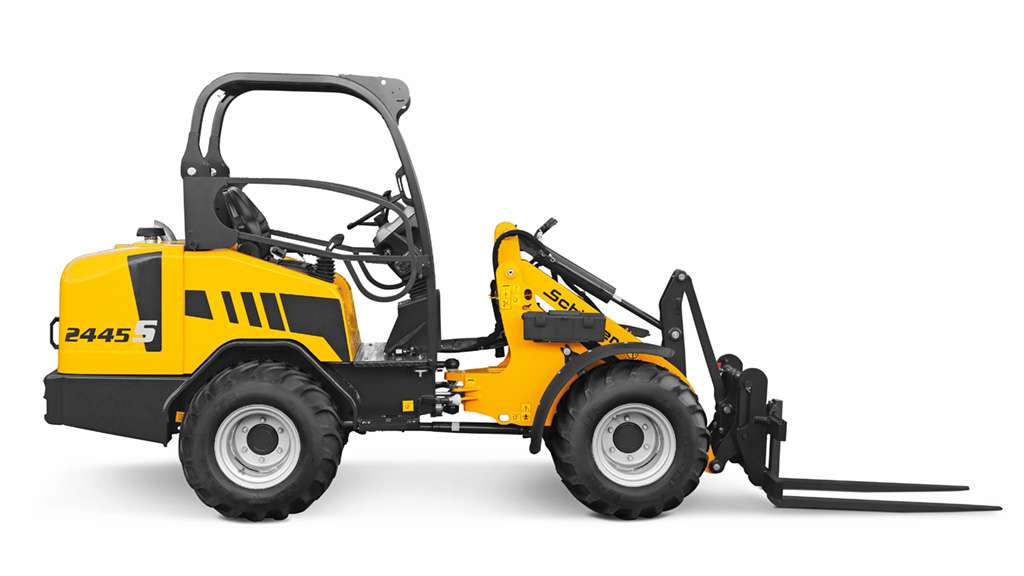

2445 S Schäffer 2445 S Specifications & Technical Data (2019—2026)

The Schäffer 2445 S is a wheel loader manufactured since 2019. It has a weight of 2.5 tons and a transport length of 4.76 meters. …

The Schäffer 2445 S is a wheel loader manufactured since 2019. It has a weight of 2.5 tons and a transport length of 4.76 meters. The bucket capacity is 0.5 cubic meters with a width of 1.4 meters. The maximum discharge height is 2.5 meters. It has a travel speed of 20 km/h and a transport width of 1.42 meters. The transport height is 2.27 meters. The lifting force is 18.63 kN and it has a turning radius outside of 3.01 meters.

2445 S

Years of manufacture: 2019—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 2445 S Schäffer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 2.5 t

Standard tyres: 10.0/75-15.3 AS

Bucket width: 1.4 m

Bucket capacity: 0.5 m³

Steering mode: KL

Transport length: 4.76 m

Transport width: 1.42 m

Transport height: 2.27 m

Travel speed: 20 km/h

Max. discharge height: 2.5 m

Turning radius outside: 3.01 m

Lifting force: 18.63 kN

Engine manuf.: Kubota

Engine type: D1803-CR-T

Engine power: 37 kW

No. of cylinders: 3

Emission level: V

More technical details, like: bucket capacity min., bucket capacity max., model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Schäffer 2445 S FAQ

When was the Schu00e4ffer 2445 S manufactured?

The Schu00e4ffer 2445 S was first produced in 2019.

How much does the Schu00e4ffer 2445 S wheel loader weigh?

The Schu00e4ffer 2445 S wheel loader weighs 2.5 tons.

What are the transport dimensions of the Schu00e4ffer 2445 S wheel loader?

The Schu00e4ffer 2445 S has a transport length of 4.76 meters, a transport width of 1.42 meters, and a transport height of 2.27 meters.

What is the travel speed of the Schu00e4ffer 2445 S wheel loader?

The Schu00e4ffer 2445 S has a travel speed of 20 km/h.

What are the undercarriage specifications of the Schu00e4ffer 2445 S wheel loader?

The Schu00e4ffer 2445 S wheel loader is equipped with standard tyres sized 10.0/75-15.3 AS.

What are the maneuverability specifications of the Schu00e4ffer 2445 S wheel loader?

The Schu00e4ffer 2445 S wheel loader has an articulated-frame steering system and an outside turning radius of 3.01 meters.

What are the power ratings of the Schu0000e4ffer 2445 S wheel loader?

There are no power rating specifications available for the Schu0000e4ffer 2445 S wheel loader in the provided data.

What is the material handling capacity of the Schu00e4ffer 2445 S in terms of discharge height?

The Schu00e4ffer 2445 S has a maximum discharge height of 2.5 meters.

What are the specifications of the primary work tool on the Schu00e4ffer 2445 S wheel loader?

The primary work tool of the Schu00e4ffer 2445 S wheel loader has a bucket capacity of 0.5 cubic meters and a bucket width of 1.4 meters.
