2436 Schäffer 2436 Specifications & Technical Data (2016—2018)

The Schäffer 2436 is a compact wheel loader manufactured from 2016 to 2018. With a weight of 2.4 tons, it has a transport length o…

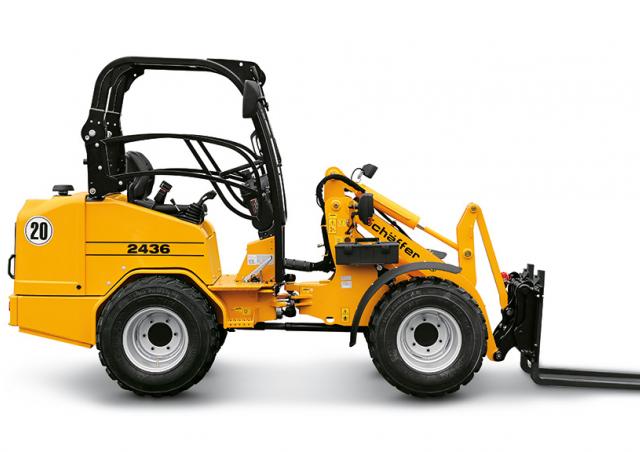

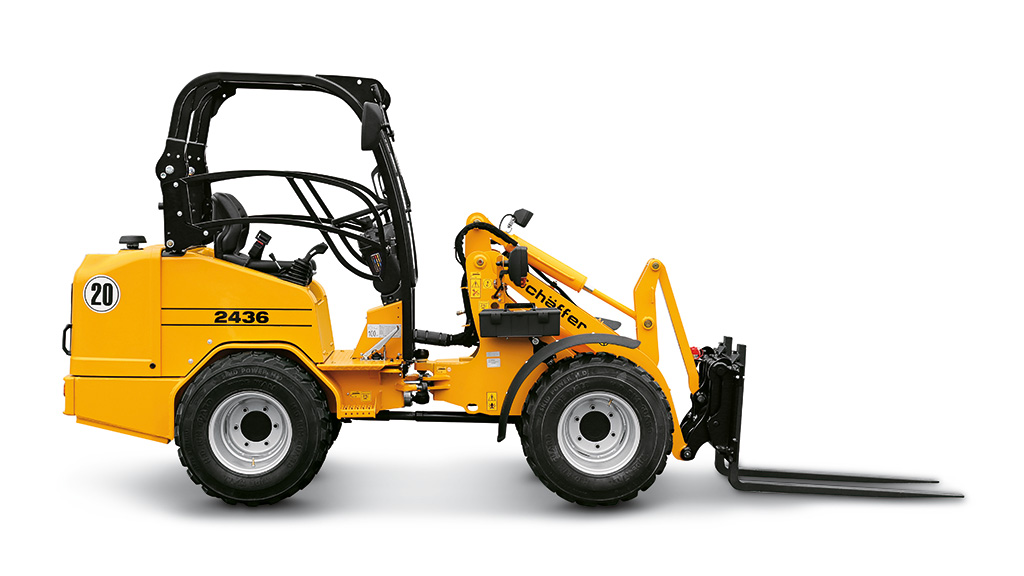

The Schäffer 2436 is a compact wheel loader manufactured from 2016 to 2018. With a weight of 2.4 tons, it has a transport length of 4.045 meters and a transport width of 1.02 meters. The bucket capacity is 0.5 cubic meters, with a bucket width of 1.3 meters. It can reach a maximum discharge height of 1.7 meters and has a travel speed of 20 km/h. The transport height is 2.15 meters and it has a turning radius outside of 2.45 meters. The minimum bucket capacity is also 0.5 cubic meters.

2436

Years of manufacture: 2016—2018

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 2436 Schäffer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 2.4 t

Standard tyres: 10.0/75-15.3 AS

Bucket width: 1.3 m

Bucket capacity: 0.5 m³

Bucket capacity min.: 0.5 m³

Steering mode: KL

Transport length: 4.045 m

Transport width: 1.02 m

Transport height: 2.15 m

Travel speed: 20 km/h

Max. discharge height: 1.7 m

Turning radius outside: 2.45 m

Engine manuf.: Kubota

Engine type: k.A.

Engine power: 26 kW

Revolutions at max torque: 2800 rpm

No. of cylinders: 3

More technical details, like: bucket capacity max., lifting force, model series, dimension lxwxh, displacement, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

2436 Schäffer Specification for Europe (DE)

Schäffer 2436 FAQ

When was the Schu00e4ffer 2436 manufactured?

The Schu00e4ffer 2436 was manufactured from 2016 to 2018.

How much does the Schu00e4ffer 2436 wheel loader weigh?

The Schu00e4ffer 2436 wheel loader weighs 2.4 tons.

What are the transport dimensions of the Schu00e4ffer 2436 wheel loader?

The Schu00e4ffer 2436 has a transport length of 4.05 meters, a transport width of 1.02 meters, and a transport height of 2.15 meters.

What is the travel speed of the Schu00e4ffer 2436 wheel loader?

The Schu00e4ffer 2436 wheel loader has a travel speed of 20 km/h.

What are the standard tyres of the Schu0000e4ffer 2436 wheel loader?

The Schu0000e4ffer 2436 wheel loader is equipped with standard tyres sized 10.0/75-15.3 AS.

What are the maneuverability specifications of the Schu00e4ffer 2436 wheel loader?

The Schu00e4ffer 2436 wheel loader has an articulated-frame steering system and an outside turning radius of 2.45 meters.

What is the material handling capacity of the Schu00e4ffer 2436 in terms of discharge height?

The Schu00e4ffer 2436 has a maximum discharge height of 1.7 meters.

What are the specifications of the bucket on the Schu00e4ffer 2436 wheel loader?

The Schu00e4ffer 2436 wheel loader has a bucket with a capacity of 0.5 cubic meters, a minimum bucket capacity of 0.5 cubic meters, and a bucket width of 1.3 meters.

How much is a Schu00e4ffer 2436 Wheel loader (2016u20132018) worth?

The residual value of the Schu00e4ffer 2436 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
