2345 T Schäffer 2345 T Specifications & Technical Data (2016—2017)

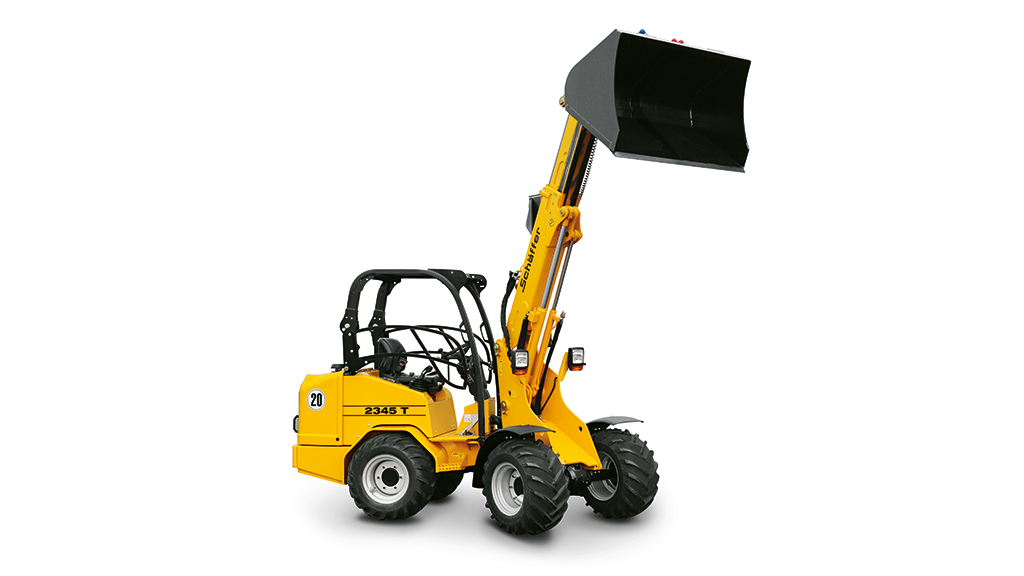

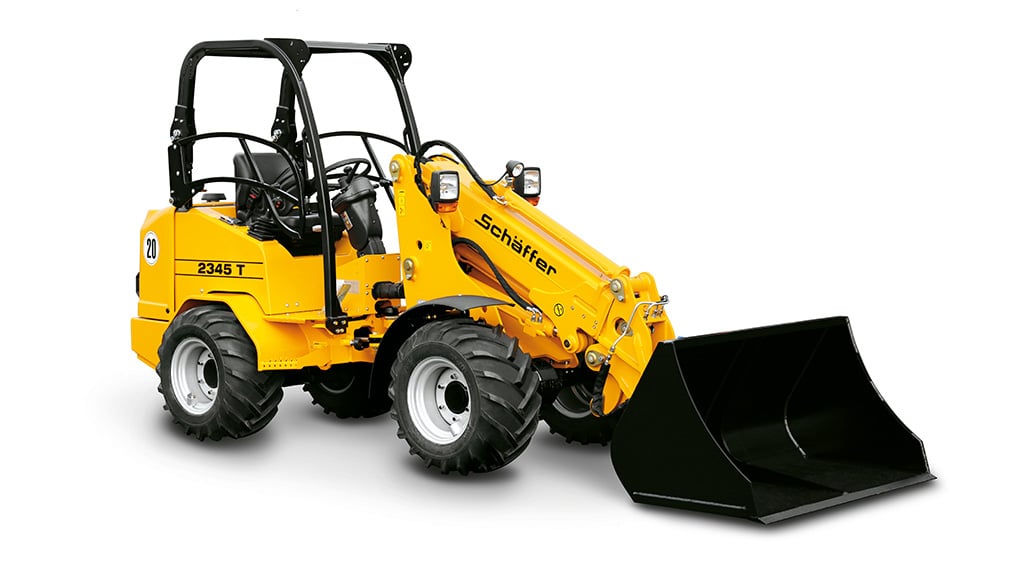

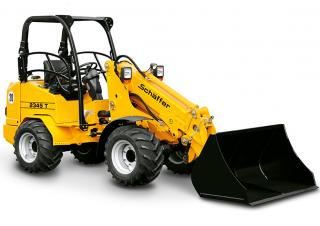

The Schäffer 2345 T is a wheel loader manufactured from 2016 to 2017. It has a weight of 3.05 tons and a transport length of 4.52 …

The Schäffer 2345 T is a wheel loader manufactured from 2016 to 2017. It has a weight of 3.05 tons and a transport length of 4.52 meters. The maximum discharge height is 3.01 meters, and it can travel at a speed of 20 km/h. The transport width is 1.28 meters, and the transport height is 2.11 meters. The turning radius outside is 2.85 meters. Special equipment includes a telescopic feature.

2345 T

Years of manufacture: 2016—2017

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 2345 T Schäffer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 3.05 t

Standard tyres: 10.0/75-15.3 AS

Steering mode: KL

Transport length: 4.52 m

Transport width: 1.28 m

Transport height: 2.11 m

Travel speed: 20 km/h

Max. discharge height: 3.01 m

Turning radius outside: 2.85 m

Engine manuf.: Kubota

Engine type: k.A.

Engine power: 33 kW

No. of cylinders: 4

More technical details, like: bucket width, bucket capacity, bucket capacity min., bucket capacity max., lifting force, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

2345 T Schäffer Specification for Europe (DE)

Schäffer 2345 T FAQ

When was the Schu00e4ffer 2345 T manufactured?

The Schu00e4ffer 2345 T was manufactured from 2016 to 2017.

How much does the Schu00e4ffer 2345 T wheel loader weigh?

The Schu00e4ffer 2345 T wheel loader weighs 3.05 tons.

What are the transport dimensions of the Schu00e4ffer 2345 T wheel loader?

The Schu00e4ffer 2345 T has a transport length of 4.52 meters, a transport width of 1.28 meters, and a transport height of 2.11 meters.

What is the travel speed of the Schu00e4ffer 2345 T wheel loader?

The travel speed of the Schu00e4ffer 2345 T wheel loader is 20 km/h.

What are the undercarriage specifications of the Schu00e4ffer 2345 T wheel loader?

The Schu00e4ffer 2345 T wheel loader is equipped with standard tyres sized 10.0/75-15.3 AS.

What are the maneuverability specifications of the Schu00e4ffer 2345 T wheel loader?

The Schu00e4ffer 2345 T has an articulated-frame steering system and an outside turning radius of 2.85 meters.

What is the material handling capacity of the Schu00e4ffer 2345 T in terms of discharge height?

The Schu00e4ffer 2345 T has a maximum discharge height of 3.01 meters.

How much is a Schu00e4ffer 2345 T Wheel loader (2016u20132017) worth?

The residual value of the Schu00e4ffer 2345 T depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
