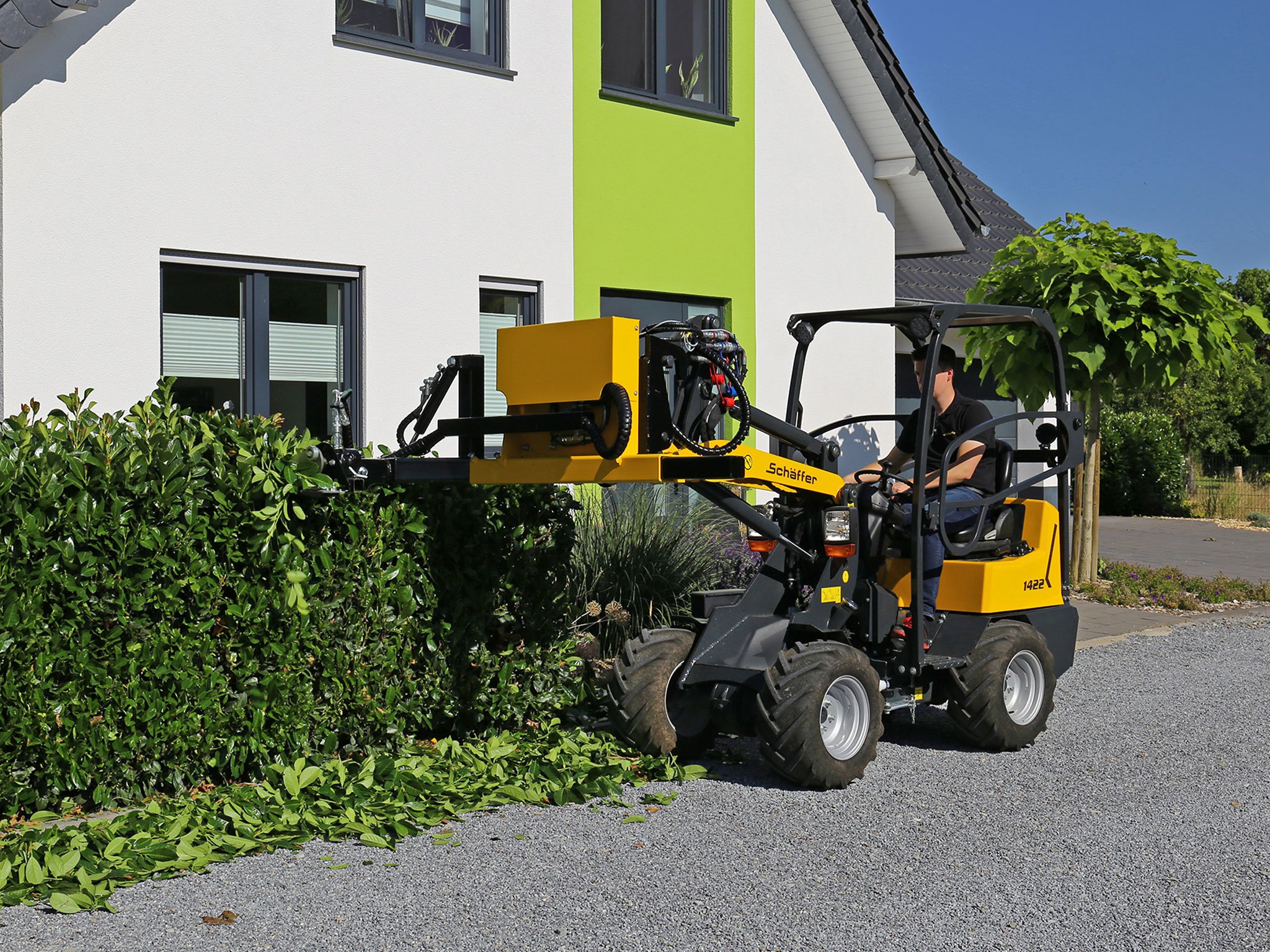

1422 Schäffer 1422 Specifications & Technical Data (2025—2026)

Weight: 1.25t – Standard tyres: 23x8.5-12 SKD – Steering mode: KL – Transport length: 3.05m – Transport width: 0.89m – Transport height: 1.99m

1422

Years of manufacture: 2025—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 1422 Schäffer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 1.25 t

Standard tyres: 23x8.5-12 SKD

Steering mode: KL

Transport length: 3.05 m

Transport width: 0.89 m

Transport height: 1.99 m

Travel speed: 16 km/h

Max. discharge height: 1.51 m

Turning radius outside: 2.222 m

Lifting force: 7.94 kN

Engine manuf.: Kubota

Engine type: D902

Engine power: 16.2 kW

Displacement: 0.898 l

No. of cylinders: 3

Emission level: V

More technical details, like: bucket width, bucket capacity, bucket capacity min., bucket capacity max., model series, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Schäffer 1422 FAQ

When was the Schu00e4ffer 1422 manufactured?

The Schu00e4ffer 1422 was first produced in 2025.

How much does the Schu00e4ffer 1422 wheel loader weigh?

The Schu00e4ffer 1422 wheel loader weighs 1.25 tons.

What are the transport dimensions of the Schu00e4ffer 1422 wheel loader?

The Schu00e4ffer 1422 has a transport length of 3.05 meters, a transport width of 0.89 meters, and a transport height of 1.99 meters.

What is the travel speed of the Schu00e4ffer 1422 wheel loader?

The Schu00e4ffer 1422 wheel loader has a travel speed of 16 km/h.

What are the undercarriage specifications of the Schu00e4ffer 1422 wheel loader?

The Schu00e4ffer 1422 wheel loader is equipped with standard tyres sized 23x8.5-12 SKD.

What are the maneuverability specifications of the Schu00e4ffer 1422 wheel loader?

The Schu00e4ffer 1422 wheel loader has an articulated-frame steering mode and an outside turning radius of 2.222 meters.

What is the power rating of the Schu0000e4ffer 1422 wheel loader?

The available data does not provide a power rating for the Schu0000e4ffer 1422 wheel loader.

What is the material handling capacity of the Schu00e4ffer 1422 in terms of maximum discharge height?

The Schu00e4ffer 1422 has a maximum discharge height of 1.51 meters.

How much is a Schu00e4ffer 1422 Wheel loader (2025u20132025) worth?

The residual value of the Schu00e4ffer 1422 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
