TL 260 Schaeff TL 260 Specifications & Technical Data (2017—2017)

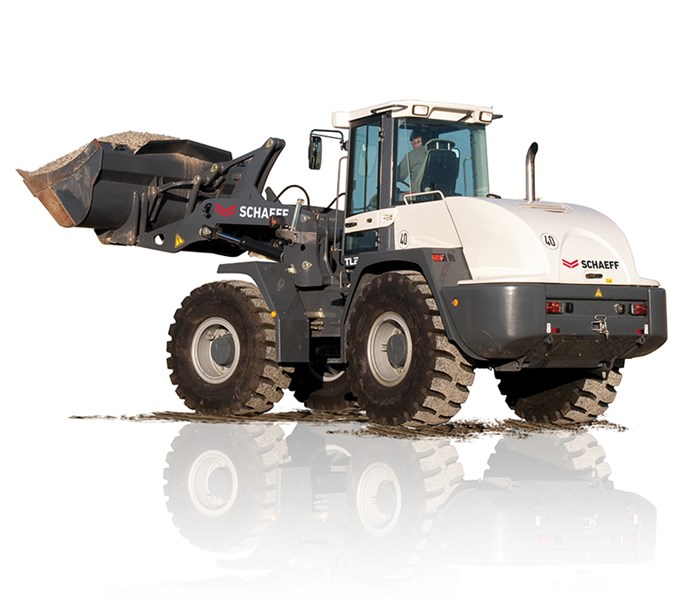

The Schaeff TL 260 is a wheel loader manufactured in 2017. It has a weight of 14.4 tons and a transport length of 7.23 meters. The…

The Schaeff TL 260 is a wheel loader manufactured in 2017. It has a weight of 14.4 tons and a transport length of 7.23 meters. The bucket capacity is 2.5 cubic meters, with a width of 2.5 meters. The maximum discharge height is 2.92 meters. It has a travel speed of 40 km/h and a transport width of 2.5 meters. The transport height is 3.26 meters. The lifting force is 141 kN. The turning radius outside is 6.08 meters. The bucket capacity ranges from a minimum of 2.5 cubic meters to a maximum of 4.5 cubic meters.

Wheel Loaders Schaeff TL 260
Wheel Loaders Schaeff TL 260
Wheel Loaders Schaeff TL 260
Wheel Loaders Schaeff TL 260

Technical specs - TL 260 Schaeff

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
14.4 t
Standard tyres
205.-25
Bucket width
2.5 m
Bucket capacity
2.5 m³
Bucket capacity min.
2.5 m³
Bucket capacity max.
4.5 m³
Steering mode
KL
Transport length
7.23 m
Transport width
2.5 m
Transport height
3.26 m
Travel speed
40 km/h
Max. discharge height
2.92 m
Turning radius outside
6.08 m
Lifting force
141 kN
Engine manuf.
Cummins
Engine type
QSB6.7
Engine power
128 kW
Displacement
6.7 l
Revolutions at max torque
2200 rpm
No. of cylinders
6
Emission level
Euro III a/Tier 3

More technical details, like: model series, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Schaeff TL 260 FAQ

When was the Schaeff TL 260 manufactured?

The Schaeff TL 260 was produced in 2017, with production starting and ending in that year.

How much does the Schaeff TL 260 wheel loader weigh?

The Schaeff TL 260 wheel loader weighs 14.4 tons.

What are the transport dimensions of the Schaeff TL 260 wheel loader?

The Schaeff TL 260 has a transport length of 7.23 meters, a transport width of 2.5 meters, and a transport height of 3.26 meters.

What is the travel speed of the Schaeff TL 260 wheel loader?

The Schaeff TL 260 has a travel speed of 40 km/h.

What are the undercarriage specifications of the Schaeff TL 260?

The Schaeff TL 260 is equipped with standard tyres sized 205.-25.

What are the maneuverability specifications of the Schaeff TL 260 wheel loader?

The Schaeff TL 260 has an articulated-frame steering system and an outside turning radius of 6.08 meters.

What power ratings are available for the Schaeff TL 260 wheel loader?

No power ratings are provided for the Schaeff TL 260 wheel loader in the available data.

What is the maximum discharge height of the Schaeff TL 260?

The Schaeff TL 260 has a maximum discharge height of 2.92 meters.

What are the bucket specifications of the Schaeff TL 260 wheel loader?

The Schaeff TL 260 has a bucket capacity ranging from 2.5 to 4.5 cubic meters, with a bucket width of 2.5 meters.

How much is a Schaeff TL 260 Wheel loader (2017u20132017) worth?

The residual value of the Schaeff TL 260 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
