XS24-26V Pitbull XS24-26V Specifications & Technical Data (2026—2026)

Weight: 2.4t – Steering mode: KL – Transport length: 3.26m – Transport width: 1.4m – Transport height: 2.27m – Travel speed: 25km/h

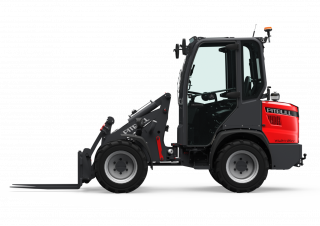

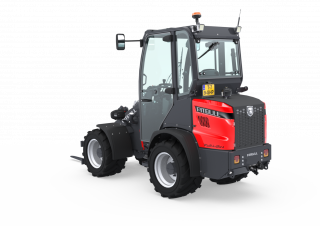

Wheel Loaders Pitbull XS24-26V
Wheel Loaders Pitbull XS24-26V
Wheel Loaders Pitbull XS24-26V
Wheel Loaders Pitbull XS24-26V

Technical specs - XS24-26V Pitbull

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.4 t
Steering mode
KL
Transport length
3.26 m
Transport width
1.4 m
Transport height
2.27 m
Travel speed
25 km/h
Max. discharge height
1.6 m
Turning radius outside
6.25 m
Lifting force
17.65 kN
Model series
X
Engine manuf.
Kubota
Engine type
V1505
Engine power
19 kW
Displacement
1.498 l
Revolutions at max torque
1700 rpm
Max. torque
93 Nm
No. of cylinders
4
Emission level
V

More technical details, like: standard tyres, bucket width, bucket capacity, bucket capacity min., bucket capacity max., dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No
