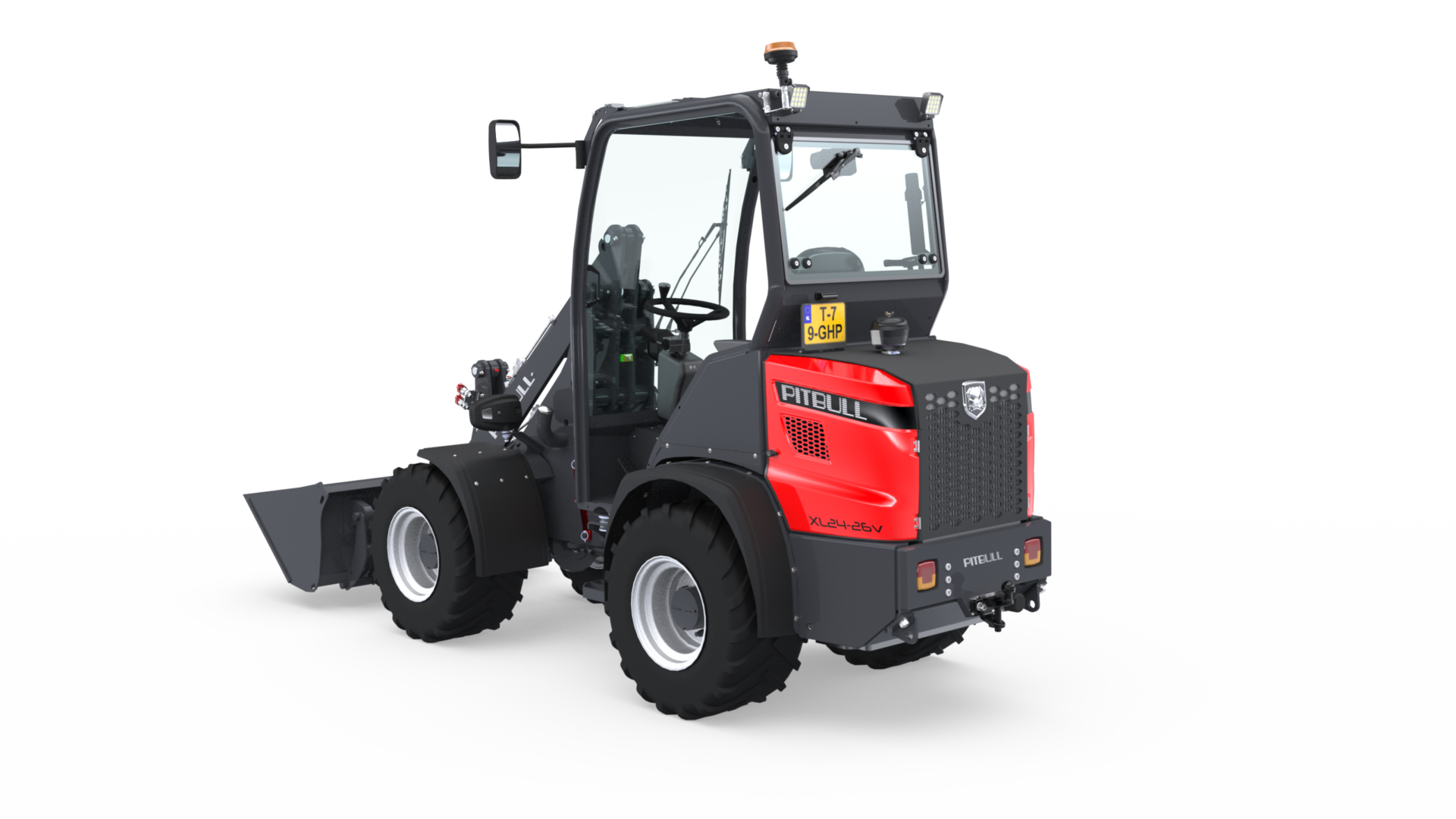

XL24-26V Pitbull XL24-26V Specifications & Technical Data (2024—2026)

Weight: 2.4t – Standard tyres: 400/50-15 – Steering mode: KL – Transport length: 3.1m – Transport width: 1.22m – Transport height: 2.2m

Technical specs - XL24-26V Pitbull

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.4 t
Standard tyres
400/50-15
Steering mode
KL
Transport length
3.1 m
Transport width
1.22 m
Transport height
2.2 m
Travel speed
25 km/h
Max. discharge height
2.25 m
Turning radius outside
2.6 m
Lifting force
17.65 kN
Model series
X
Engine manuf.
Kubota
Engine type
V1505
Engine power
19 kW
Displacement
1.498 l
Revolutions at max torque
1700 rpm
Max. torque
93 Nm
No. of cylinders
4
Emission level
V

More technical details, like: bucket width, bucket capacity, bucket capacity min., bucket capacity max., dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Pitbull XL24-26V FAQ

When was the Pitbull XL24-26V manufactured?

The Pitbull XL24-26V was first produced in 2024.

How much does the Pitbull XL24-26V wheel loader weigh?

The Pitbull XL24-26V wheel loader weighs 2.4 tons.

What are the transport dimensions of the Pitbull XL24-26V wheel loader?

The Pitbull XL24-26V has a transport length of 3.1 meters, a transport width of 1.22 meters, and a transport height of 2.2 meters.

What is the travel speed of the Pitbull XL24-26V wheel loader?

The Pitbull XL24-26V has a travel speed of 25 km/h.

What are the undercarriage tyre specifications of the Pitbull XL24-26V wheel loader?

The Pitbull XL24-26V wheel loader is equipped with standard tyres sized 400/50-15.

What are the outside turning radius and steering mode of the Pitbull XL24-26V wheel loader?

The Pitbull XL24-26V has an outside turning radius of 2.6 meters and uses articulated-frame steering.

What is the power rating of the Pitbull XL24-26V wheel loader?

The available data does not provide a power rating for the Pitbull XL24-26V wheel loader.

What is the maximum discharge height of the Pitbull XL24-26V wheel loader?

The Pitbull XL24-26V wheel loader has a maximum discharge height of 2.25 meters.

How much is a Pitbull XL24-26V Wheel loader (2024u20132025) worth?

The residual value of the Pitbull XL24-26V depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
