PT 82 Palazzani PT 82 Specifications & Technical Data (2009—2014)

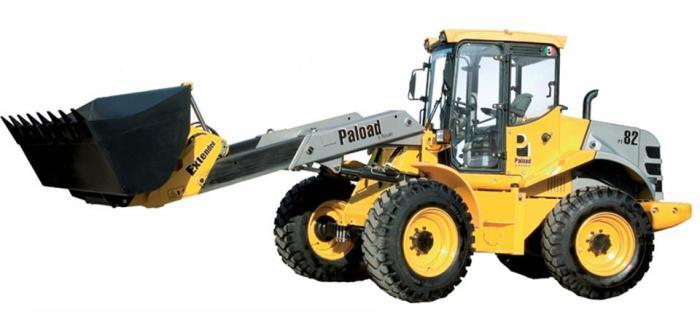

The Palazzani PT 82 is a telescopic wheel loader manufactured by Palazzani from 2009 to 2014. It has a weight of 8.4 tons and a tr…

The Palazzani PT 82 is a telescopic wheel loader manufactured by Palazzani from 2009 to 2014. It has a weight of 8.4 tons and a transport length of 6.23 meters. The bucket capacity is 1.2 cubic meters with a width of 2.2 meters. The maximum discharge height is 4.755 meters and it has a travel speed of 30 km/h. The transport width is 2.2 meters and the transport height is 2.98 meters. The turning radius outside is 5.4 meters. The special equipment of this construction machine is its telescopic feature.

PT 82

Years of manufacture: 2009—2014

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - PT 82 Palazzani

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 8.4 t

Standard tyres: 15.5x25 R

Bucket width: 2.2 m

Bucket capacity: 1.2 m³

Bucket capacity min.: 1.2 m³

Steering mode: KL

Transport length: 6.23 m

Transport width: 2.2 m

Transport height: 2.98 m

Travel speed: 30 km/h

Max. discharge height: 4.755 m

Turning radius outside: 5.4 m

Model series: PT

Engine manuf.: Perkins

Engine type: 1104D-44TA

Engine power: 91.3 kW

Displacement: 4.4 l

Revolutions at max torque: 2200 rpm

More technical details, like: bucket capacity max., lifting force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Palazzani PT 82 FAQ

When was the Palazzani PT 82 manufactured?

The Palazzani PT 82 was manufactured from 2009 to 2014.

How much does the Palazzani PT 82 wheel loader weigh?

The Palazzani PT 82 wheel loader weighs 8.4 tons.

What are the transport dimensions of the Palazzani PT 82 wheel loader?

The Palazzani PT 82 has a transport length of 6.23 meters, a transport width of 2.2 meters, and a transport height of 2.98 meters.

What is the travel speed of the Palazzani PT 82 wheel loader?

The Palazzani PT 82 has a travel speed of 30 km/h.

What are the standard tyre specifications of the Palazzani PT 82 wheel loader?

The Palazzani PT 82 wheel loader has standard tyres sized 15.5x25 R.

What are the maneuverability specifications of the Palazzani PT 82 wheel loader?

The Palazzani PT 82 has an outside turning radius of 5.4 meters and features articulated-frame steering.

What is the maximum discharge height of the Palazzani PT 82 wheel loader?

The Palazzani PT 82 wheel loader has a maximum discharge height of 4.76 meters.

What are the bucket specifications of the Palazzani PT 82 wheel loader?

The Palazzani PT 82 has a bucket capacity of 1.2 cubic meters and a bucket width of 2.2 meters.

How much is a Palazzani PT 82 Wheel loader (2009u20132014) worth?

The residual value of the Palazzani PT 82 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Palazzani PT 82 overview

Engine / Powertrain / Drivetrain

Transmission

Hydrostatic transmission at closed circuit, with automatic adjustment of power, axial pistons pump and engine at variable displacement. Inching pedal control. Automatic selection of working speed. 2 forward and 2 backward speeds, electrical control on the steering wheel and on the joystick.

Hydraulic system

Steering

Servosassisted, with hydoguide and articulated chassis. Total steering angle of 80°. The hydraulic system is Load Sensing equipped.

Operator's cab

Standard Equipment

Loader servo control. Automatic proportional self-locking differential on front and rear axle. Inching pedal control (transmission speed regulation). Forks electro-hydraulic levelling. Hydraulic servobrake. Antipollution tank plugs. Bucket with screwed teeth. Reverse motion alarm. Battery disconnecting switch. Front and rear work lights. Rotating lamp with magnetic fixing. Shock absorbing and regulating "deluxe type" seat with safety belt. Regulating steering wheel. Heating plant. Air filter in aspiration from outside. Rotofrom roof for cabin protection. Front mudguards in rotoform. Unified key for lock and starting. Tool box. Use and maintenance manual, spare parts catalogue. Accessories for road circulation. Road homologation for daily and night circulation. CE Certification.

Bucket and Ground Engaging Tools

Loader

Single servo control lever for arm and bucket. Floating element and electronic levelling of the bucket. "Z" boom kinematism.
