PL 85.2 Palazzani PL 85.2 Specifications & Technical Data (2009—2014)

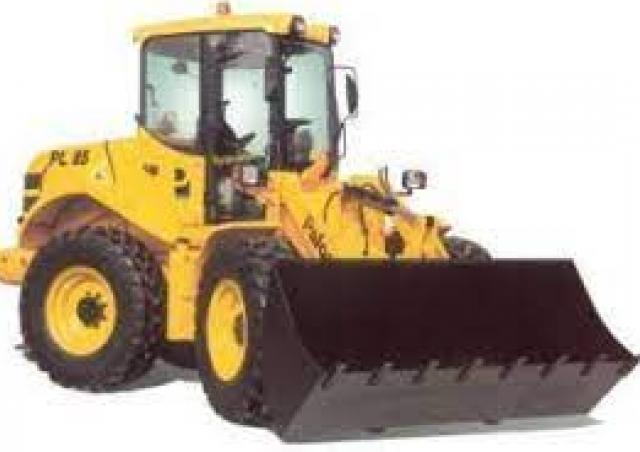

The Palazzani PL 85.2 is a wheel loader manufactured from 2009 to 2014. It has a weight of 7.8 tons and a transport length of 6.02…

The Palazzani PL 85.2 is a wheel loader manufactured from 2009 to 2014. It has a weight of 7.8 tons and a transport length of 6.02 meters. The bucket capacity is 1.5 cubic meters, with a width of 2.4 meters. The maximum discharge height is 3.6 meters. It has a travel speed of 35 km/h and a transport width of 2.4 meters. The transport height is 2.98 meters and the turning radius outside is 5.35 meters. The minimum bucket capacity is also 1.5 cubic meters.

Wheel Loaders Palazzani PL 85.2

Technical specs - PL 85.2 Palazzani

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7.8 t
Standard tyres
17.5x25 R
Bucket width
2.4 m
Bucket capacity
1.5 m³
Bucket capacity min.
1.5 m³
Steering mode
KL
Transport length
6.02 m
Transport width
2.4 m
Transport height
2.98 m
Travel speed
35 km/h
Max. discharge height
3.6 m
Turning radius outside
5.35 m
Model series
PL
Engine manuf.
Perkins
Engine type
1104D-44TA
Engine power
87 kW
Displacement
4.4 l
Revolutions at max torque
2200 rpm

More technical details, like: bucket capacity max., lifting force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Palazzani PL 85.2 FAQ

When was the Palazzani PL 85.2 manufactured?

The Palazzani PL 85.2 was manufactured from 2009 to 2014.

How much does the Palazzani PL 85.2 wheel loader weigh?

The Palazzani PL 85.2 wheel loader weighs 7.8 tons.

What are the transport dimensions of the Palazzani PL 85.2 wheel loader?

The Palazzani PL 85.2 has a transport length of 6.02 meters, a transport width of 2.4 meters, and a transport height of 2.98 meters.

What is the travel speed of the Palazzani PL 85.2 wheel loader?

The Palazzani PL 85.2 has a travel speed of 35 km/h.

What are the standard tyre specifications of the Palazzani PL 85.2 wheel loader?

The Palazzani PL 85.2 wheel loader has standard tyres sized 17.5x25 R.

What are the maneuverability specifications of the Palazzani PL 85.2 wheel loader?

The Palazzani PL 85.2 has an articulated-frame steering system and an outside turning radius of 5.35 meters.

What is the maximum discharge height of the Palazzani PL 85.2 wheel loader?

The Palazzani PL 85.2 has a maximum discharge height of 3.6 meters.

What are the specifications of the bucket on the Palazzani PL 85.2 wheel loader?

The Palazzani PL 85.2 wheel loader has a bucket with a capacity of 1.5 cubic meters and a width of 2.4 meters.
