PL 165 HS Palazzani PL 165 HS Specifications & Technical Data (2018—2021)

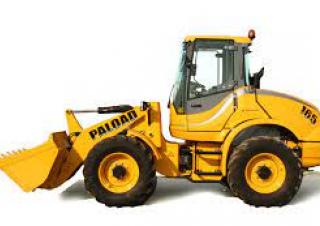

The Palazzani PL 165 HS is a wheel loader manufactured by Palazzani from 2018 to 2021. It has a weight of 5.9 tons and a transport…

The Palazzani PL 165 HS is a wheel loader manufactured by Palazzani from 2018 to 2021. It has a weight of 5.9 tons and a transport length of 5.409 meters. The bucket capacity is 1.15 cubic meters, with a bucket width of 2 meters. The maximum discharge height is 4.167 meters. It has a travel speed of 40 km/h and a transport width of 2 meters. The transport height is 2.75 meters and the turning radius outside is 4.3 meters. The machine is equipped with a quick hitch mechanism.

Wheel Loaders Palazzani PL 165 HS

Technical specs - PL 165 HS Palazzani

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.9 t
Standard tyres
16/70-20
Bucket width
2 m
Bucket capacity
1.15 m³
Bucket capacity min.
1.15 m³
Steering mode
KL
Transport length
5.409 m
Transport width
2 m
Transport height
2.75 m
Travel speed
40 km/h
Max. discharge height
4.167 m
Turning radius outside
4.3 m
Model series
PL
Engine manuf.
Yanmar
Engine type
4TNV98CT
Engine power
55.3 kW
Displacement
3.32 l
Revolutions at max torque
2500 rpm
No. of cylinders
4
Emission level
Tier 4 f

More technical details, like: bucket capacity max., lifting force, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
Yes

Download datasheets (PDF)

Palazzani PL 165 HS FAQ

When was the Palazzani PL 165 HS manufactured?

The Palazzani PL 165 HS was manufactured from 2018 to 2021.

How much does the Palazzani PL 165 HS weigh?

The Palazzani PL 165 HS weighs 5.9 tons.

What are the transport dimensions of the Palazzani PL 165 HS wheel loader?

The Palazzani PL 165 HS has a transport length of 5.41 meters, a transport width of 2 meters, and a transport height of 2.75 meters.

What is the travel speed of the Palazzani PL 165 HS wheel loader?

The Palazzani PL 165 HS has a travel speed of 40 km/h.

What are the undercarriage specifications of the Palazzani PL 165 HS wheel loader?

The Palazzani PL 165 HS is equipped with standard tyres sized 16/70-20.

What are the maneuverability specifications of the Palazzani PL 165 HS wheel loader?

The Palazzani PL 165 HS has an outside turning radius of 4.3 meters and uses articulated-frame steering.

What is the maximum discharge height of the Palazzani PL 165 HS?

The Palazzani PL 165 HS has a maximum discharge height of 4.17 meters.

What are the bucket specifications of the Palazzani PL 165 HS wheel loader?

The Palazzani PL 165 HS has a bucket capacity of 1.15 cubic meters, a minimum bucket capacity of 1.15 cubic meters, and a bucket width of 2 meters.
