PL 155 HS Palazzani PL 155 HS Specifications & Technical Data (2018—2021)

The Palazzani PL 155 HS is a wheel loader manufactured by Palazzani from 2018 to 2021. It has a weight of 5.3 tons and a transport…

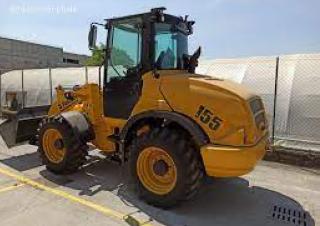

The Palazzani PL 155 HS is a wheel loader manufactured by Palazzani from 2018 to 2021. It has a weight of 5.3 tons and a transport length of 5.409 meters. The bucket capacity is 1 cubic meter with a width of 2 meters. The maximum discharge height is 4.167 meters. It has a travel speed of 40 km/h and a transport width of 2 meters. The transport height is 2.75 meters and the turning radius outside is 4.3 meters. The machine is equipped with a quick hitch mechanism.

PL 155 HS

Years of manufacture: 2018—2021

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - PL 155 HS Palazzani

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5.3 t

Standard tyres: 16/70-20

Bucket width: 2 m

Bucket capacity: 1 m³

Bucket capacity min.: 1 m³

Steering mode: KL

Transport length: 5.409 m

Transport width: 2 m

Transport height: 2.75 m

Travel speed: 40 km/h

Max. discharge height: 4.167 m

Turning radius outside: 4.3 m

Model series: PL

Engine manuf.: Yanmar

Engine type: 4TNV98CT

Engine power: 55.3 kW

Displacement: 3.32 l

Revolutions at max torque: 2500 rpm

No. of cylinders: 4

Emission level: Tier 4 f

More technical details, like: bucket capacity max., lifting force, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: Yes

Download datasheets (PDF)

PL 155 HS Palazzani Specification for Europe (EN)

Palazzani PL 155 HS FAQ

When was the Palazzani PL 155 HS manufactured?

The Palazzani PL 155 HS was manufactured from 2018 to 2021.

How much does the Palazzani PL 155 HS wheel loader weigh?

The Palazzani PL 155 HS wheel loader weighs 5.3 tons.

What are the transport dimensions of the Palazzani PL 155 HS wheel loader?

The Palazzani PL 155 HS has a transport length of 5.41 meters, a transport width of 2 meters, and a transport height of 2.75 meters.

What is the travel speed of the Palazzani PL 155 HS wheel loader?

The Palazzani PL 155 HS has a travel speed of 40 km/h.

What are the undercarriage tyre specifications of the Palazzani PL 155 HS wheel loader?

The Palazzani PL 155 HS is equipped with standard tyres sized 16/70-20.

What are the maneuverability specifications of the Palazzani PL 155 HS wheel loader?

The Palazzani PL 155 HS has an articulated-frame steering system and an outside turning radius of 4.3 meters.

What is the maximum discharge height of the Palazzani PL 155 HS wheel loader?

The Palazzani PL 155 HS has a maximum discharge height of 4.17 meters.

What are the specifications of the bucket on the Palazzani PL 155 HS wheel loader?

The Palazzani PL 155 HS wheel loader has a bucket capacity of 1 cubic meter, a minimum bucket capacity of 1 cubic meter, and a bucket width of 2 meters.
