PL 1105 Palazzani PL 1105 Specifications & Technical Data (2015—2021)

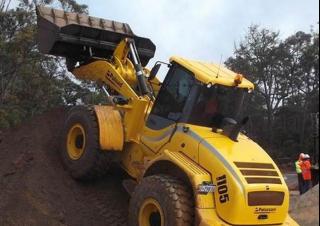

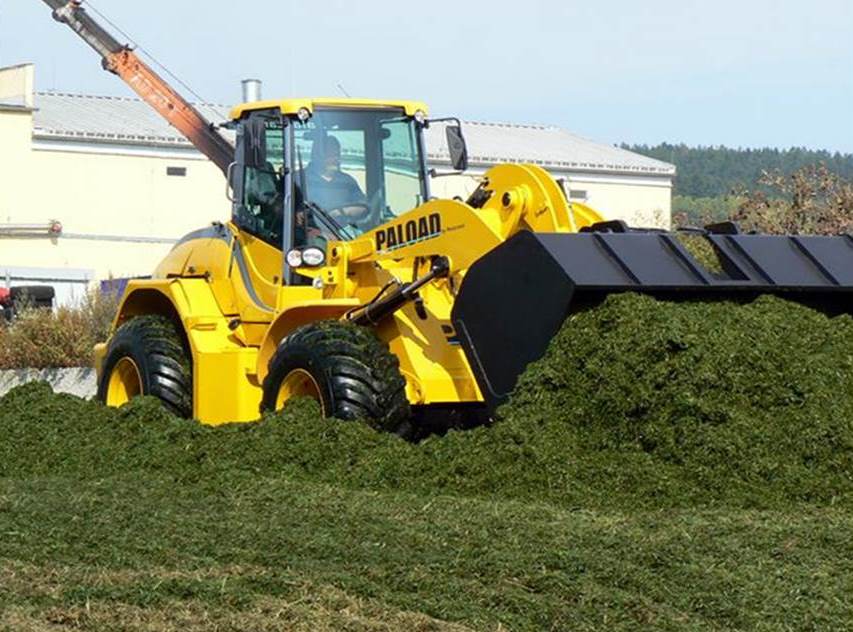

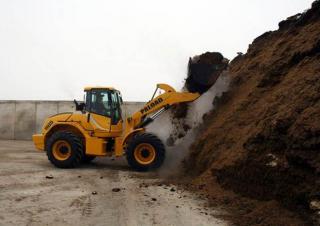

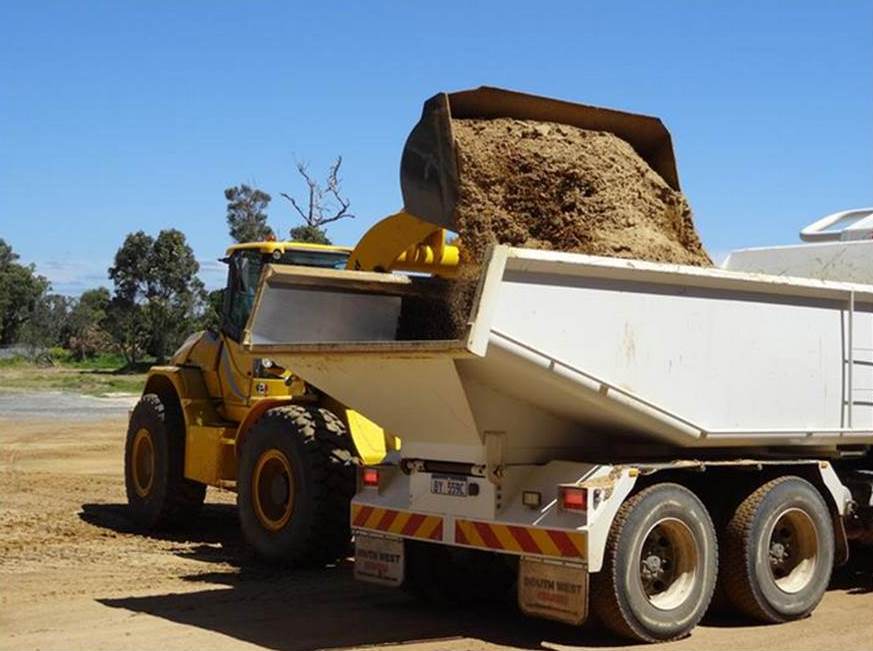

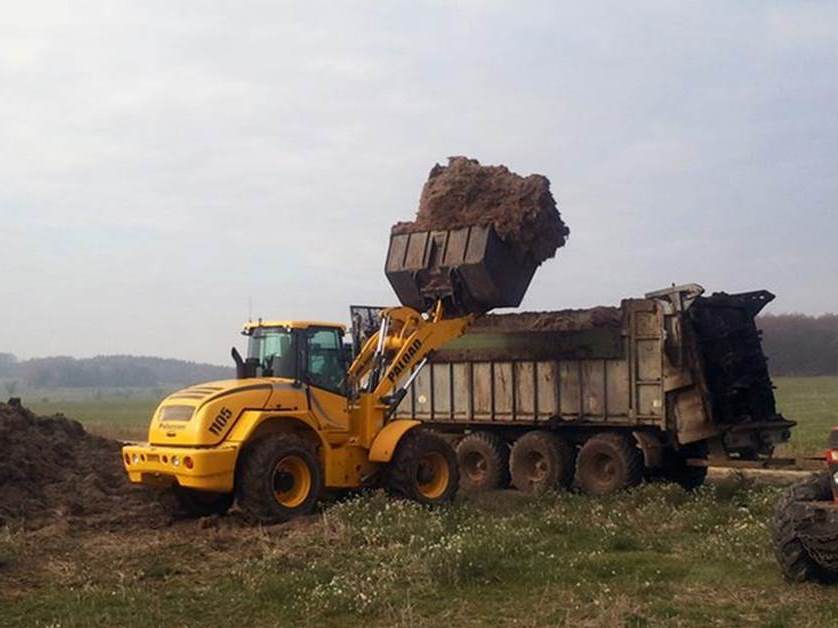

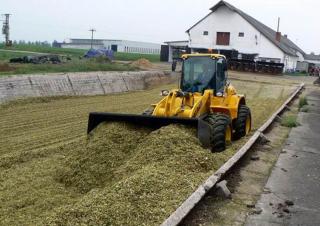

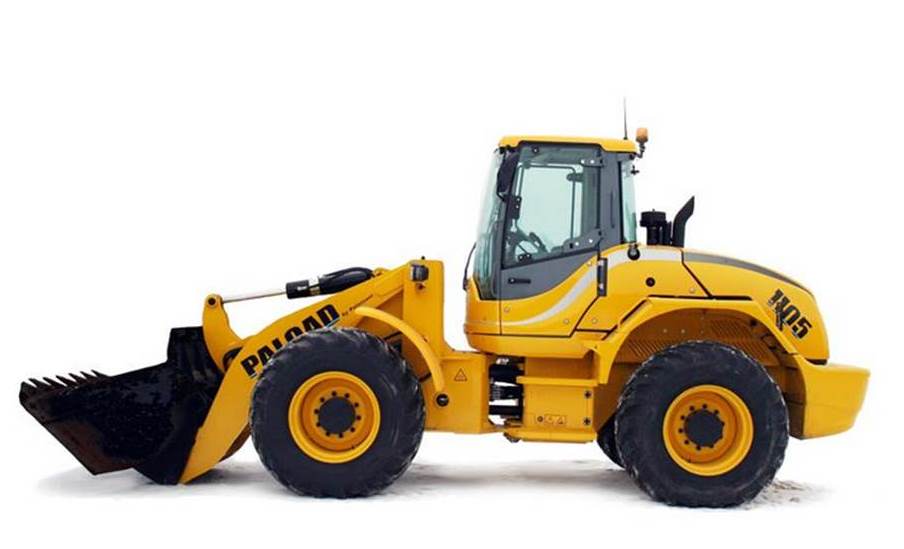

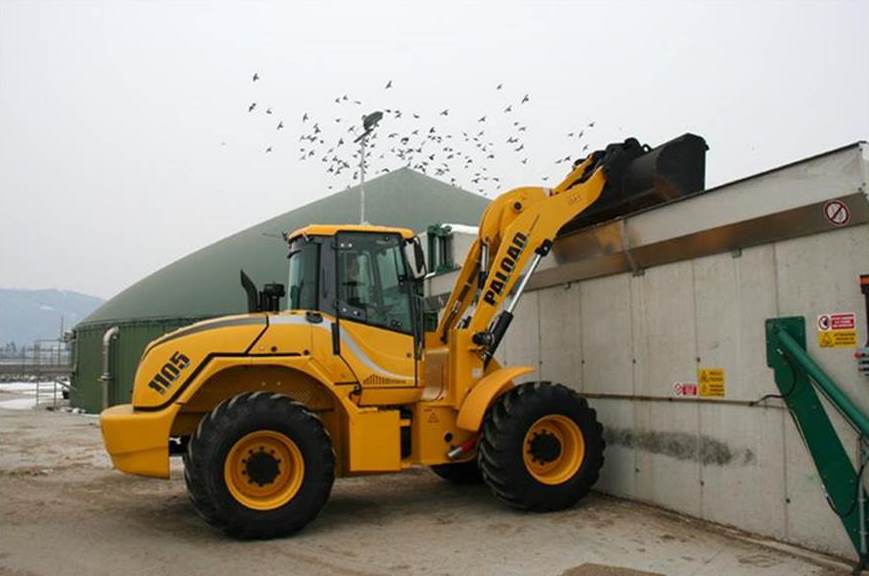

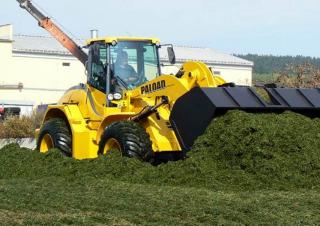

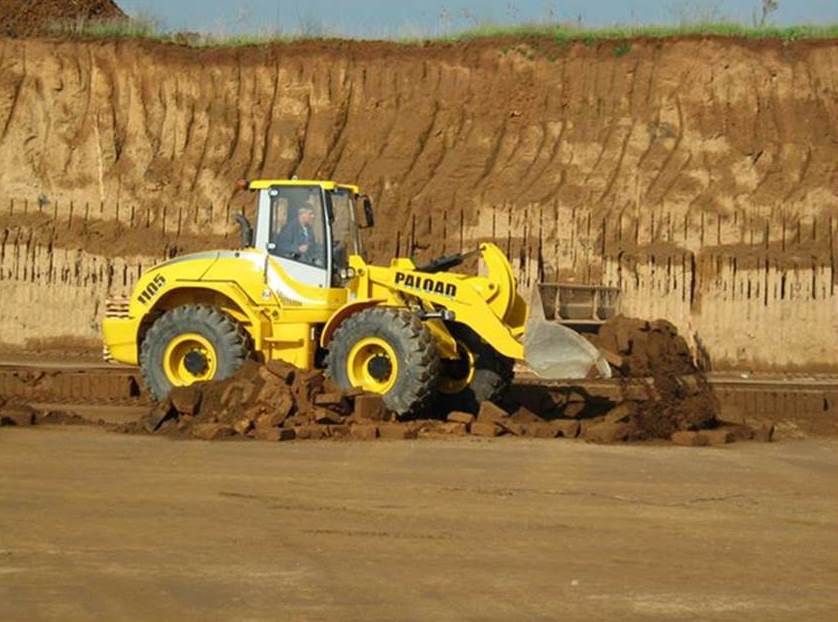

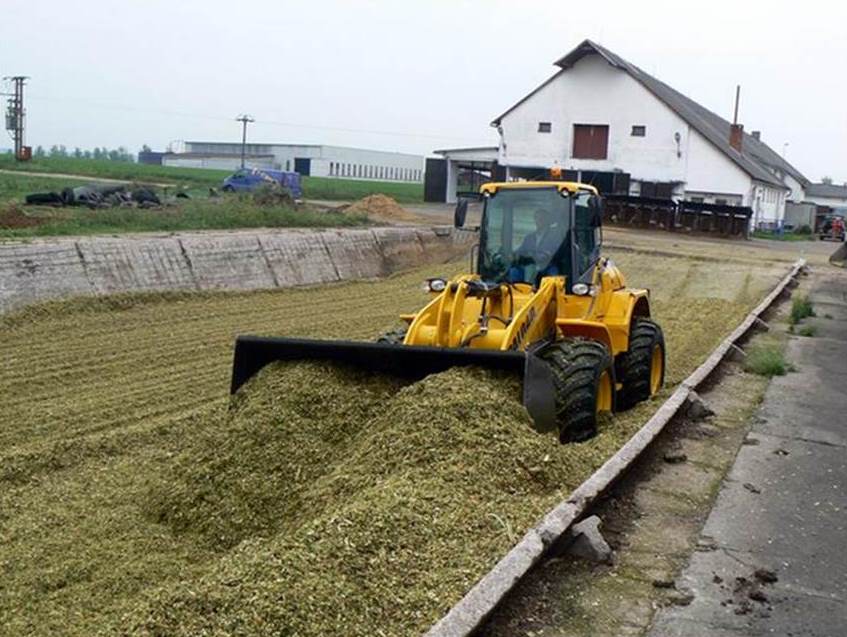

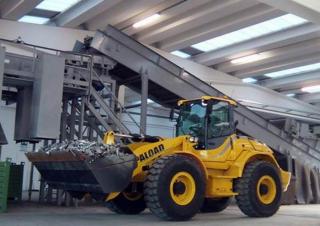

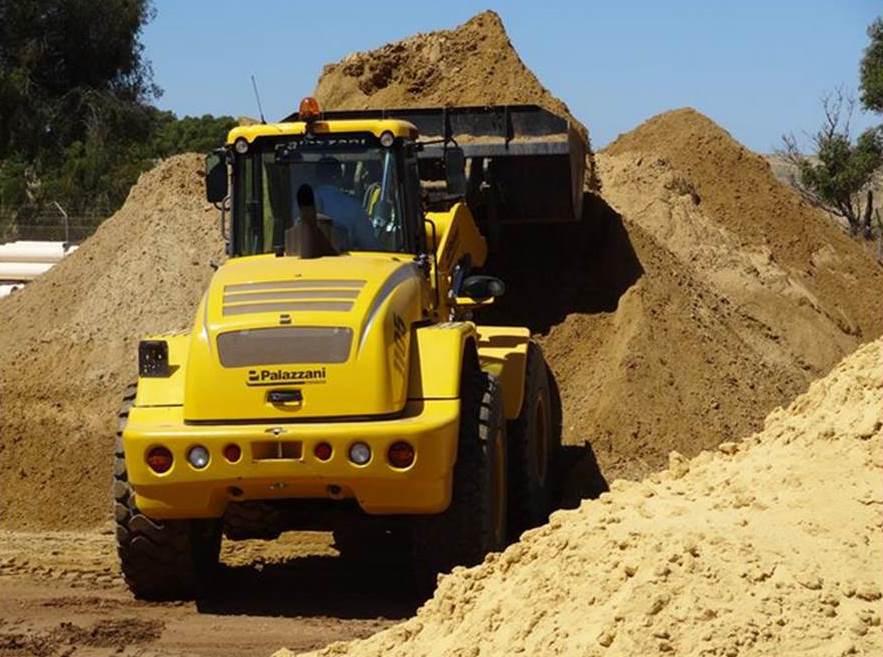

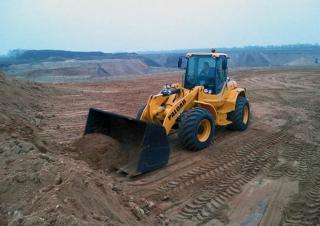

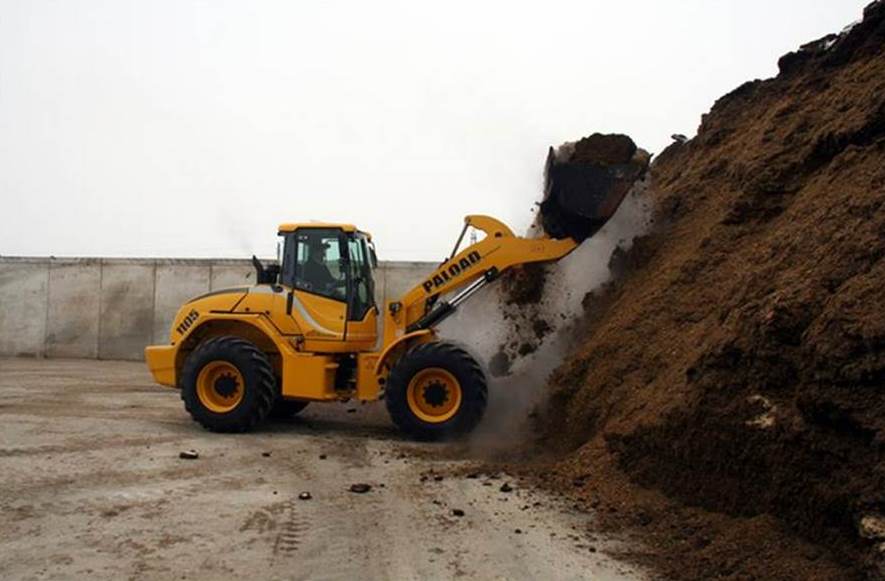

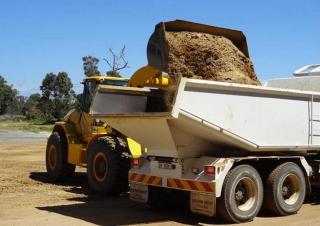

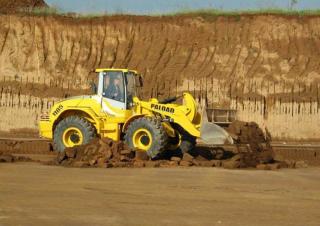

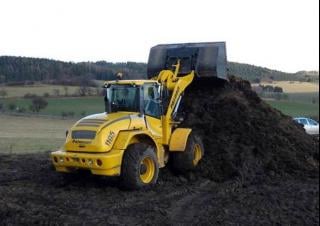

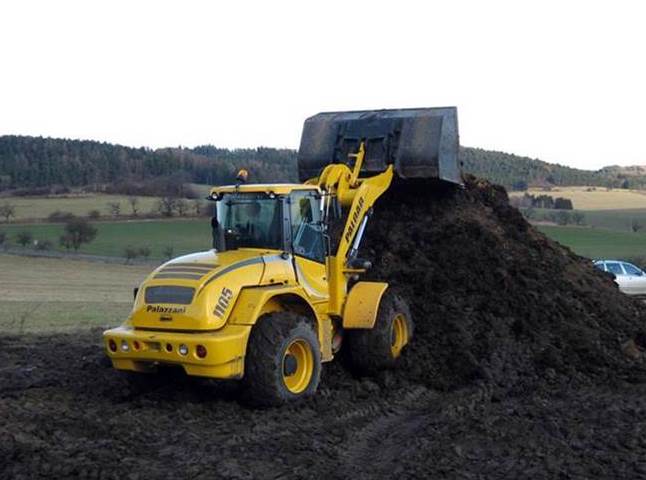

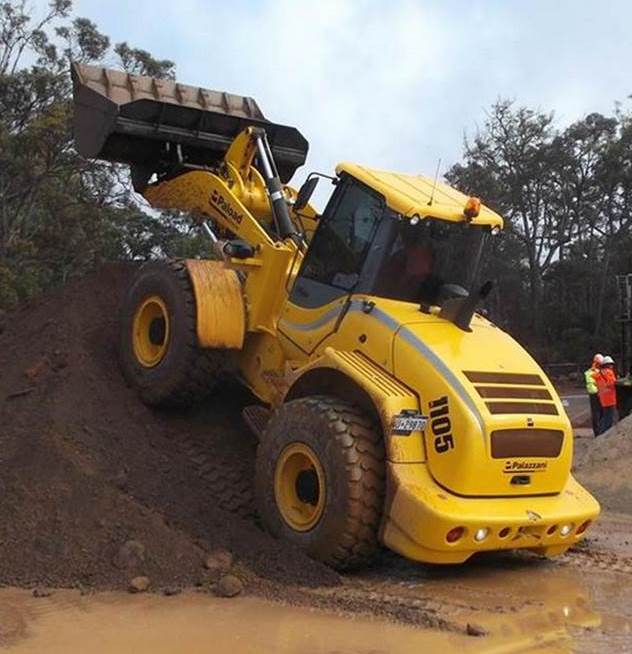

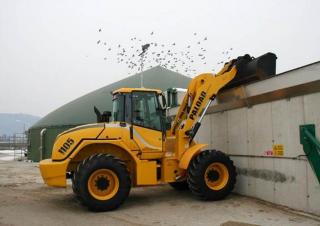

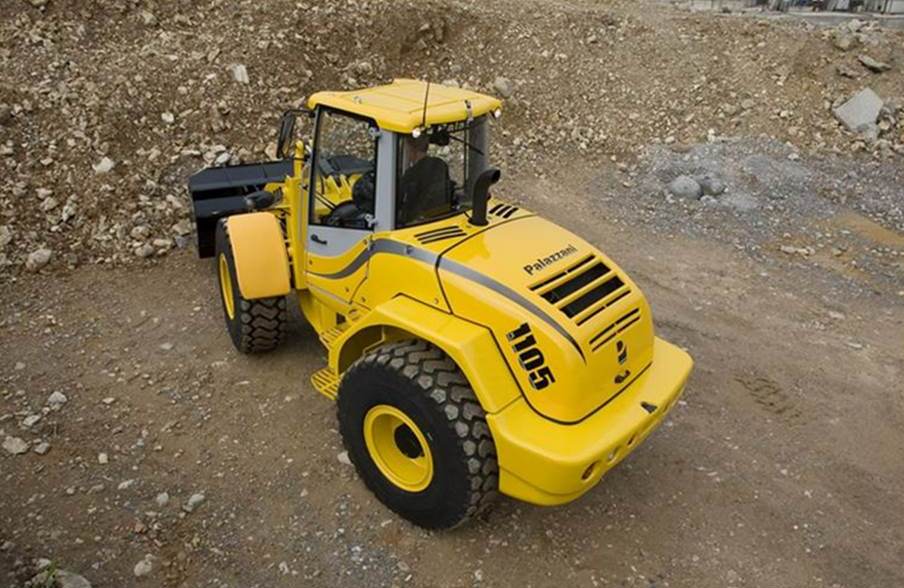

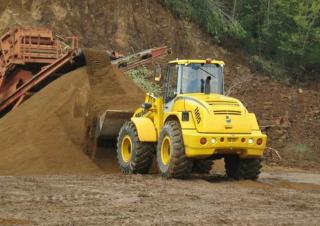

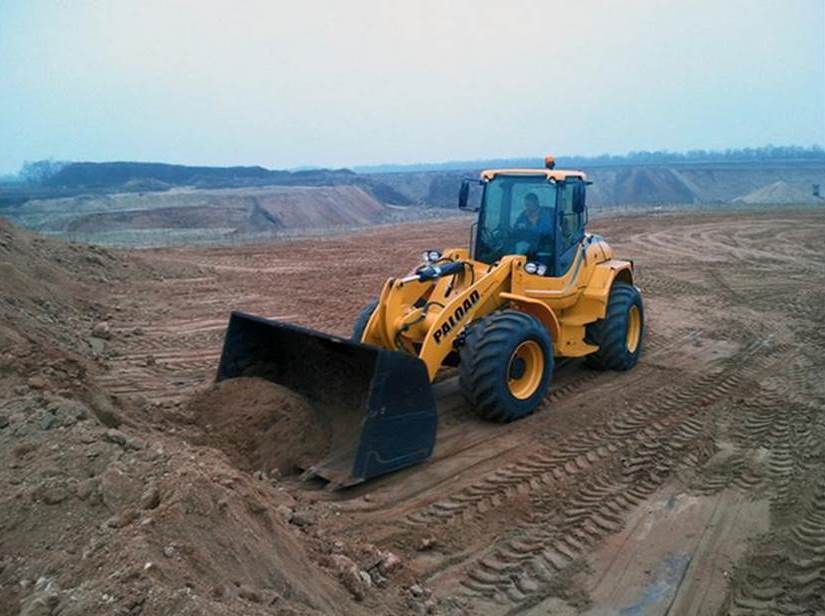

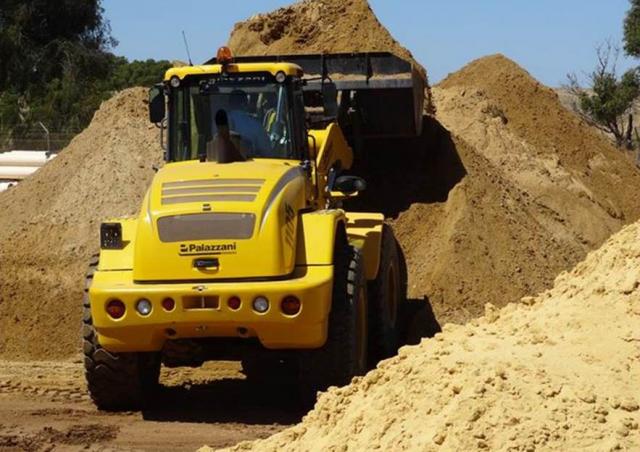

The Palazzani PL 1105 is a wheel loader manufactured by Palazzani from 2015 to 2021. It has a weight of 11.85 tons and a transport…

The Palazzani PL 1105 is a wheel loader manufactured by Palazzani from 2015 to 2021. It has a weight of 11.85 tons and a transport length of 6.635 meters. The bucket capacity is 2.1 cubic meters, with a bucket width of 2.54 meters. The maximum discharge height is 3.85 meters, and it has a travel speed of 40 km/h. The transport width is 2.54 meters, and the transport height is 3.065 meters. The turning radius outside is 5.527 meters. The machine is equipped with a quick hitch mechanism.

PL 1105

Years of manufacture: 2015—2021

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - PL 1105 Palazzani

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 11.85 t

Standard tyres: 20.5x25

Bucket width: 2.54 m

Bucket capacity: 2.1 m³

Bucket capacity min.: 2.1 m³

Steering mode: KL

Transport length: 6.635 m

Transport width: 2.54 m

Transport height: 3.065 m

Travel speed: 40 km/h

Max. discharge height: 3.85 m

Turning radius outside: 5.527 m

Model series: PL

Engine manuf.: JCB

Engine type: 448TA 4F

Engine power: 108 kW

Emission level: Tier 4 f

More technical details, like: bucket capacity max., lifting force, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: Yes

Download datasheets (PDF)

Palazzani PL 1105 FAQ

When was the Palazzani PL 1105 manufactured?

The Palazzani PL 1105 was manufactured from 2015 to 2021.

How much does the Palazzani PL 1105 weigh?

The Palazzani PL 1105 weighs 11.85 tons.

What are the transport dimensions of the Palazzani PL 1105 wheel loader?

The Palazzani PL 1105 has a transport length of 6.64 meters, a transport width of 2.54 meters, and a transport height of 3.07 meters.

What is the travel speed of the Palazzani PL 1105 wheel loader?

The Palazzani PL 1105 has a travel speed of 40 km/h.

What are the undercarriage tyre specifications of the Palazzani PL 1105 wheel loader?

The Palazzani PL 1105 wheel loader is equipped with standard tyres sized 20.5x25.

What are the maneuverability specifications of the Palazzani PL 1105 wheel loader?

The Palazzani PL 1105 has an articulated-frame steering system and an outside turning radius of 5.527 meters.

What is the maximum discharge height of the Palazzani PL 1105 wheel loader?

The Palazzani PL 1105 has a maximum discharge height of 3.85 meters.

What are the bucket specifications of the Palazzani PL 1105 wheel loader?

The Palazzani PL 1105 wheel loader has a bucket capacity of 2.1 cubic meters, a minimum bucket capacity of 2.1 cubic meters, and a bucket width of 2.54 meters.

How much is a Palazzani PL 1105 Wheel loader (2015u20132021) worth?

The residual value of the Palazzani PL 1105 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Palazzani PL 1105 overview

Engine / Powertrain / Drivetrain

Transmission

High-pressure, closed-loop hydrostatic transmission, with automatic adjustment of power, pump at variable capacity, n°2 hydraulic motors with axial pistons at variable displacement. Including hydraulic control for traction regulation, modulating, integrated in the service brake pedal. 3 speeds forwards and 3 speeds backwards with electric control on the steering wheel and on the joystick with the possibility to change speed and reverse in motion and under load (HYDROSTATIC SHIFT).

Hydraulic system

Steering

Servo assisted, with steer motor at double displacement and articulated chassis. Total steering angle of 80°. The steering hydraulic system is Load Sensing equipped with valve on the primary pump.
