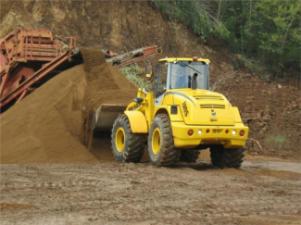

PL 1105 Palazzani PL 1105 Specifications & Technical Data (2008—2014)

Model rating: 10,00 / 10

The Palazzani PL 1105 is a wheel loader manufactured from 2008 to 2014. It has a weight of 11.2 tons and a transport length of 6.5…

The Palazzani PL 1105 is a wheel loader manufactured from 2008 to 2014. It has a weight of 11.2 tons and a transport length of 6.5 meters. The bucket capacity is 2.1 cubic meters, with a width of 2.54 meters. The maximum discharge height is 3.85 meters. It has a travel speed of 40 km/h and a transport width of 2.9 meters. The transport height is 3 meters and the turning radius outside is 5.47 meters. The minimum bucket capacity is also 2.1 cubic meters.

PL 1105

Years of manufacture: 2008—2014

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - PL 1105 Palazzani

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 11.2 t

Standard tyres: 20.5x25

Bucket width: 2.54 m

Bucket capacity: 2.1 m³

Bucket capacity min.: 2.1 m³

Steering mode: KL

Transport length: 6.5 m

Transport width: 2.9 m

Transport height: 3 m

Travel speed: 40 km/h

Max. discharge height: 3.85 m

Turning radius outside: 5.47 m

Model series: PL

Engine manuf.: Perkins

Engine type: 1104D-E44TA

Engine power: 109 kW

Displacement: 4.4 l

Revolutions at max torque: 2200 rpm

More technical details, like: bucket capacity max., lifting force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Palazzani PL 1105 FAQ

When was the Palazzani PL 1105 manufactured?

The Palazzani PL 1105 was manufactured from 2008 to 2014.

How much does the Palazzani PL 1105 weigh?

The Palazzani PL 1105 weighs 11.2 tons.

What are the transport dimensions of the Palazzani PL 1105 wheel loader?

The Palazzani PL 1105 has a transport length of 6.5 meters, a transport width of 2.9 meters, and a transport height of 3 meters.

What is the travel speed of the Palazzani PL 1105 wheel loader?

The Palazzani PL 1105 has a travel speed of 40 km/h.

What is the standard tyre size of the Palazzani PL 1105?

The Palazzani PL 1105 has standard tyres sized 20.5x25.

What are the maneuverability specifications of the Palazzani PL 1105 wheel loader?

The Palazzani PL 1105 has an articulated-frame steering system and an outside turning radius of 5.47 meters.

What is the maximum discharge height of the Palazzani PL 1105?

The Palazzani PL 1105 has a maximum discharge height of 3.85 meters.

What are the specifications of the bucket on the Palazzani PL 1105 wheel loader?

The Palazzani PL 1105 wheel loader has a bucket capacity of 2.1 cubic meters, a minimum bucket capacity of 2.1 cubic meters, and a bucket width of 2.54 meters.
