W300C New Holland W300C Specifications & Technical Data (2011—2026)

The New Holland W 300 C is a wheel loader manufactured by New Holland since 2011. It has a weight of 27 tons and a bucket width of…

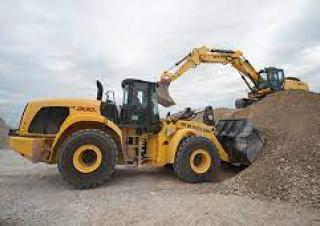

The New Holland W 300 C is a wheel loader manufactured by New Holland since 2011. It has a weight of 27 tons and a bucket width of 3 meters. The maximum discharge height is 4 meters, and it can travel at a speed of 37 km/h. The transport width is 2 meters, and the transport height is 3 meters. The turning radius outside is 6 meters. The bucket capacity ranges from a minimum of 3 cubic meters to a maximum of 5 cubic meters. It is equipped with a diesel particulate filter.

W300C

Years of manufacture: 2011—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - W300C New Holland

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 27.3 t

Standard tyres: 26.5R25

Bucket width: 3.2 m

Bucket capacity min.: 3.31 m³

Bucket capacity max.: 5 m³

Transport width: 2.99 m

Transport height: 3.57 m

Travel speed: 37.4 km/h

Max. discharge height: 4.44 m

Turning radius outside: 6.37 m

Engine manuf.: New Holland

Engine type: F2CFE614B

Engine power: 259 kW

Displacement: 8.7 l

Revolutions at max torque: 1200 rpm

Max. torque: 1604 Nm

No. of cylinders: 6

Cylinder bore x stroke: 177 x 135 mm

Emission level: Tier 4

More technical details, like: bucket capacity, steering mode, transport length, lifting force, model series, dimension lxwxh are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: Yes
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

W300C New Holland Specification for North America (EN)

New Holland W300C FAQ

When was the New Holland W300 C manufactured?

The New Holland W300 C was first produced in 2011.

How much does the New Holland W300 C weigh?

The New Holland W300 C weighs 27.3 tons.

What are the transport dimensions of the New Holland W300 C wheel loader?

The New Holland W300 C has a transport width of 2.99 meters and a transport height of 3.57 meters.

What is the travel speed of the New Holland W300 C wheel loader?

The New Holland W300 C has a travel speed of 37.4 km/h.

What are the undercarriage tyre specifications of the New Holland W300 C wheel loader?

The New Holland W300 C wheel loader is equipped with standard tyres sized 26.5R25.

What is the turning radius of the New Holland W300 C wheel loader?

The New Holland W300 C has an outside turning radius of 6.37 meters.

What is the material handling capacity of the New Holland W300 C in terms of discharge height?

The New Holland W300 C has a maximum discharge height of 4.44 meters.

What are the bucket specifications of the New Holland W300 C wheel loader?

The New Holland W300 C wheel loader has a bucket width of 3.2 meters, with a maximum capacity of 5 cubic meters and a minimum capacity of 3.31 cubic meters.
