W190 C New Holland W190 C Specifications & Technical Data (2012—2026)

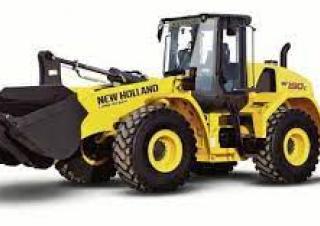

The New Holland W 190 C is a wheel loader manufactured by New Holland since 2012. It has a weight of 18 tons and a bucket width of…

The New Holland W 190 C is a wheel loader manufactured by New Holland since 2012. It has a weight of 18 tons and a bucket width of 2 meters. The maximum discharge height is 4 meters, and it can travel at a speed of 40 km/h. The transport width is 2 meters, and the transport height is 3 meters. The turning radius outside is 6 meters. The bucket capacity ranges from a minimum of 2 cubic meters to a maximum of 3 cubic meters. It is equipped with a diesel particulate filter.

W190 C

Years of manufacture: 2012—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - W190 C New Holland

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 18.046 t

Standard tyres: 23.5R25

Bucket width: 2.95 m

Bucket capacity min.: 2.5 m³

Bucket capacity max.: 3.42 m³

Transport width: 2.88 m

Transport height: 3.45 m

Travel speed: 40 km/h

Max. discharge height: 4.56 m

Turning radius outside: 6.9 m

Engine manuf.: FPT

Engine type: F4HFE613X

Engine power: 172 kW

Displacement: 6.7 l

Revolutions at max torque: 1300 rpm

Max. torque: 1184 Nm

No. of cylinders: 6

Emission level: Stage IIIB

More technical details, like: bucket capacity, steering mode, transport length, lifting force, model series, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: Yes
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

W190 C New Holland Specification for North America (EN)

New Holland W190 C FAQ

When was the New Holland W190 C manufactured?

The New Holland W190 C was first produced in 2012.

How much does the New Holland W190 C wheel loader weigh?

The New Holland W190 C wheel loader weighs 18.05 tons.

What are the transport dimensions of the New Holland W190 C wheel loader?

The New Holland W190 C has a transport width of 2.88 meters and a transport height of 3.45 meters.

What is the travel speed of the New Holland W190 C wheel loader?

The New Holland W190 C has a travel speed of 40 km/h.

What is the standard tyre size of the New Holland W190 C wheel loader?

The New Holland W190 C wheel loader has standard tyres sized 23.5R25.

What is the turning radius of the New Holland W190 C wheel loader?

The New Holland W190 C has an outside turning radius of 6.9 meters.

What is the maximum discharge height of the New Holland W190 C wheel loader?

The New Holland W190 C has a maximum discharge height of 4.56 meters.

What are the bucket specifications of the New Holland W190 C wheel loader?

The New Holland W190 C wheel loader has a bucket width of 2.95 meters, with a maximum capacity of 3.42 cubic meters and a minimum capacity of 2.5 cubic meters.
