W 270 New Holland W 270 Specifications & Technical Data (2005—2011)

The New Holland W 270 is a wheel loader manufactured by New Holland from 2005 to 2011. It has a weight of 23 tons and a bucket wid…

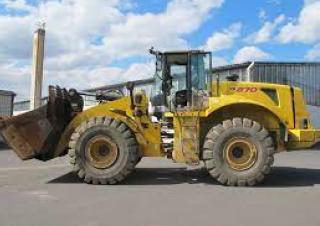

The New Holland W 270 is a wheel loader manufactured by New Holland from 2005 to 2011. It has a weight of 23 tons and a bucket width of 3 meters. The maximum discharge height is 3 meters, and it can travel at a speed of 39 km/h. The transport width is 2 meters, and the transport height is 3 meters. The turning radius outside is 7 meters. The bucket capacity ranges from a minimum of 4 cubic meters to a maximum of 4 cubic meters. It is equipped with a diesel particulate filter.

W 270

Years of manufacture: 2005—2011

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - W 270 New Holland

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 23.66 t

Standard tyres: 26.5-25

Bucket width: 3.15 m

Bucket capacity min.: 4 m³

Bucket capacity max.: 4.6 m³

Transport width: 2.96 m

Transport height: 3.587 m

Travel speed: 39.8 km/h

Max. discharge height: 3.49 m

Turning radius outside: 7 m

Engine manuf.: Cummins

Engine type: QSM11

Engine power: 231 kW

Displacement: 10.8 l

Revolutions at max torque: 1200 rpm

Max. torque: 145 Nm

No. of cylinders: 6

Cylinder bore x stroke: 125 x 147 mm

Emission level: Stage II

More technical details, like: bucket capacity, steering mode, transport length, lifting force, model series, dimension lxwxh are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: Yes
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

W 270 New Holland Specification for North America (EN)

New Holland W 270 FAQ

When was the New Holland W 270 manufactured?

The New Holland W 270 was manufactured from 2005 to 2011.

How much does the New Holland W 270 wheel loader weigh?

The New Holland W 270 wheel loader weighs 23.66 tons.

What are the transport dimensions of the New Holland W 270?

The New Holland W 270 has a transport width of 2.96 meters and a transport height of 3.59 meters.

What is the travel speed of the New Holland W 270 wheel loader?

The New Holland W 270 has a travel speed of 39.8 km/h.

What is the standard tyre size of the New Holland W 270?

The New Holland W 270 has standard tyres sized 26.5-25.

What is the outside turning radius of the New Holland W 270 wheel loader?

The New Holland W 270 wheel loader has an outside turning radius of 7 meters.

What is the material handling capacity of the New Holland W 270 in terms of discharge height?

The New Holland W 270 has a maximum discharge height of 3.49 meters for material handling.

What are the bucket specifications of the New Holland W 270 wheel loader?

The New Holland W 270 wheel loader has a bucket with a maximum capacity of 4.6 cubic meters, a minimum capacity of 4 cubic meters, and a width of 3.15 meters.

How much is a New Holland W 270 Wheel loader (2005u20132011) worth?

The residual value of the New Holland W 270 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
