LW230 New Holland LW230 Specifications & Technical Data (1999—2026)

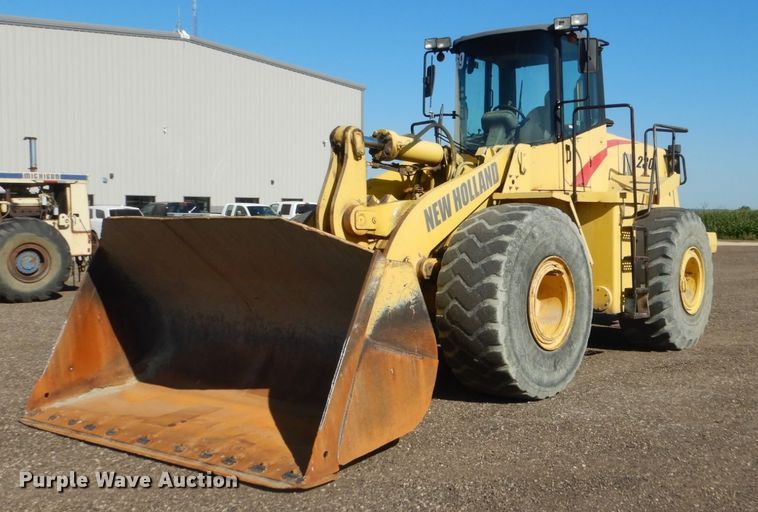

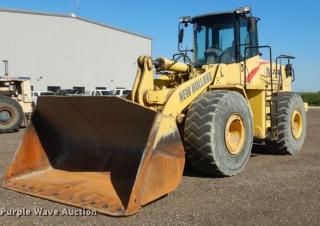

The New Holland LW 230 is a wheel loader manufactured since 1999. It has a weight of 19 tons and a bucket capacity of 3 cubic mete…

The New Holland LW 230 is a wheel loader manufactured since 1999. It has a weight of 19 tons and a bucket capacity of 3 cubic meters, with a bucket width of 3 meters. The maximum discharge height is 4 meters, and it can travel at a speed of 40 km/h. The transport width is 2 meters, and the transport height is 3 meters. The turning radius outside is 6 meters. Special equipment includes air conditioning and a diesel particulate filter.

Wheel Loaders New Holland LW230

Technical specs - LW230 New Holland

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
19.9 t
Standard tyres
26.5 x 25
Bucket width
3.01 m
Bucket capacity
3.6 m³
Bucket capacity max.
3.6 m³
Transport width
2.875 m
Transport height
3.5 m
Travel speed
40 km/h
Max. discharge height
4.23 m
Turning radius outside
6.7 m
Engine manuf.
Cummins
Engine type
6CT 8.3
Engine power
175 kW
Displacement
8.3 l
Revolutions at max torque
1500 rpm
Max. torque
716 Nm
No. of cylinders
6
Cylinder bore x stroke
114 x 135 mm

More technical details, like: bucket capacity min., steering mode, transport length, lifting force, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
Yes
Swing loader
No
telescopic
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

New Holland LW230 FAQ

When was the New Holland LW230 manufactured?

The New Holland LW230 was first produced in 1999.

How much does the New Holland LW230 weigh?

The New Holland LW230 weighs 19.9 tons.

What are the transport dimensions of the New Holland LW230 wheel loader?

The New Holland LW230 has a transport width of 2.88 meters and a transport height of 3.5 meters.

What is the travel speed of the New Holland LW230 wheel loader?

The New Holland LW230 wheel loader has a travel speed of 40 km/h.

What are the undercarriage specifications of the New Holland LW230 wheel loader?

The New Holland LW230 wheel loader is equipped with standard tyres sized 26.5 x 25.

What is the turning radius of the New Holland LW230 wheel loader?

The New Holland LW230 has an outside turning radius of 6.7 meters.

What is the material handling capacity of the New Holland LW230 in terms of discharge height?

The New Holland LW230 has a maximum discharge height of 4.23 meters.

What are the bucket specifications of the New Holland LW230 wheel loader?

The New Holland LW230 has a bucket capacity of 3.6 cubic meters, a maximum bucket capacity of 3.6 cubic meters, and a bucket width of 3.01 meters.
