AL 506 Mustang AL 506 Specifications & Technical Data (2008—2020)

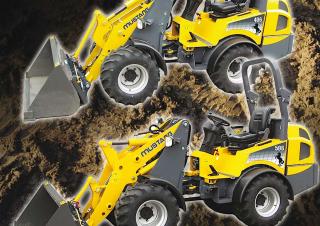

The Mustang AL 506 is a wheel loader manufactured by Mustang from 2008 to 2020. It has a weight of 3.05 tons and a transport lengt…

The Mustang AL 506 is a wheel loader manufactured by Mustang from 2008 to 2020. It has a weight of 3.05 tons and a transport length of 4.49 meters. The bucket capacity is 0.5 cubic meters with a bucket width of 1.4 meters. The maximum discharge height is 2.21 meters and it has a travel speed of 20 km/h. The transport width and height are both 1.4 meters and 2.29 meters respectively. The turning radius outside is 1.39 meters. The machine is equipped with a quick hitch mechanism.

AL 506

Years of manufacture: 2008—2020

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - AL 506 Mustang

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 3.05 t

Standard tyres: 15.0x55-17 AS

Bucket width: 1.4 m

Bucket capacity: 0.5 m³

Bucket capacity min.: 0.5 m³

Steering mode: KL

Transport length: 4.49 m

Transport width: 1.4 m

Transport height: 2.29 m

Travel speed: 20 km/h

Max. discharge height: 2.21 m

Turning radius outside: 1.39 m

Model series: AL

Engine manuf.: Yanmar

Engine type: 4TNV88

Engine power: 35 kW

Emission level: Tier 3 a

More technical details, like: bucket capacity max., lifting force, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: Yes

Download datasheets (PDF)

AL 506 Mustang Specification for Europe (DE)

Mustang AL 506 FAQ

When was the Mustang AL 506 manufactured?

The Mustang AL 506 was manufactured from 2008 to 2020.

How much does the Mustang AL 506 wheel loader weigh?

The Mustang AL 506 wheel loader weighs 3.05 tons.

What are the transport dimensions of the Mustang AL 506 wheel loader?

The Mustang AL 506 has a transport length of 4.49 meters, a transport width of 1.4 meters, and a transport height of 2.29 meters.

What is the travel speed of the Mustang AL 506 wheel loader?

The Mustang AL 506 wheel loader has a travel speed of 20 km/h.

What are the undercarriage specifications of the Mustang AL 506 wheel loader?

The Mustang AL 506 wheel loader is equipped with standard tyres sized 15.0x55-17 AS.

What are the maneuverability specifications of the Mustang AL 506 wheel loader?

The Mustang AL 506 features articulated-frame steering and has an outside turning radius of 1.39 meters.

What is the material handling capacity of the Mustang AL 506 in terms of maximum discharge height?

The Mustang AL 506 has a maximum discharge height of 2.21 meters.

What are the specifications of the bucket on the Mustang AL 506 wheel loader?

The Mustang AL 506 wheel loader has a bucket capacity of 0.5 cubic meters, a minimum bucket capacity of 0.5 cubic meters, and a bucket width of 1.4 meters.
