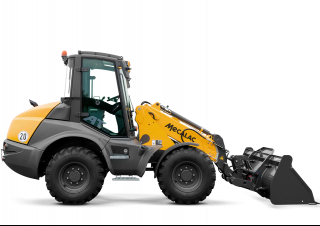

Mecalac AT900 Specifications & Technical Data (2021-2024)

Rate this machine now!

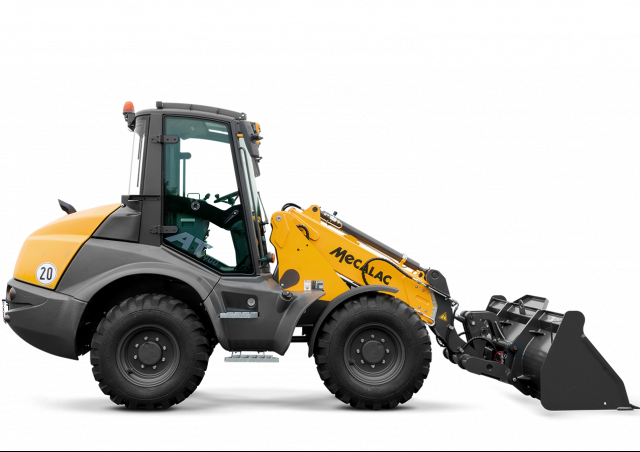

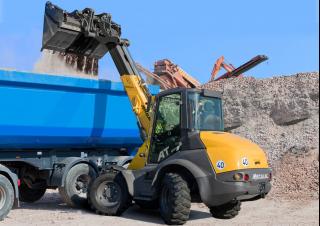

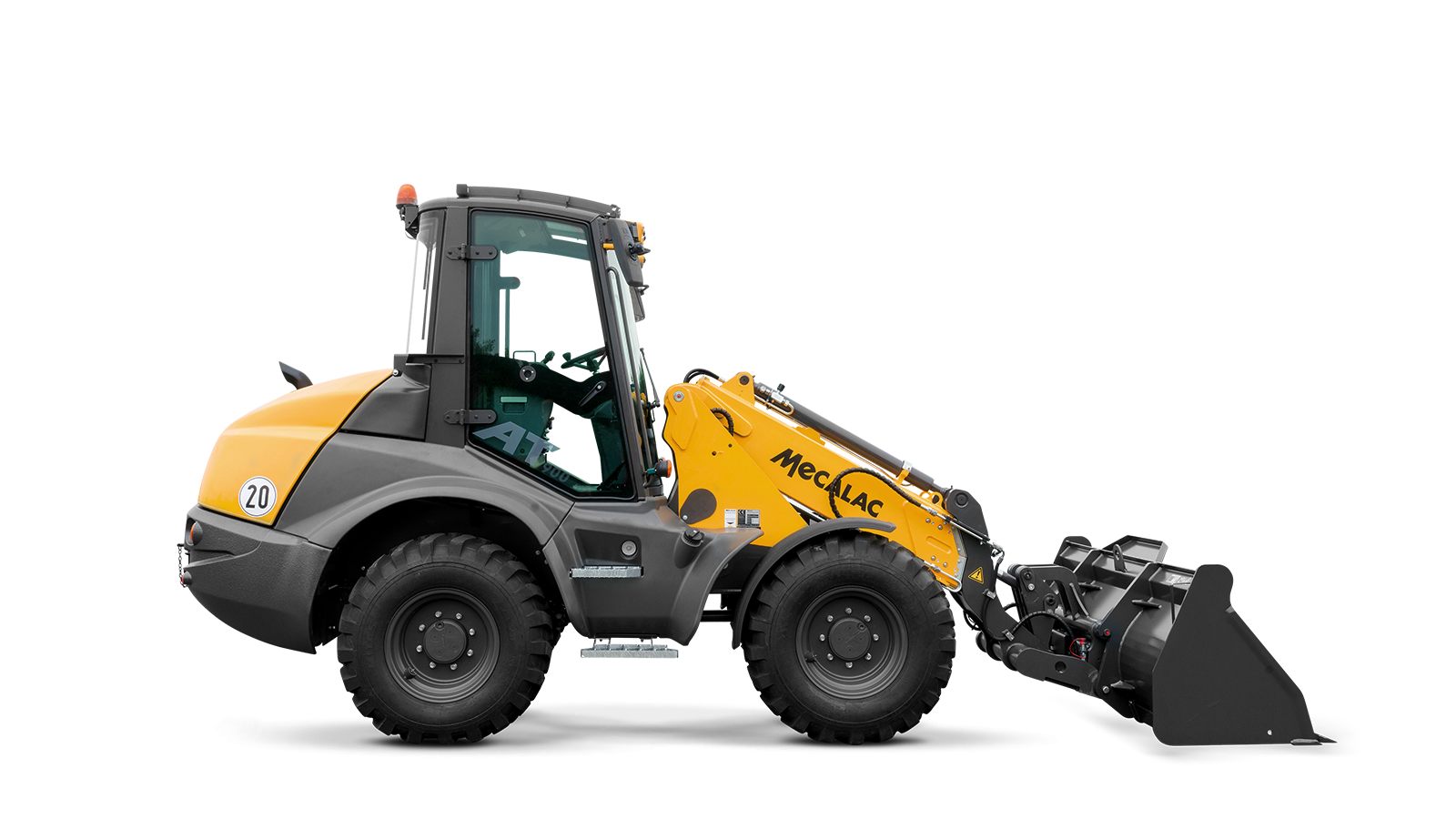

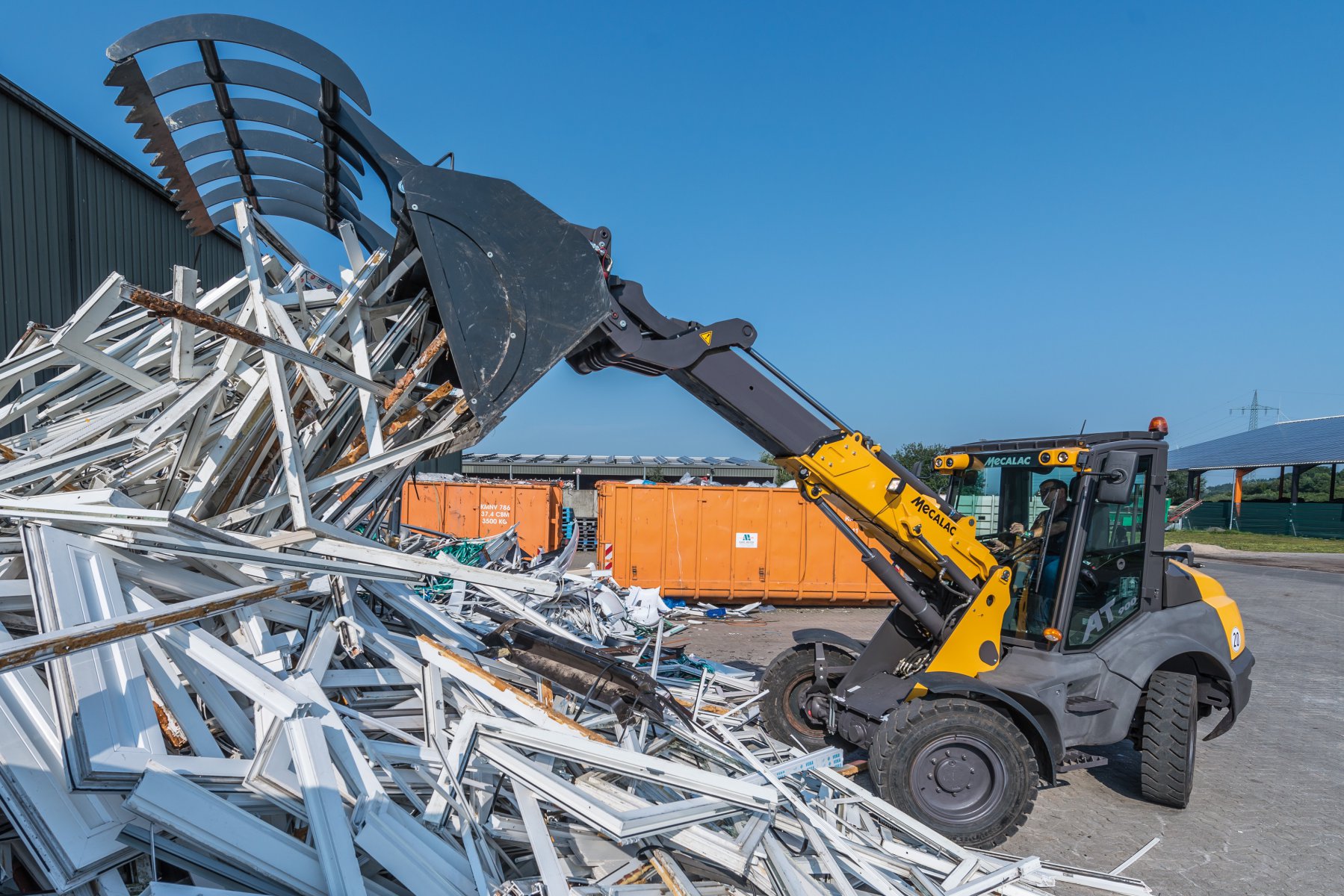

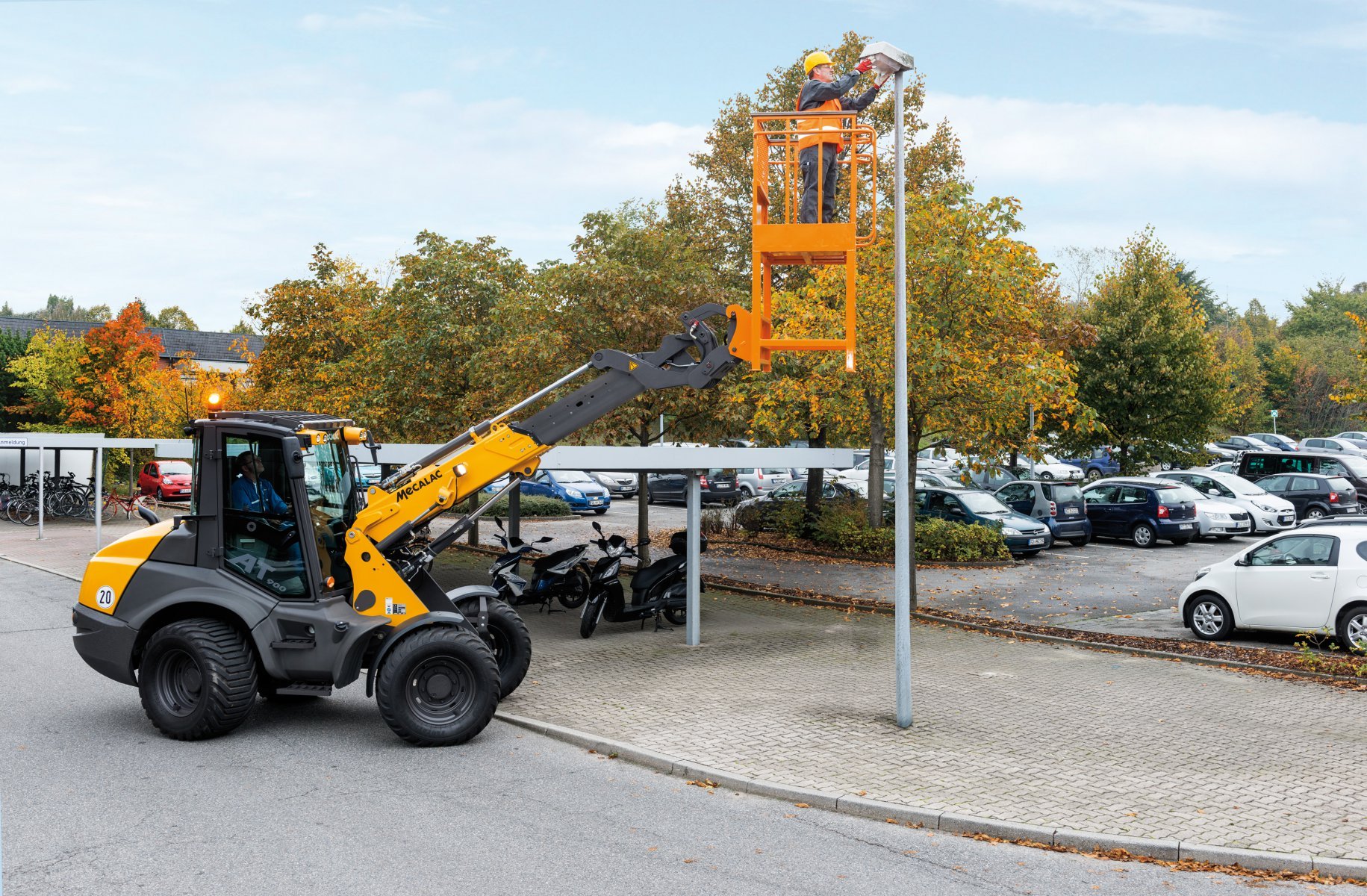

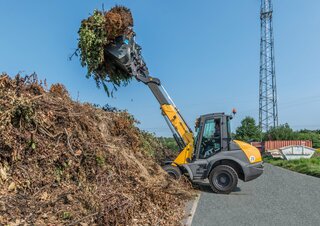

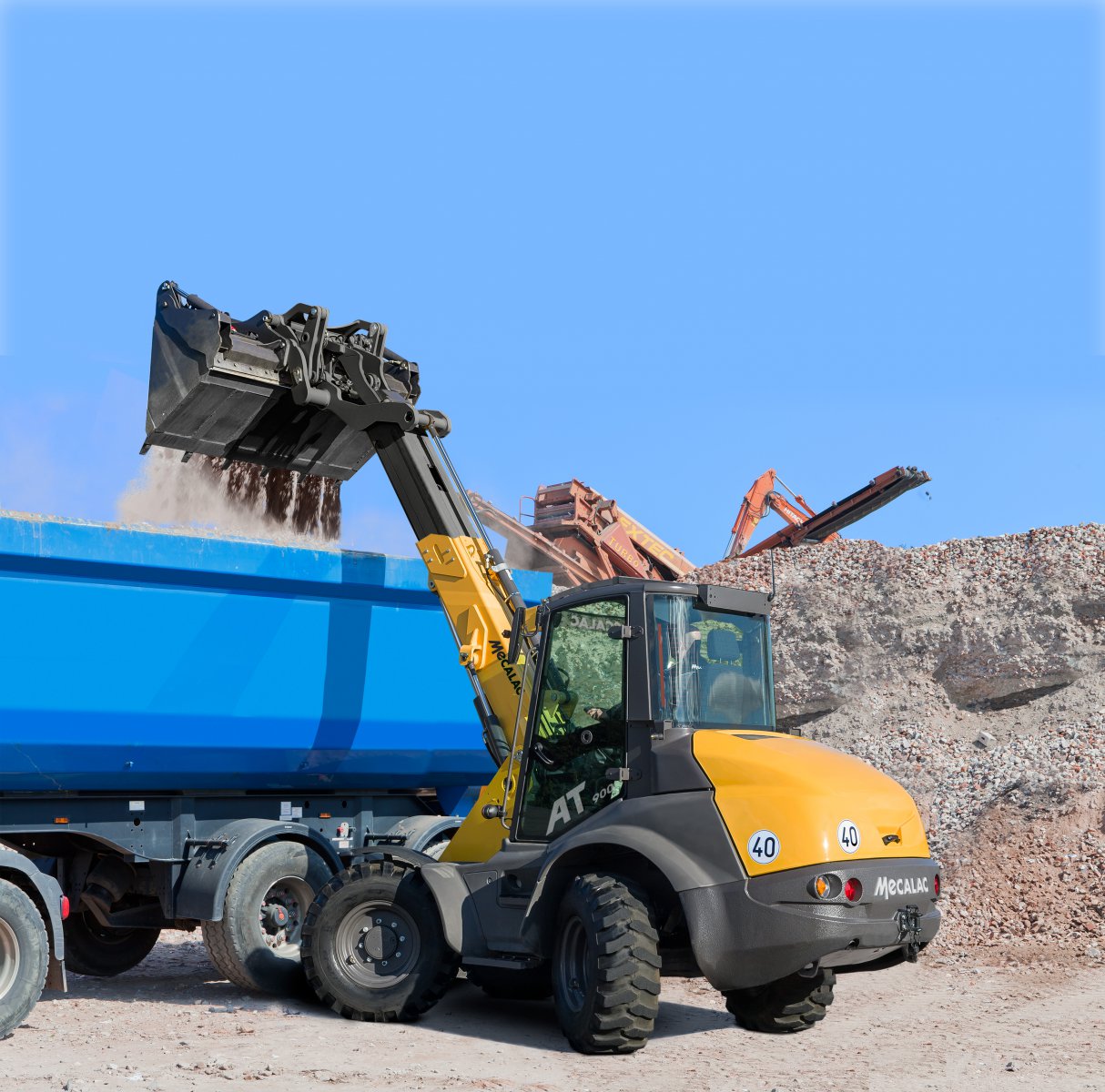

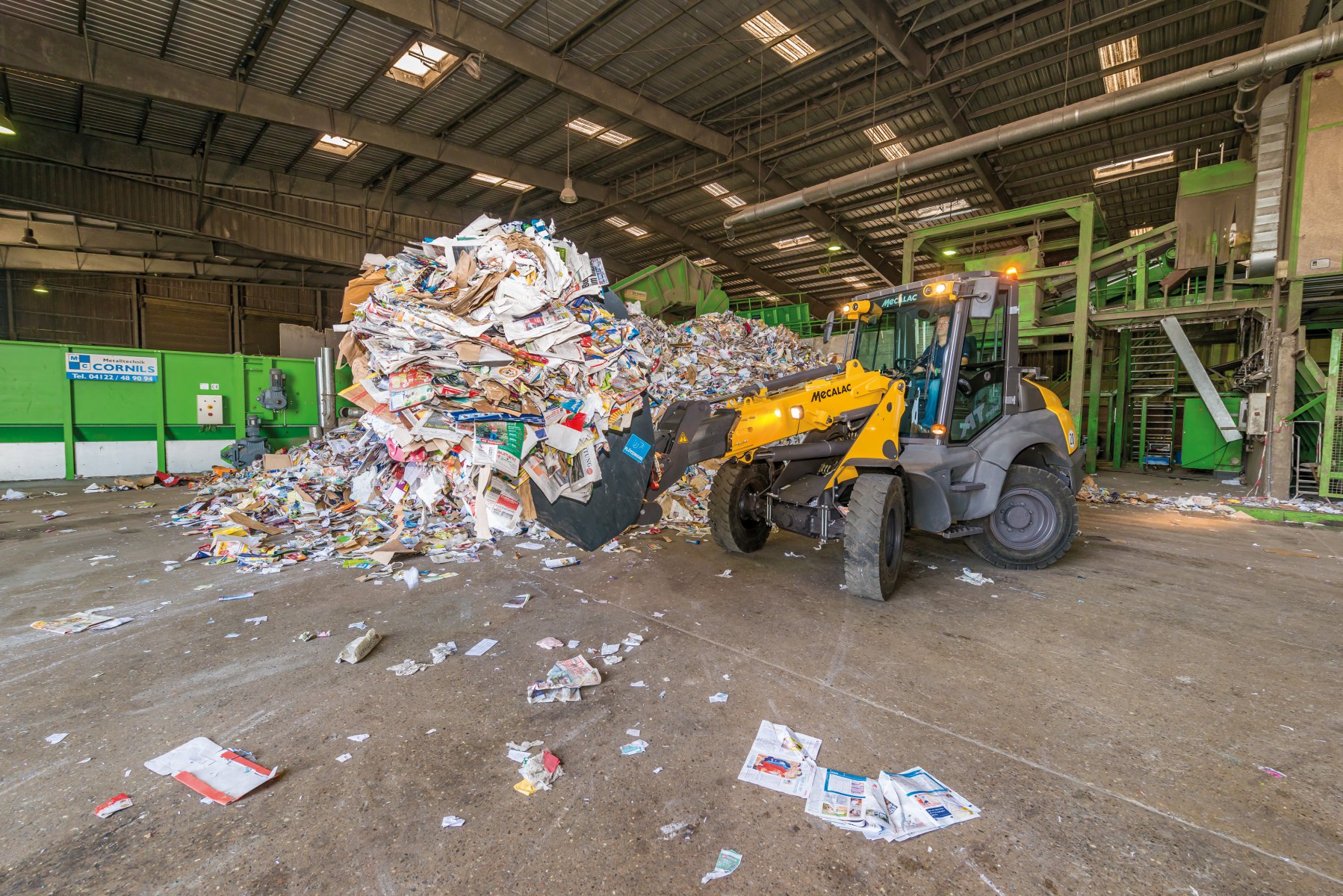

The Mecalac AT900 is a wheel loader manufactured since 2021. It has a weight of 6.55 tons and a transport length of 5.85 meters. T... Read more

The Mecalac AT900 is a wheel loader manufactured since 2021. It has a weight of 6.55 tons and a transport length of 5.85 meters. The bucket capacity is 0.9 cubic meters, with a maximum discharge height of 4.08 meters. The travel speed of the machine is 40 km/h. It has a transport width of 2.1 meters and a transport height of 2.91 meters. The lifting force is 44 kN, and the turning radius outside is 4.6 meters. The machine is equipped with a quick hitch hydr., telescopic feature. The bucket capacity ranges from 0.9 to 1.5 cubic meters.

Technical specs - AT900 Mecalac

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

  • Weight 6.55 t
  • Standard tyres 16/70-20
  • Bucket capacity 0.9 m³
  • Bucket capacity min. 0.9 m³
  • Bucket capacity max. 1.5 m³
  • Steering mode AL
  • Transport length 5.85 m
  • Transport width 2.1 m
  • Transport height 2.91 m
  • Travel speed 40 km/h
  • Max. discharge height 4.08 m
  • Turning radius outside 4.6 m
  • Lifting force 44 kN
  • Model series AT
  • Engine manuf. Deutz
  • Engine type TCD2.9 L4
  • Engine power 55.4 kW
  • Displacement 2.9 l
  • Revolutions at max torque 2300 rpm
  • Max. torque 300/1600 Nm
  • No. of cylinders 4
  • Emission level V

More technical details, like: bucket width, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

  • Diesel particulate filter
  • Swing loader
  • telescopic
  • Aircondition
  • Quick hitch hydr.
  • Quick hitch mech.
