AT1050 Mecalac AT1050 Specifications & Technical Data (2017—2020)

The Mecalac AT1050 is a wheel loader manufactured by Mecalac from 2017 to 2020. It has a weight of 7.15 tons and a transport lengt…

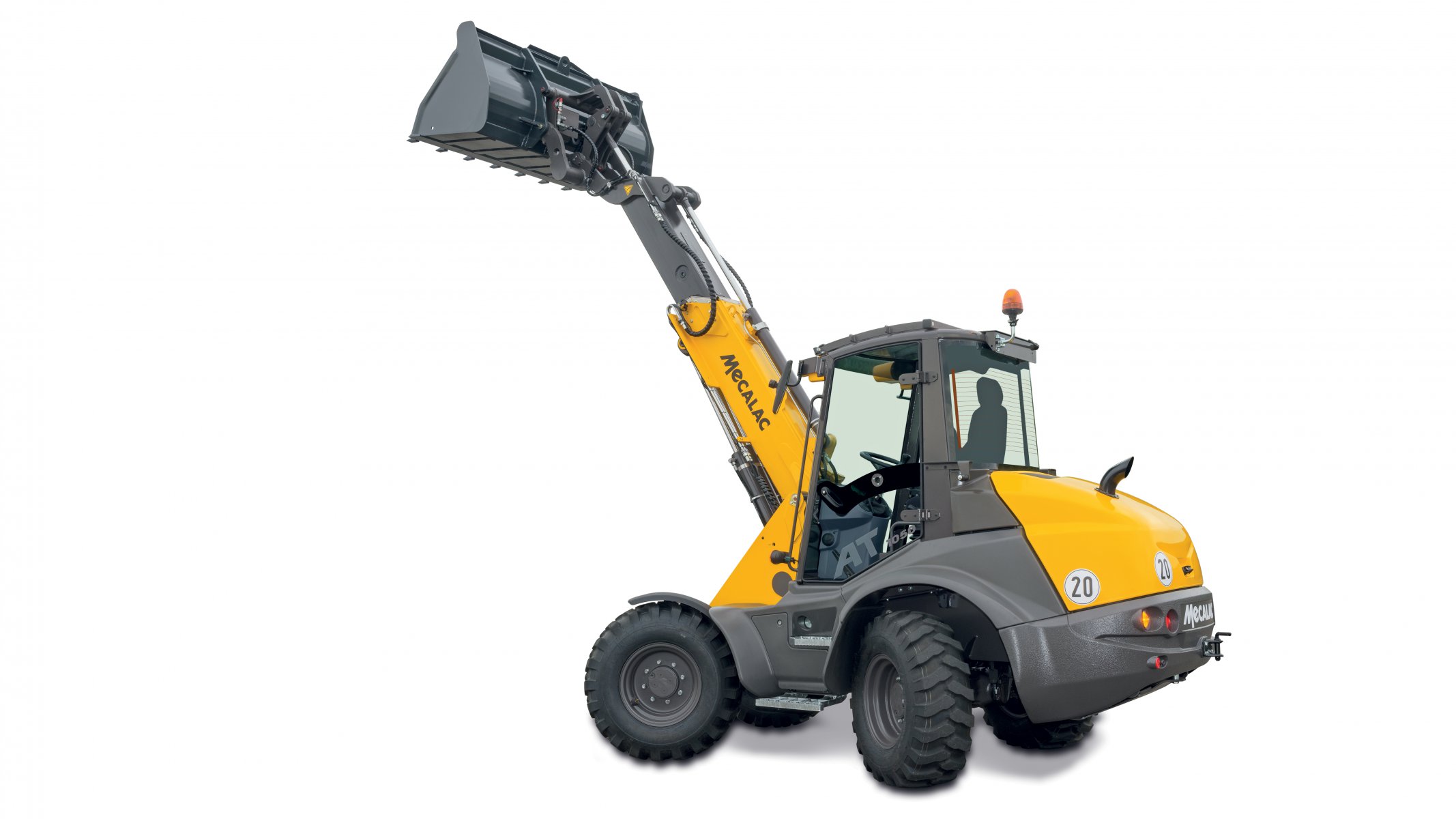

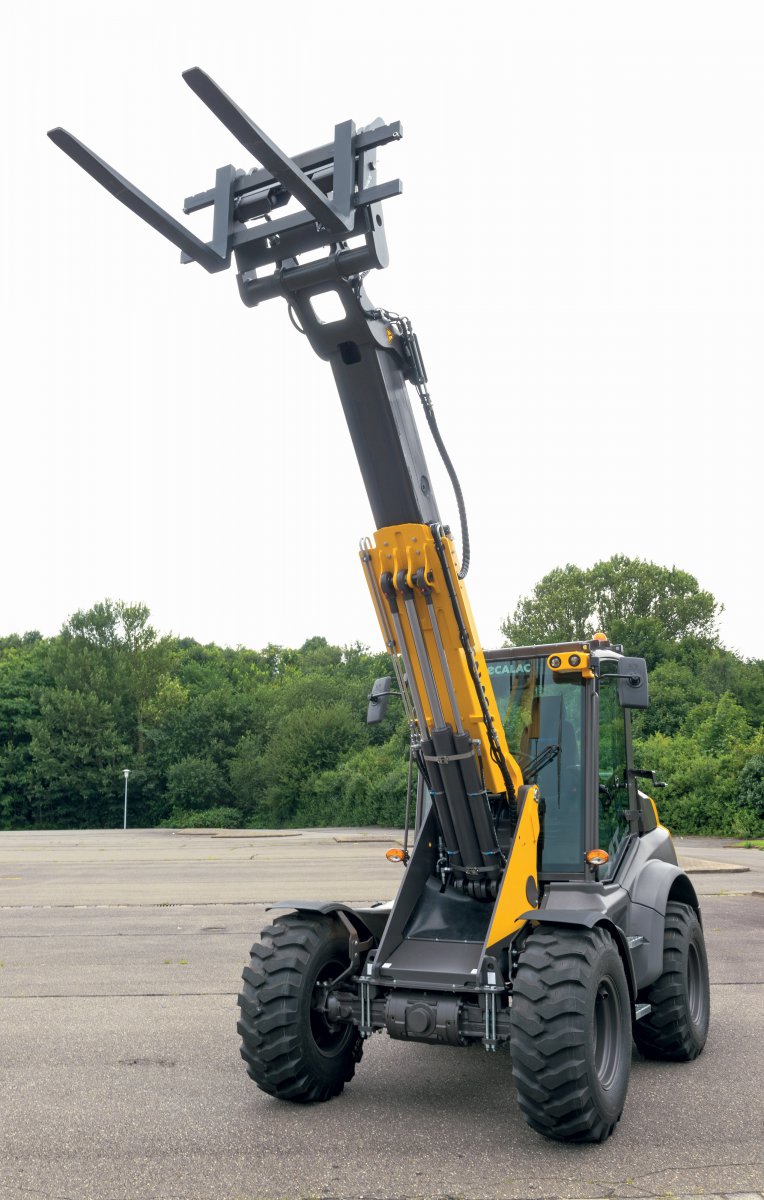

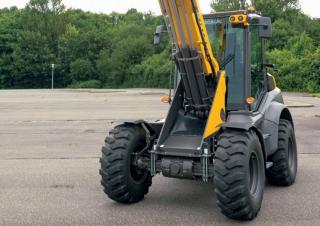

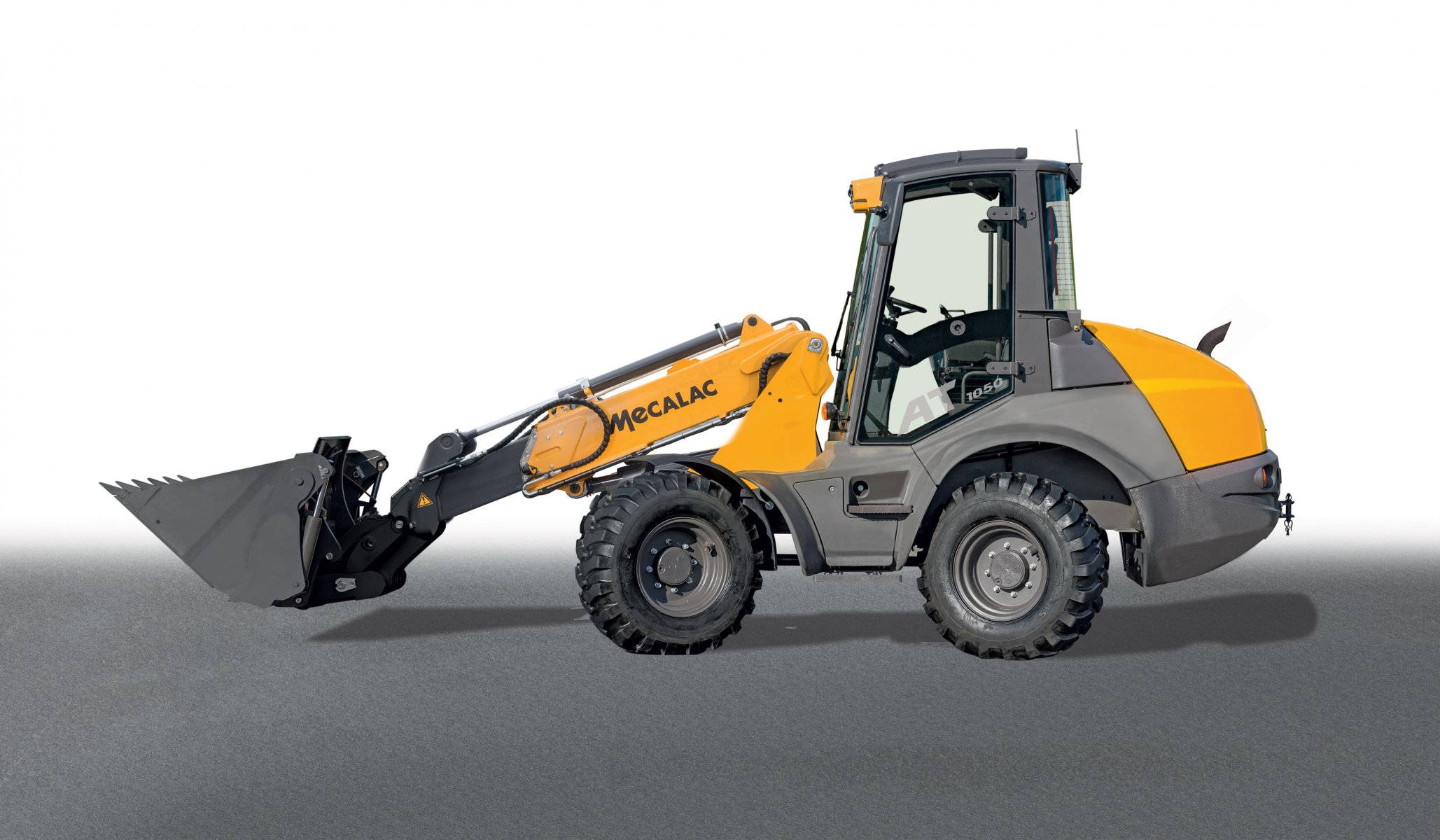

The Mecalac AT1050 is a wheel loader manufactured by Mecalac from 2017 to 2020. It has a weight of 7.15 tons and a transport length of 5.92 meters. The bucket capacity is 1.05 cubic meters, and it has a maximum discharge height of 4.05 meters. The travel speed of the machine is 20 km/h. It has a transport width of 2.1 meters and a transport height of 2.91 meters. The lifting force of the wheel loader is 52 kN, and it has a turning radius outside of 4.63 meters. The machine is equipped with a quick hitch hydr. for special operations.

AT1050

Years of manufacture: 2017—2020

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - AT1050 Mecalac

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 7.15 t

Standard tyres: 16/70-20

Bucket capacity: 1.05 m³

Bucket capacity min.: 1.05 m³

Steering mode: AL

Transport length: 5.92 m

Transport width: 2.1 m

Transport height: 2.91 m

Travel speed: 20 km/h

Max. discharge height: 4.05 m

Turning radius outside: 4.63 m

Lifting force: 52 kN

Model series: AT

Engine manuf.: Deutz

Engine type: TCD2.9 L4

Engine power: 55.4 kW

Revolutions at max torque: 2600 rpm

Max. torque: 300/1600 Nm

No. of cylinders: 4

Emission level: Tier 4 f

More technical details, like: bucket width, bucket capacity max., dimension lxwxh, displacement, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

Mecalac AT1050 FAQ

When was the Mecalac AT1050 manufactured?

The Mecalac AT1050 was manufactured from 2017 to 2020.

How much does the Mecalac AT1050 weigh?

The Mecalac AT1050 weighs 7.15 tons.

What are the transport dimensions of the Mecalac AT1050 wheel loader?

The Mecalac AT1050 has a transport length of 5.92 meters, a transport width of 2.1 meters, and a transport height of 2.91 meters.

What is the travel speed of the Mecalac AT1050 wheel loader?

The Mecalac AT1050 has a travel speed of 20 km/h.

What is the size of the standard tyres on the Mecalac AT1050 wheel loader?

The Mecalac AT1050 wheel loader is equipped with standard tyres sized 16/70-20.

What are the maneuverability specifications of the Mecalac AT1050 wheel loader?

The Mecalac AT1050 features all-wheel steering and has an outside turning radius of 4.63 meters.

What is the lifting force of the Mecalac AT1050 wheel loader?

The Mecalac AT1050 has a lifting force of 52 kN.

What is the maximum discharge height of the Mecalac AT1050?

The Mecalac AT1050 has a maximum discharge height of 4.05 meters.

What is the bucket capacity of the Mecalac AT1050 wheel loader?

The Mecalac AT1050 wheel loader has a bucket capacity of 1.05 cubic meters.

How much is a Mecalac AT1050 Wheel loader (2017u20132020) worth?

The residual value of the Mecalac AT1050 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
