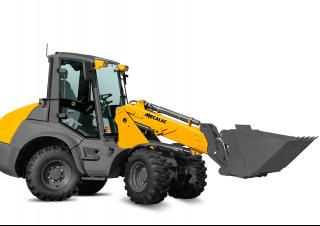

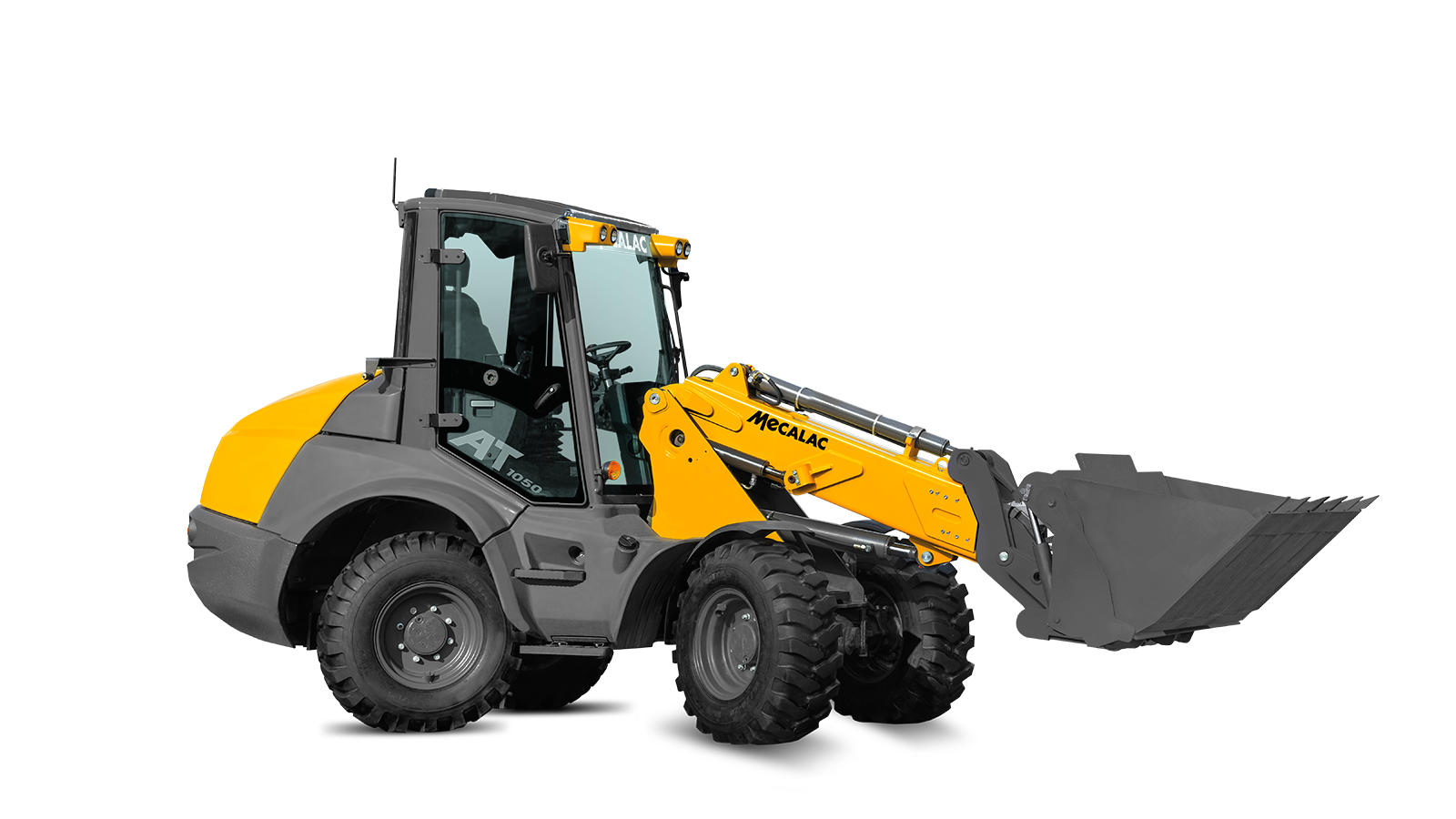

AT 1050 Mecalac AT 1050 Specifications & Technical Data (2014—2015)

The Mecalac AT 1050 is a wheel loader manufactured by Mecalac from 2014 to 2015. It has a weight of 7.15 tons and a transport leng…

The Mecalac AT 1050 is a wheel loader manufactured by Mecalac from 2014 to 2015. It has a weight of 7.15 tons and a transport length of 5.92 meters. The bucket capacity is 1.05 cubic meters, with a maximum discharge height of 3.56 meters. The travel speed of the machine is 30 km/h. It has a transport width of 2.1 meters and a transport height of 2.9 meters. The lifting force of the wheel loader is 47 kN. It is equipped with a quick hitch hydr., telescopic feature. The bucket capacity ranges from a minimum of 1.05 cubic meters to a maximum of 1.6 cubic meters.

AT 1050

Years of manufacture: 2014—2015

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - AT 1050 Mecalac

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 7.15 t

Standard tyres: 16/70-20

Bucket capacity: 1.05 m³

Bucket capacity min.: 1.05 m³

Bucket capacity max.: 1.6 m³

Steering mode: AL

Transport length: 5.92 m

Transport width: 2.1 m

Transport height: 2.9 m

Travel speed: 30 km/h

Max. discharge height: 3.56 m

Lifting force: 47 kN

Model series: AT

More technical details, like: bucket width, turning radius outside, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: Yes
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

AT 1050 Mecalac Specification for Europe (EN)

Mecalac AT 1050 FAQ

When was the Mecalac AT 1050 manufactured?

The Mecalac AT 1050 was manufactured from 2014 to 2015.

How much does the Mecalac AT 1050 weigh?

The Mecalac AT 1050 weighs 7.15 tons.

What are the transport dimensions of the Mecalac AT 1050 wheel loader?

The Mecalac AT 1050 has a transport length of 5.92 meters, a transport width of 2.1 meters, and a transport height of 2.9 meters.

What is the travel speed of the Mecalac AT 1050 wheel loader?

The Mecalac AT 1050 has a travel speed of 30 km/h.

What is the standard tyre size of the Mecalac AT 1050?

The Mecalac AT 1050 has standard tyres of size 16/70-20.

What is the steering mode of the Mecalac AT 1050?

The Mecalac AT 1050 has all-wheel steering.

What is the lifting force of the Mecalac AT 1050 wheel loader?

The Mecalac AT 1050 wheel loader has a lifting force of 47 kN.

What is the maximum discharge height of the Mecalac AT 1050?

The Mecalac AT 1050 has a maximum discharge height of 3.56 meters.

What are the bucket capacity specifications of the Mecalac AT 1050 wheel loader?

The Mecalac AT 1050 wheel loader has a bucket capacity of 1.05 cubic meters, with a minimum capacity of 1.05 cubic meters and a maximum capacity of 1.6 cubic meters.
