AS900tele Mecalac AS900tele Specifications & Technical Data (2021—2026)

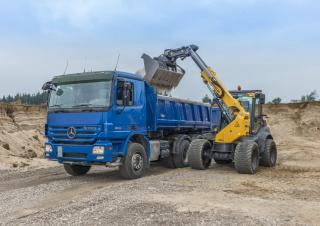

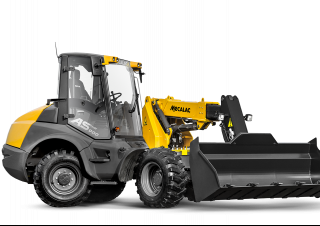

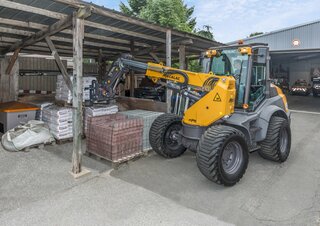

The Mecalac AS900tele is a wheel loader manufactured since 2021. It has a weight of 7.25 tons and a transport length of 6.27 meter…

The Mecalac AS900tele is a wheel loader manufactured since 2021. It has a weight of 7.25 tons and a transport length of 6.27 meters. The bucket capacity is 0.7 cubic meters, with a maximum discharge height of 4.1 meters. The travel speed is 20 km/h, and the transport width is 2.1 meters. The transport height is 2.91 meters. It has a lifting force of 37 kN. The bucket capacity ranges from 0.7 to 1.2 cubic meters. Special equipment includes a quick hitch hydr., swing loader, and telescopic capabilities.

AS900tele

Years of manufacture: 2021—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - AS900tele Mecalac

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 7.25 t

Standard tyres: 16/70-20

Bucket capacity: 0.7 m³

Bucket capacity min.: 0.7 m³

Bucket capacity max.: 1.2 m³

Steering mode: AL

Transport length: 6.27 m

Transport width: 2.1 m

Transport height: 2.91 m

Travel speed: 20 km/h

Max. discharge height: 4.1 m

Lifting force: 37 kN

Model series: AS

Engine manuf.: Deutz

Engine type: TCD2.9 L4

Engine power: 55.4 kW

Displacement: 2.9 l

Revolutions at max torque: 2300 rpm

Max. torque: 300/1600 Nm

No. of cylinders: 4

Cylinder bore x stroke: 92x110 mm

Emission level: EU V

More technical details, like: bucket width, turning radius outside, dimension lxwxh are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: Yes
telescopic: Yes
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

Mecalac AS900tele FAQ

When was the Mecalac AS900tele manufactured?

The Mecalac AS900tele was first produced in 2021.

How much does the Mecalac AS900tele weigh?

The Mecalac AS900tele weighs 7.25 tons.

What are the transport dimensions of the Mecalac AS900tele wheel loader?

The Mecalac AS900tele has a transport length of 6.27 meters, a transport width of 2.1 meters, and a transport height of 2.91 meters.

What is the travel speed of the Mecalac AS900tele wheel loader?

The Mecalac AS900tele has a travel speed of 20 km/h.

What are the standard tyre specifications of the Mecalac AS900tele?

The Mecalac AS900tele has standard tyres sized 16/70-20.

What is the steering mode of the Mecalac AS900tele?

The Mecalac AS900tele has an all-wheel steering mode.

What is the lifting force of the Mecalac AS900tele?

The Mecalac AS900tele has a lifting force of 37 kN.

What is the material handling capacity of the Mecalac AS900tele in terms of discharge height?

The Mecalac AS900tele has a maximum discharge height of 4.1 meters.

What are the bucket capacity specifications of the Mecalac AS900tele wheel loader?

The Mecalac AS900tele wheel loader has a bucket capacity of 0.7 cubic meters, with a minimum capacity of 0.7 cubic meters and a maximum capacity of 1.2 cubic meters.
