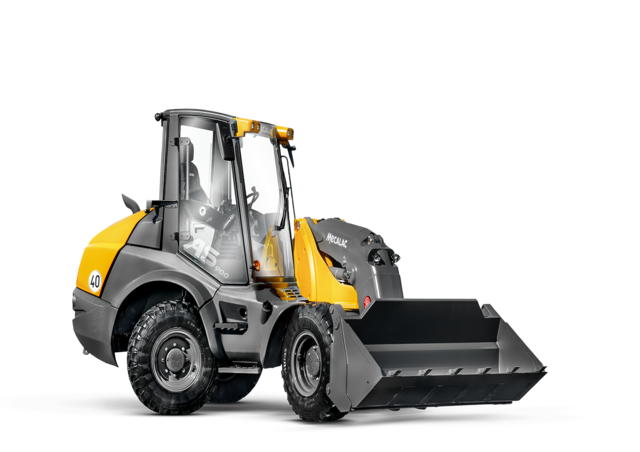

AS900 Mecalac AS900 Specifications & Technical Data (2021—2022)

The Mecalac AS900 is a wheel loader manufactured from 2021 to 2022. It has a weight of 6.64 tons and a transport length of 5.59 me…

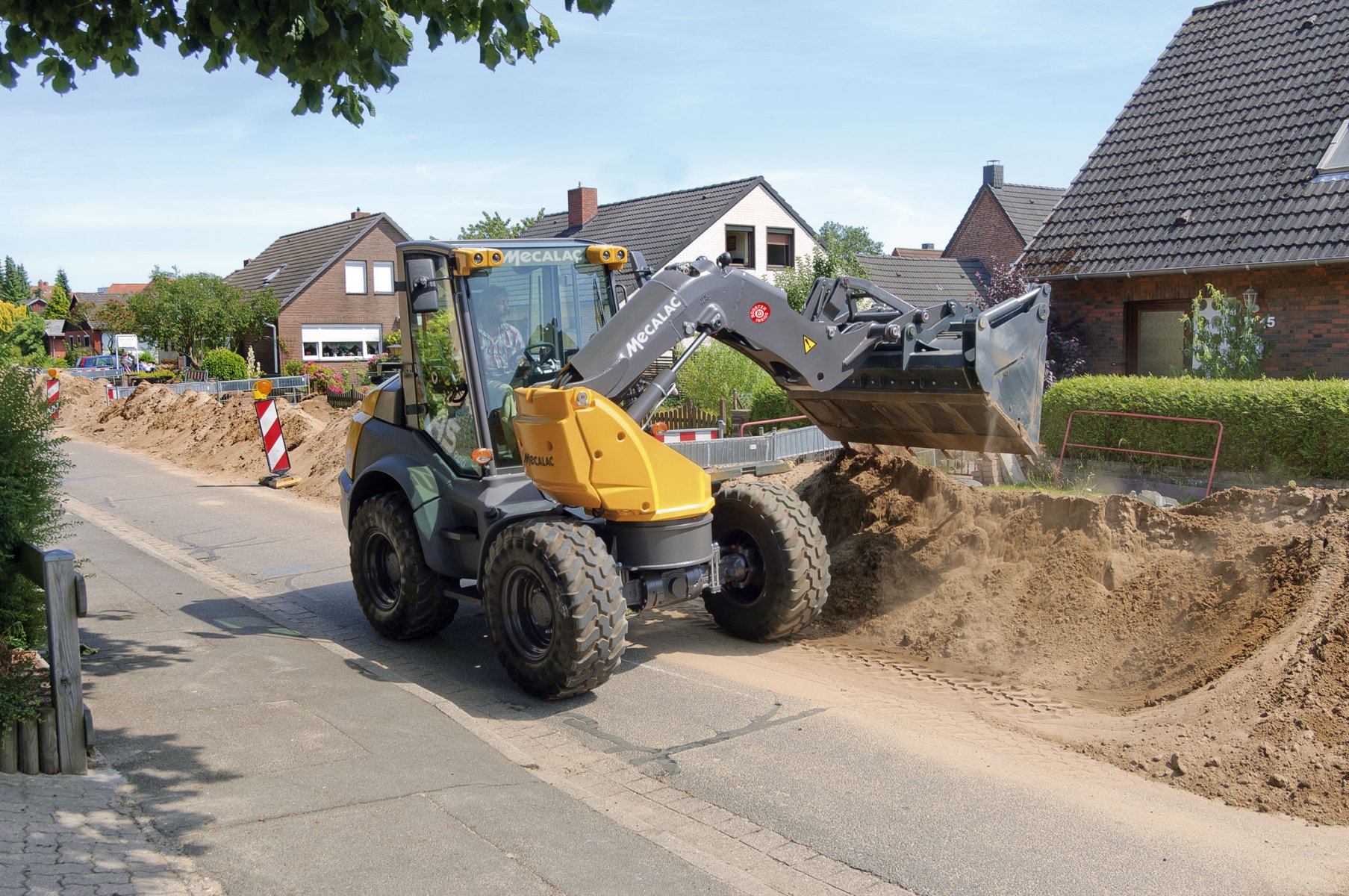

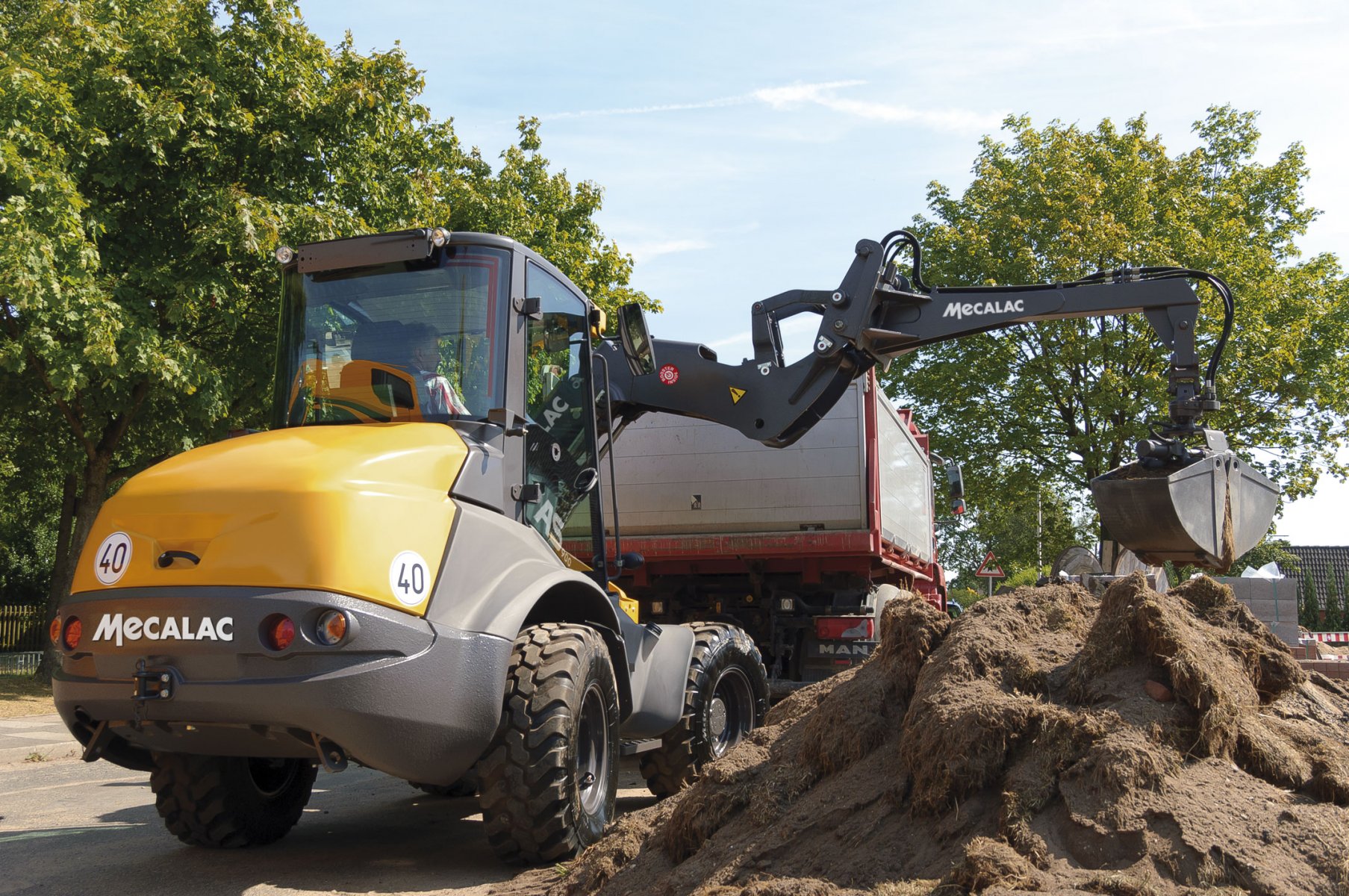

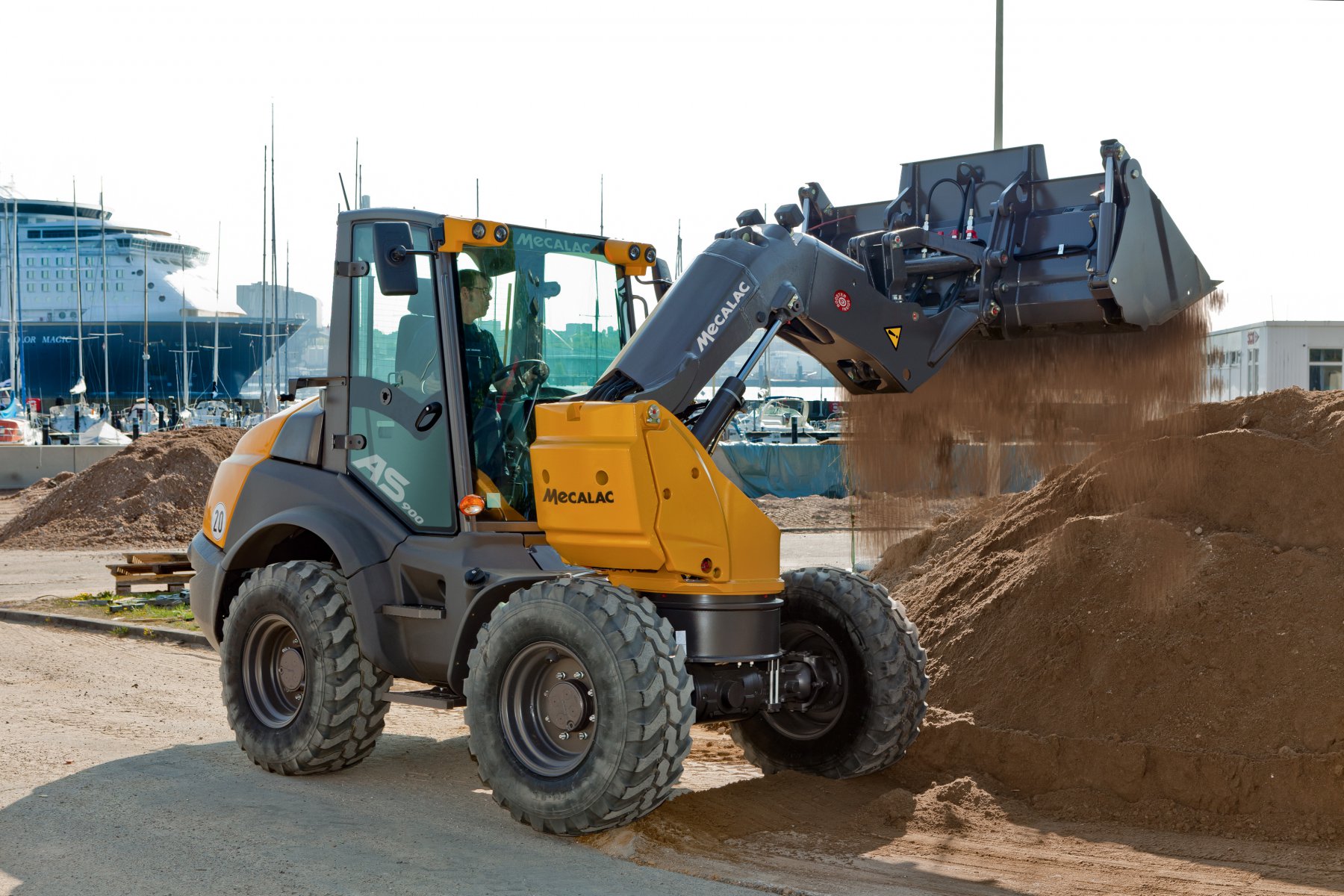

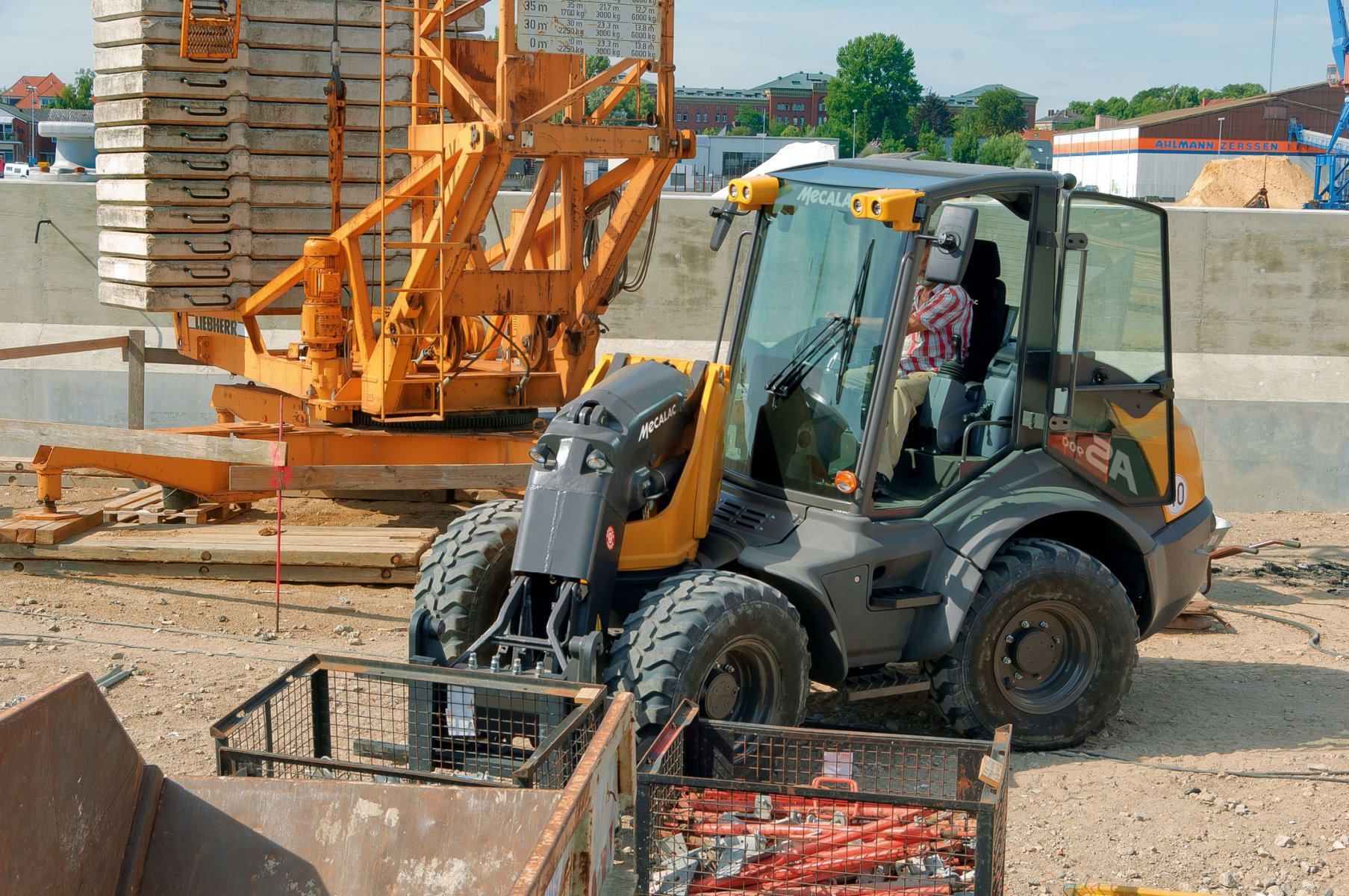

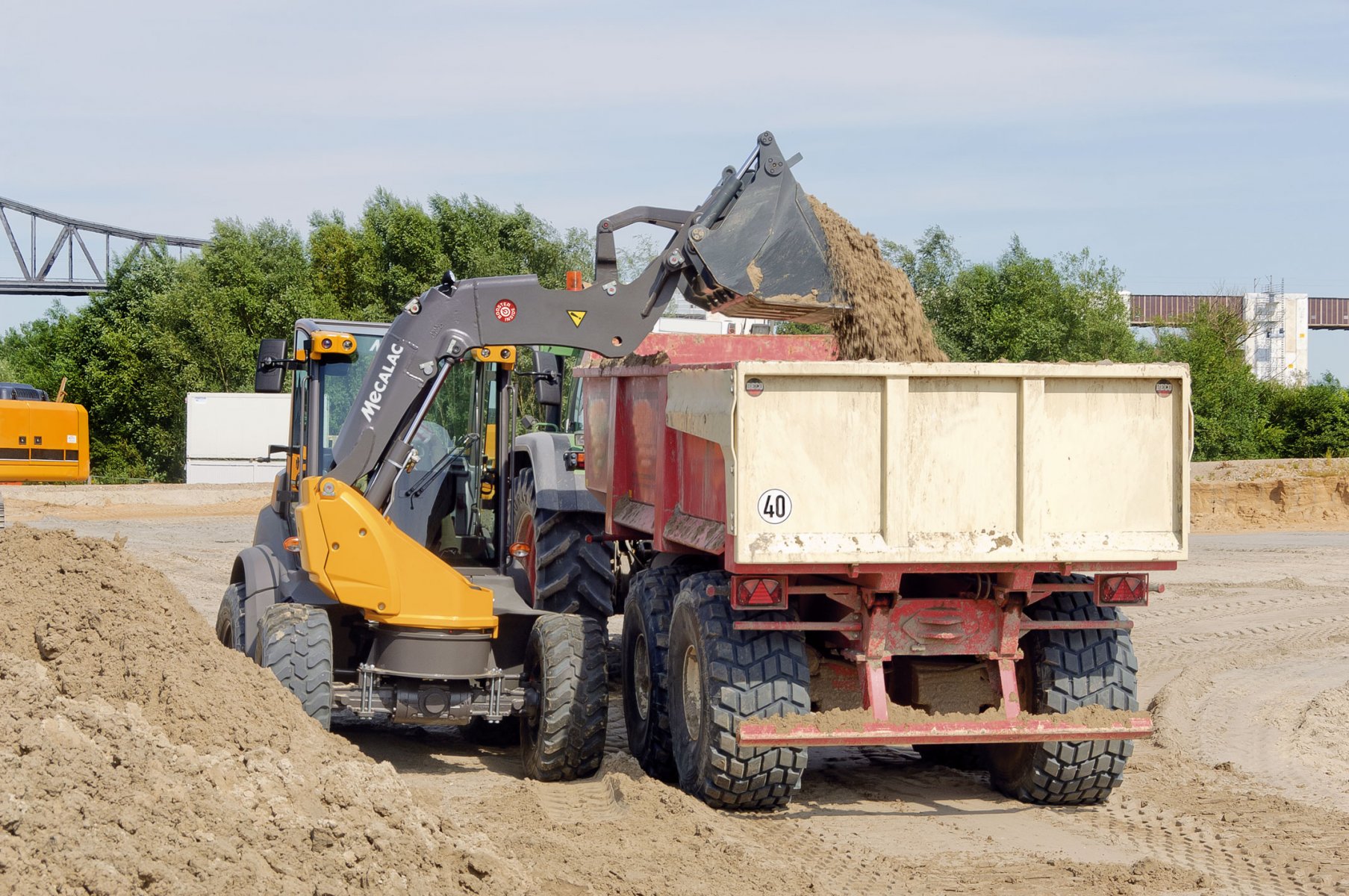

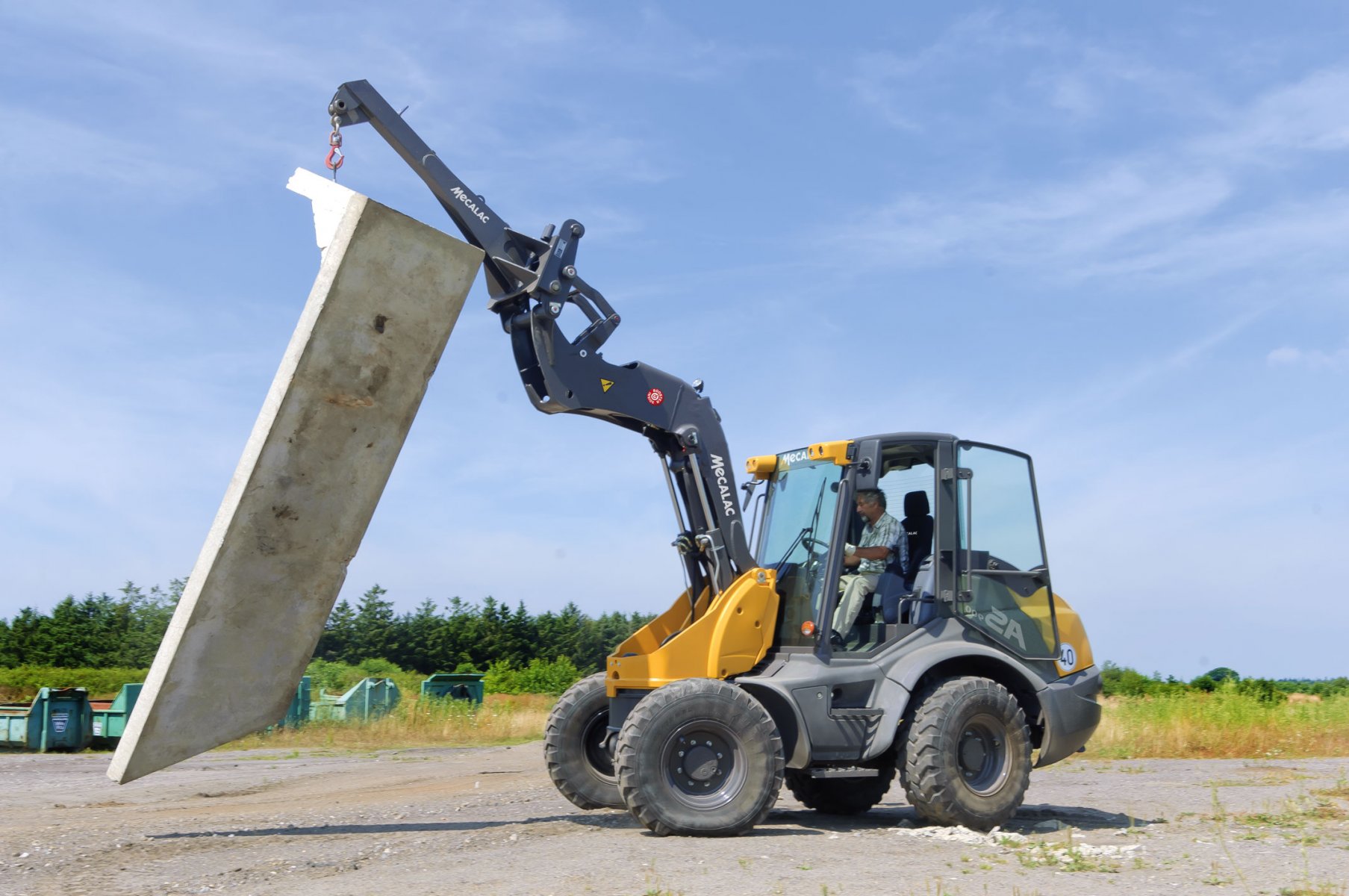

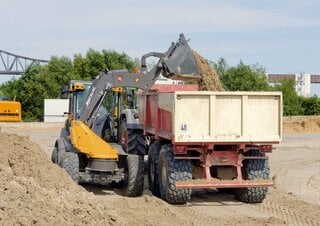

The Mecalac AS900 is a wheel loader manufactured from 2021 to 2022. It has a weight of 6.64 tons and a transport length of 5.59 meters. The bucket capacity ranges from 0.9 to 1.5 cubic meters, with a maximum discharge height of 2.65 meters. It has a travel speed of 30 km/h and a transport width of 2.1 meters. The transport height is 2.83 meters, and it has a lifting force of 75 kN. Special equipment includes air conditioning, a diesel particulate filter, a quick hitch hydraulic mechanism, and a swing loader.

AS900

Years of manufacture: 2021—2022

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - AS900 Mecalac

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 6.64 t

Standard tyres: 14.5-20

Bucket capacity: 0.9 m³

Bucket capacity min.: 0.9 m³

Bucket capacity max.: 1.5 m³

Steering mode: AL

Transport length: 5.59 m

Transport width: 2.1 m

Transport height: 2.83 m

Travel speed: 30 km/h

Max. discharge height: 2.65 m

Lifting force: 75 kN

Model series: AS

Engine manuf.: Deutz

Engine type: TCD2.9 L4

Engine power: 55.4 kW

Displacement: 2.9 l

Revolutions at max torque: 2300 rpm

Max. torque: 300/1600 Nm

No. of cylinders: 4

Cylinder bore x stroke: 92x110 mm

Emission level: EU V

More technical details, like: bucket width, turning radius outside, dimension lxwxh are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: Yes
Swing loader: Yes
telescopic: No
Aircondition: Yes
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

Mecalac AS900 FAQ

When was the Mecalac AS900 manufactured?

The Mecalac AS900 was manufactured from 2021 to 2022.

How much does the Mecalac AS900 weigh?

The Mecalac AS900 weighs 6.64 tons.

What are the transport dimensions of the Mecalac AS900 wheel loader?

The Mecalac AS900 has a transport length of 5.59 meters, a transport width of 2.1 meters, and a transport height of 2.83 meters.

What is the travel speed of the Mecalac AS900 wheel loader?

The Mecalac AS900 has a travel speed of 30 km/h.

What are the undercarriage specifications of the Mecalac AS900 wheel loader?

The Mecalac AS900 wheel loader is equipped with standard tyres sized 14.5-20.

What is the steering mode of the Mecalac AS900 wheel loader?

The Mecalac AS900 has an all-wheel steering mode.

What is the lifting force of the Mecalac AS900 wheel loader?

The Mecalac AS900 wheel loader has a lifting force of 75 kN.

What is the maximum discharge height of the Mecalac AS900?

The Mecalac AS900 has a maximum discharge height of 2.65 meters.

What are the bucket capacity specifications of the Mecalac AS900 wheel loader?

The Mecalac AS900 wheel loader has a bucket capacity of 0.9 mu00b3, with a minimum capacity of 0.9 mu00b3 and a maximum capacity of 1.5 mu00b3.
