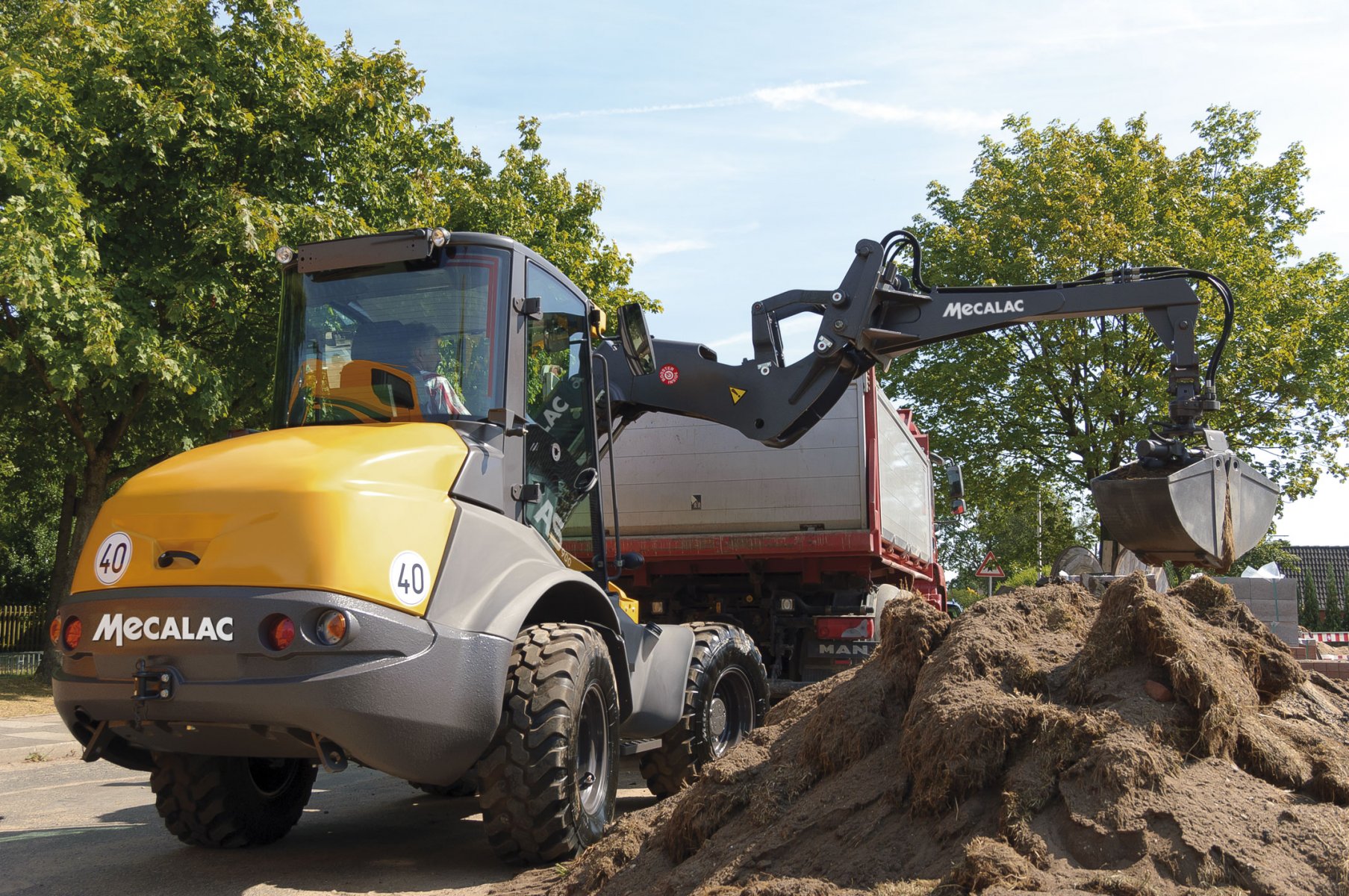

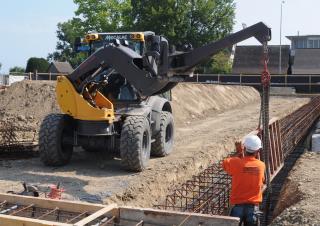

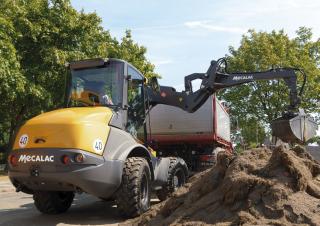

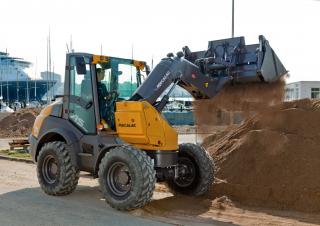

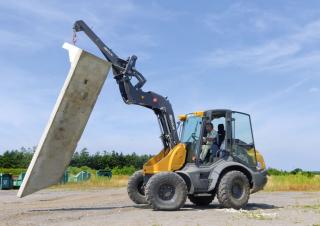

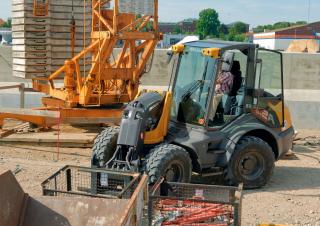

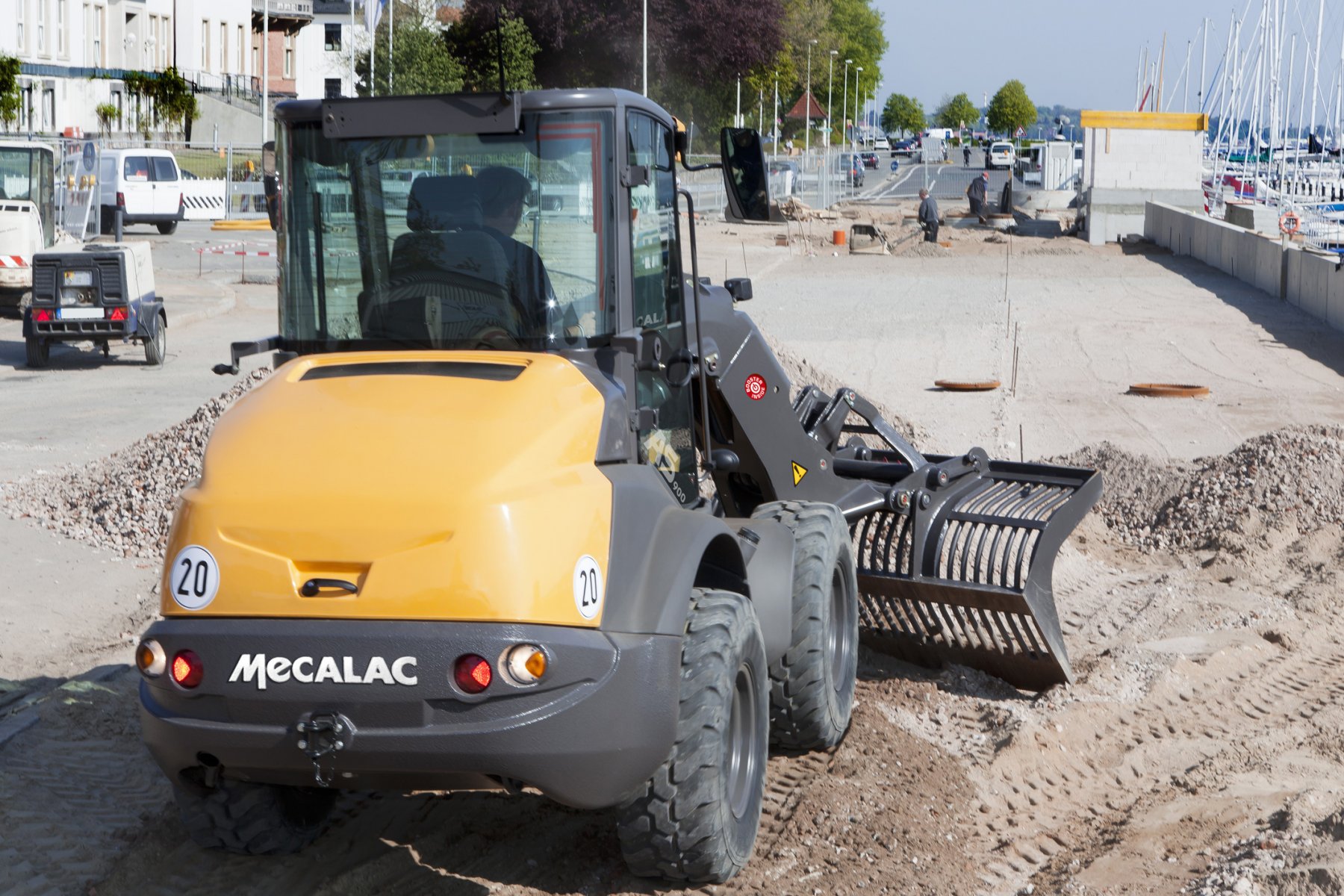

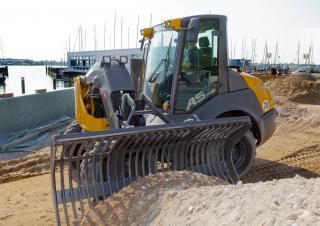

AS900 Mecalac AS900 Specifications & Technical Data (2016—2020)

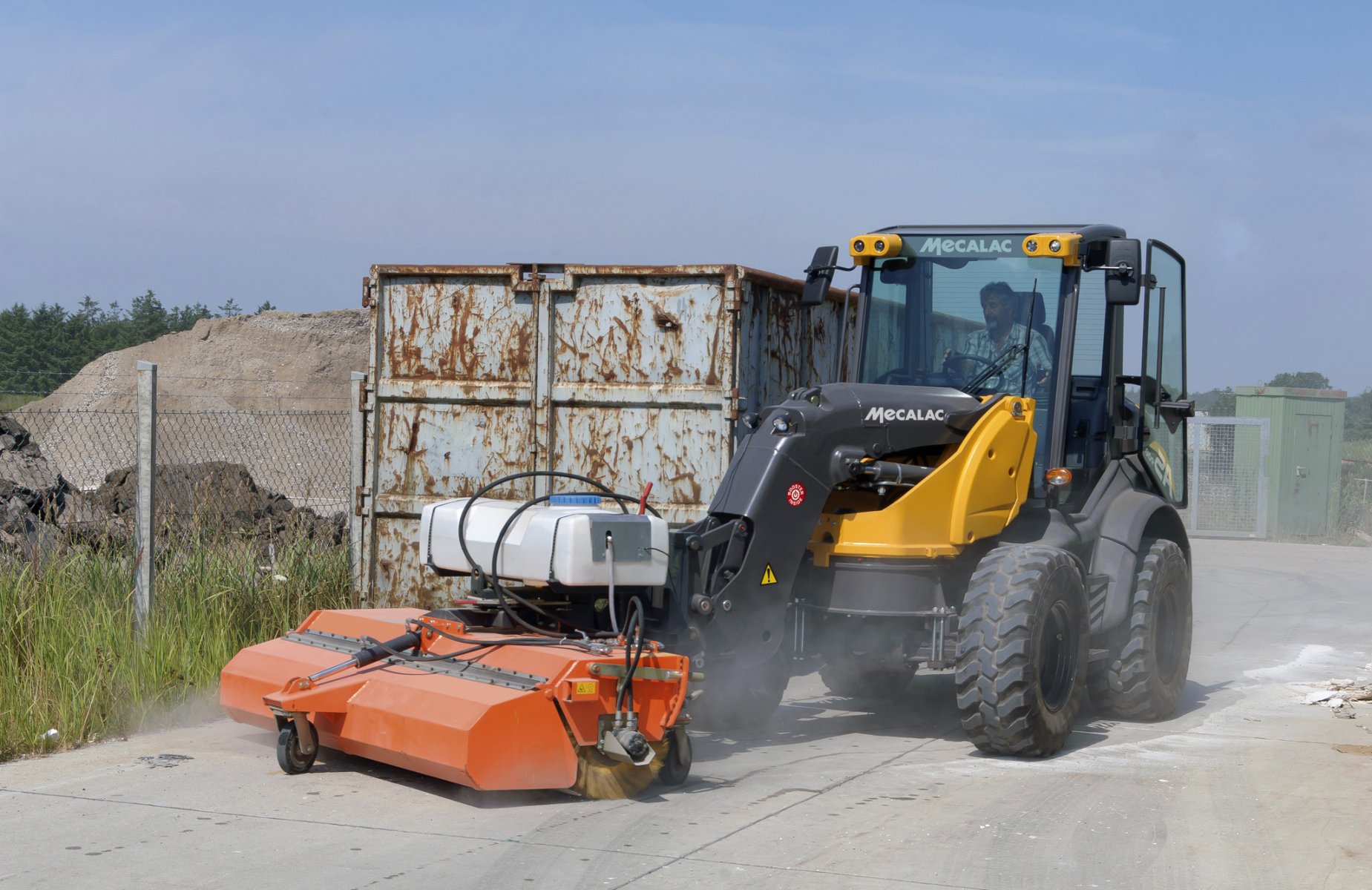

The Mecalac AS900 is a wheel loader manufactured by Mecalac from 2016 to 2020. It has a weight of 6.64 tons and a transport length…

The Mecalac AS900 is a wheel loader manufactured by Mecalac from 2016 to 2020. It has a weight of 6.64 tons and a transport length of 5.59 meters. The bucket capacity is 0.9 cubic meters, with a maximum discharge height of 2.65 meters. It has a travel speed of 40 km/h and a transport width of 2.1 meters. The transport height is 2.83 meters. The lifting force is 75 kN. The bucket capacity ranges from 0.9 to 1.5 cubic meters. It is equipped with special features such as air conditioning, a diesel particulate filter, a quick hitch hydraulic system, and a swing loader.

AS900

Years of manufacture: 2016—2020

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - AS900 Mecalac

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 6.64 t

Standard tyres: 14.5-20

Bucket capacity: 0.9 m³

Bucket capacity min.: 0.9 m³

Bucket capacity max.: 1.5 m³

Steering mode: AL

Transport length: 5.59 m

Transport width: 2.1 m

Transport height: 2.83 m

Travel speed: 40 km/h

Max. discharge height: 2.65 m

Lifting force: 75 kN

Model series: AS

Engine manuf.: Deutz

Engine type: TCD2.9 L4

Engine power: 55.4 kW

Revolutions at max torque: 2600 rpm

Max. torque: 300/1600 Nm

No. of cylinders: 4

Emission level: Tier 4 f

More technical details, like: bucket width, turning radius outside, dimension lxwxh, displacement, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: Yes
Swing loader: Yes
telescopic: No
Aircondition: Yes
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

Mecalac AS900 FAQ

When was the Mecalac AS900 manufactured?

The Mecalac AS900 was manufactured from 2016 to 2020.

How much does the Mecalac AS900 wheel loader weigh?

The Mecalac AS900 wheel loader weighs 6.64 tons.

What are the transport dimensions of the Mecalac AS900 wheel loader?

The Mecalac AS900 has a transport length of 5.59 meters, a transport width of 2.1 meters, and a transport height of 2.83 meters.

What is the travel speed of the Mecalac AS900 wheel loader?

The Mecalac AS900 has a travel speed of 40 km/h.

What is the standard tyre size of the Mecalac AS900 wheel loader?

The Mecalac AS900 wheel loader has standard tyres sized 14.5-20.

What is the steering mode of the Mecalac AS900?

The Mecalac AS900 has an all-wheel steering mode.

What are the power ratings of the Mecalac AS900 wheel loader?

The source data does not provide power rating information for the Mecalac AS900 wheel loader.

What is the maximum discharge height of the Mecalac AS900?

The Mecalac AS900 has a maximum discharge height of 2.65 meters.

What are the bucket capacity specifications of the Mecalac AS900 wheel loader?

The Mecalac AS900 wheel loader has a bucket capacity ranging from 0.9 mu00b3 to a maximum of 1.5 mu00b3, with a standard bucket capacity of 0.9 mu00b3.
