Mecalac AS700 Specifications & Technical Data (2021-2022)

Name: Mecalac AS700 Wheel Loaders
Brand: Mecalac

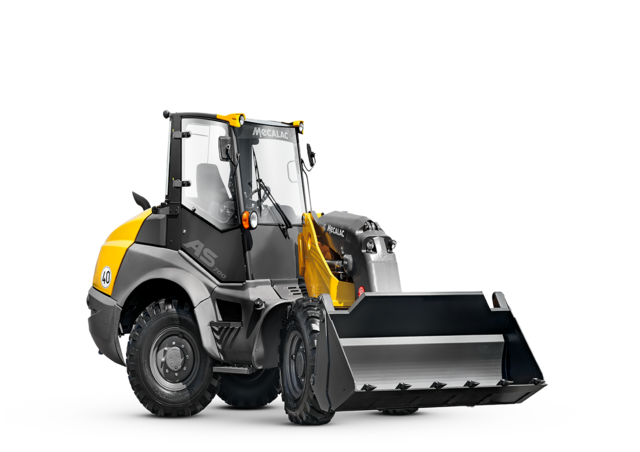

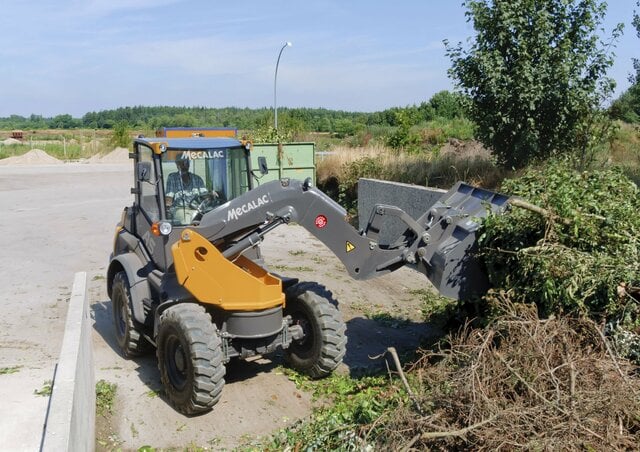

The Mecalac AS700 is a wheel loader manufactured from 2021 to 2022. It has a weight of 5.98 tons and a transport length of 5.55 me…

The Mecalac AS700 is a wheel loader manufactured from 2021 to 2022. It has a weight of 5.98 tons and a transport length of 5.55 meters. The bucket capacity ranges from 0.7 to 1.2 cubic meters, with a maximum discharge height of 2.72 meters. The travel speed of this machine is 40 km/h, and it has a transport width of 1.95 meters and a transport height of 2.76 meters. The lifting force is 60 kN, and the turning radius outside is 4.27 meters. Special equipment includes air conditioning, a diesel particulate filter, a quick hitch hydraulic system, and a swing loader.

Technical specs - AS700 Mecalac

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5.98 t

Standard tyres: 14.5-20

Bucket capacity: 0.7 m³

Bucket capacity min.: 0.7 m³

Bucket capacity max.: 1.2 m³

Steering mode: AL

Transport length: 5.55 m

Transport width: 1.95 m

Transport height: 2.76 m

Travel speed: 40 km/h

Max. discharge height: 2.72 m

Turning radius outside: 4.27 m

Lifting force: 60 kN

Model series: AS

Engine manuf.: Deutz

Engine type: TCD2.9 L4

Engine power: 55.4 kW

Displacement: 2.9 l

Revolutions at max torque: 2300 rpm

Max. torque: 300/1600 Nm

No. of cylinders: 4

Emission level: V

More technical details, like: bucket width, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: Yes
Swing loader: Yes
telescopic: No
Aircondition: Yes
Quick hitch hydr.: Yes
Quick hitch mech.: No
