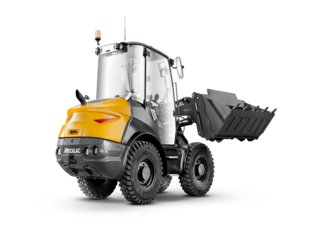

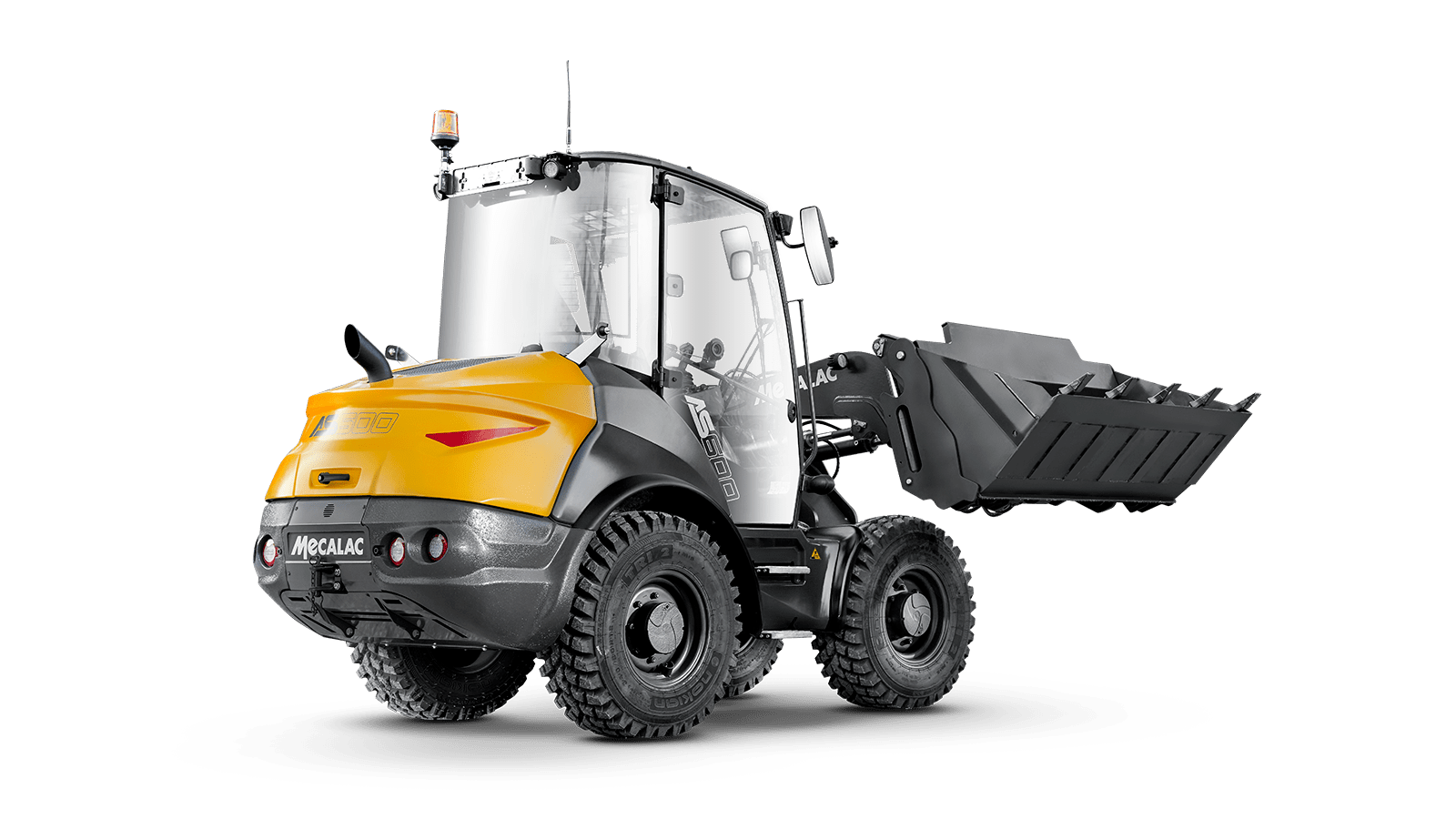

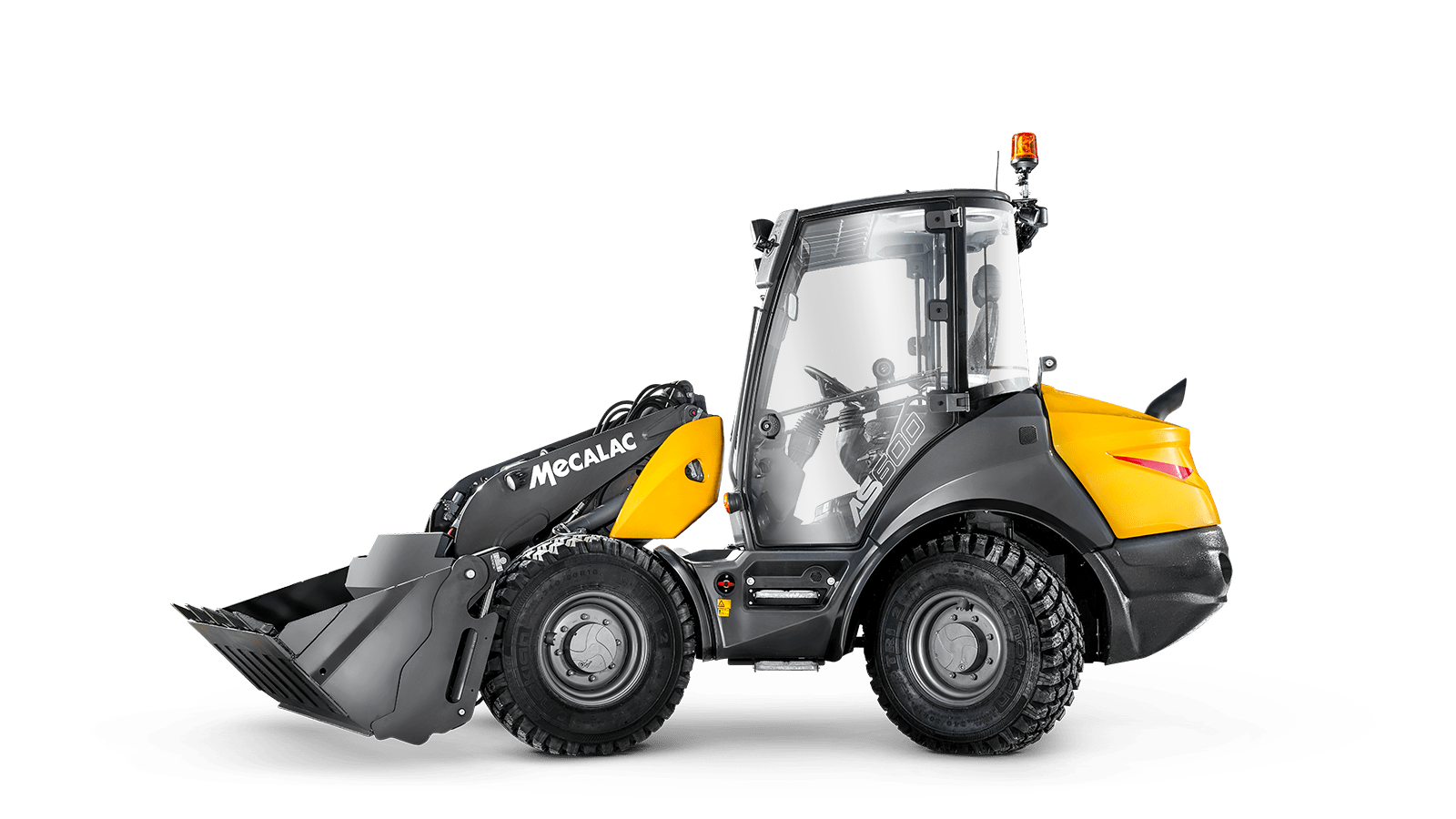

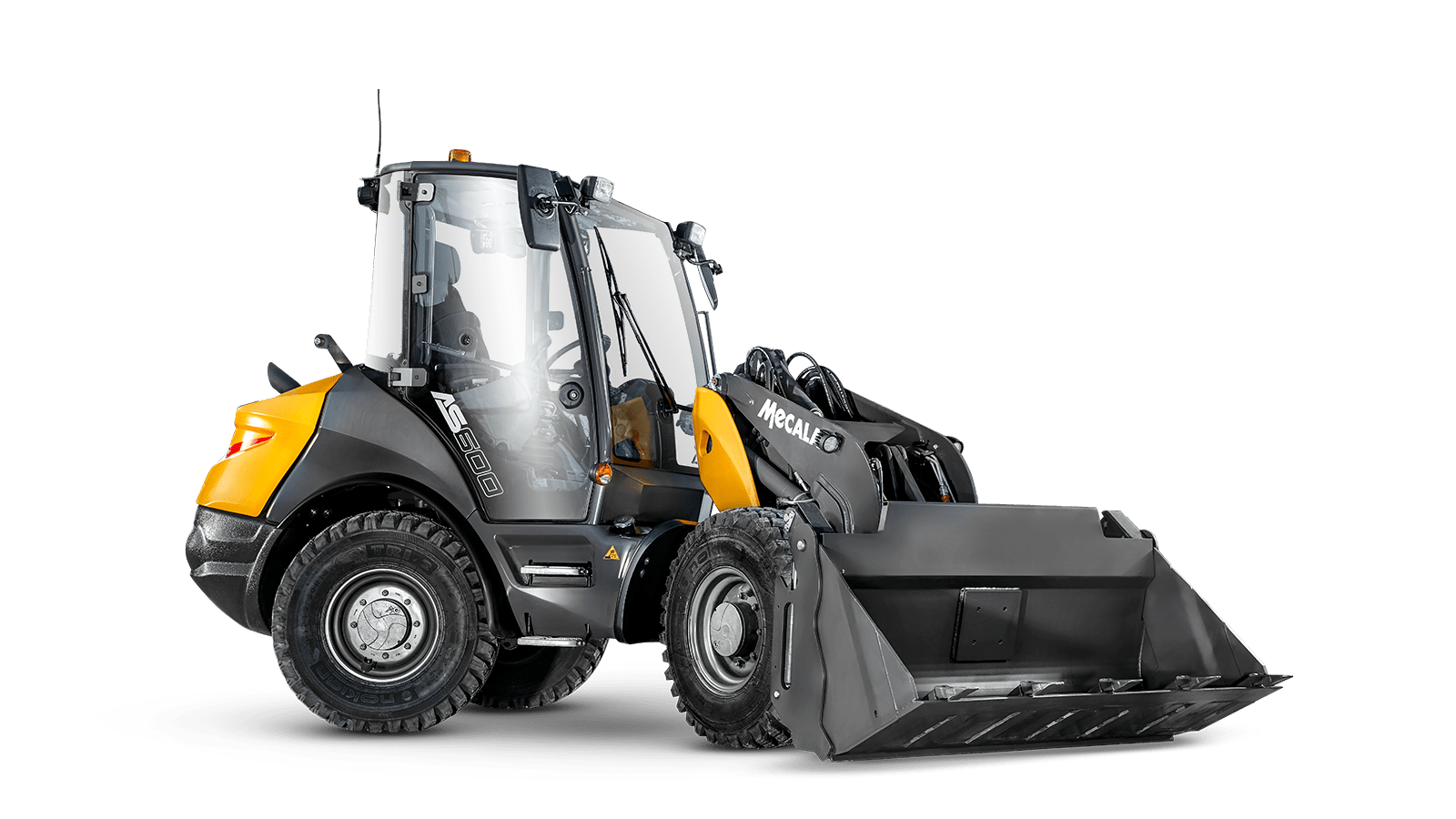

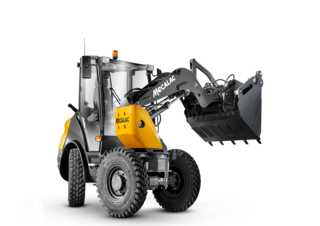

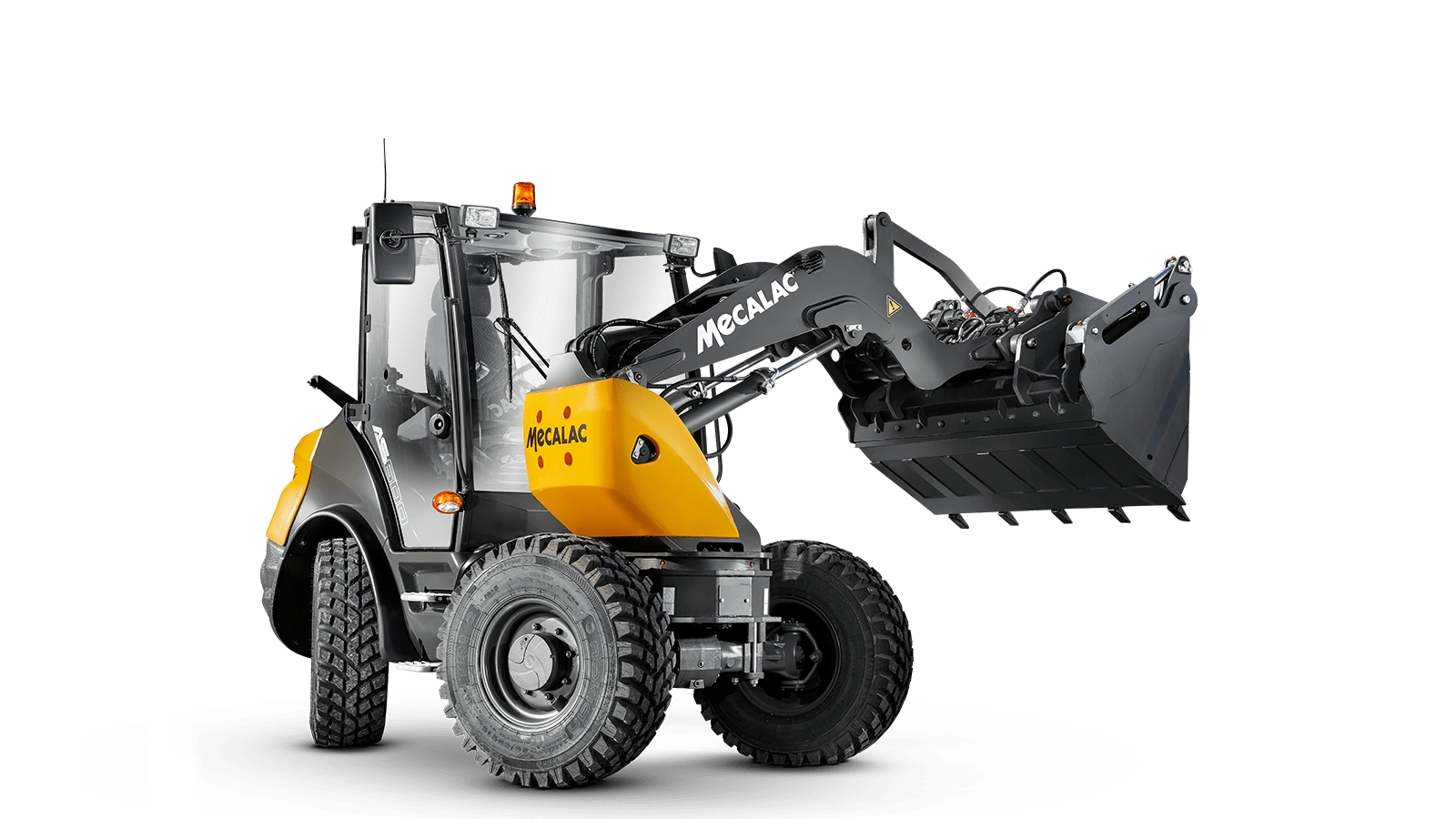

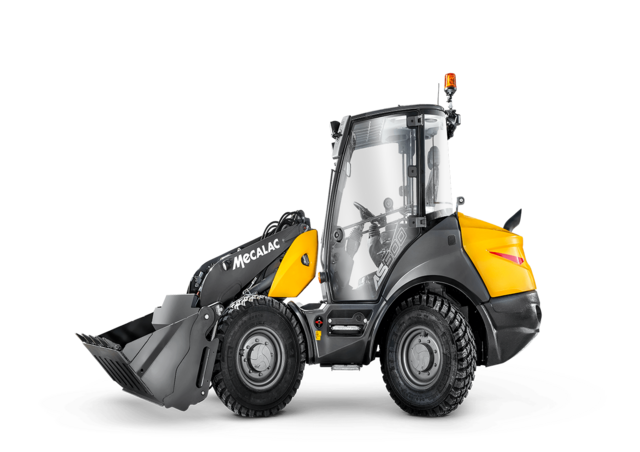

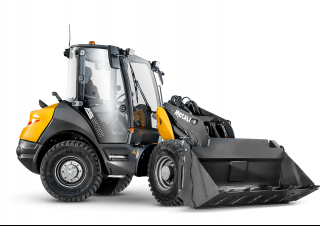

AS600 Mecalac AS600 Specifications & Technical Data (2018—2026)
.png)
.png)
.png)
.png)
.png)
.png)
Technical specs - AS600 Mecalac
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 4.4 t
- Standard tyres
- 12.5/80-18
- Bucket width
- 1.7 m
- Bucket capacity
- 0.6 m³
- Bucket capacity min.
- 0.6 m³
- Bucket capacity max.
- 0.8 m³
- Steering mode
- AL
- Transport length
- 4.95 m
- Transport width
- 1.68 m
- Transport height
- 2.49 m
- Travel speed
- 20 km/h
- Max. discharge height
- 2.57 m
- Turning radius outside
- 3.185 m
- Lifting force
- 17.3 kN
- Model series
- AS
- Engine manuf.
- Deutz
- Engine type
- TCD2.2 L3
- Engine power
- 36.4 kW
- Displacement
- 2.2 l
- Revolutions at max torque
- 2300 rpm
- Max. torque
- 180/1600 Nm
- No. of cylinders
- 3
- Emission level
- V
More technical details, like: dimension lxwxh, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin, std. shovel and teeth
Special equipment
- Diesel particulate filter
-
No
- Swing loader
-
Yes
- telescopic
-
No
- Aircondition
-
No
- Quick hitch hydr.
-
No
- Quick hitch mech.
-
No
