AS210e Mecalac AS210e Specifications & Technical Data (2020—2026)

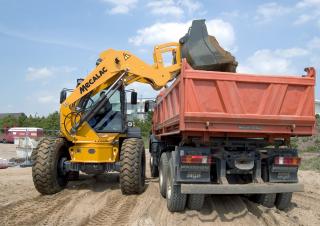

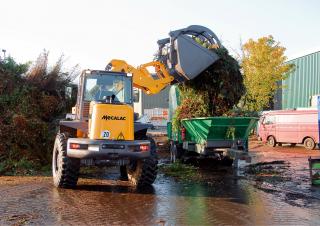

The Mecalac AS210e is a wheel loader manufactured since 2020. It has a weight of 15 tons and a transport length of 7.155 meters. T…

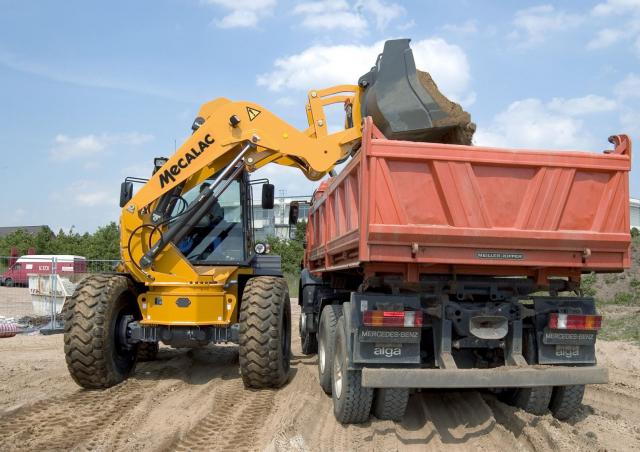

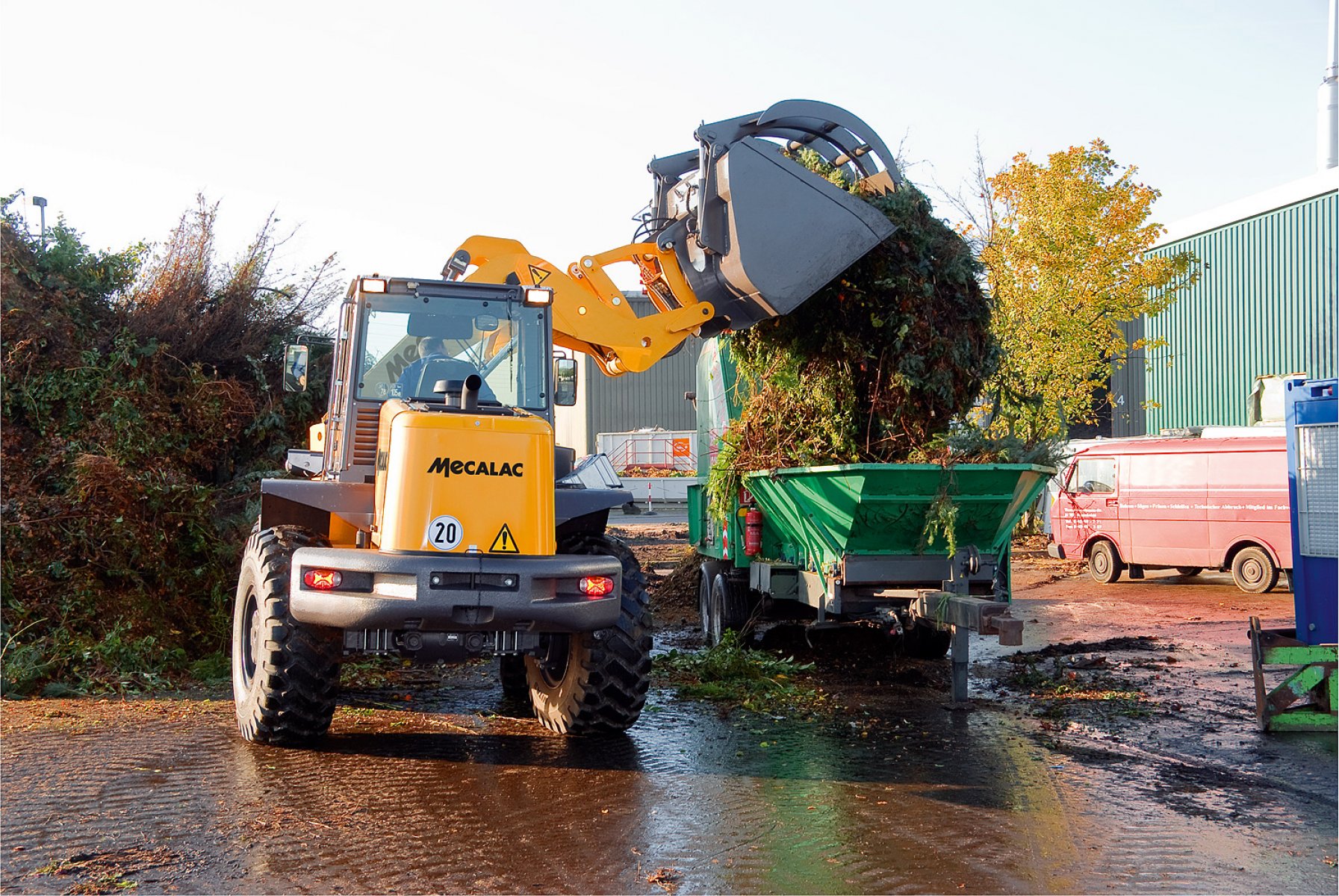

The Mecalac AS210e is a wheel loader manufactured since 2020. It has a weight of 15 tons and a transport length of 7.155 meters. The bucket capacity is 2.1 cubic meters, with a maximum discharge height of 3.42 meters. The travel speed is 20 km/h, and the transport width is 2.7 meters. The transport height is 3.155 meters. It has a lifting force of 106 kN and a turning radius outside of 4.9 meters. The bucket capacity ranges from a minimum of 2.1 cubic meters to a maximum of 3 cubic meters. The special equipment of this construction machine is a swing loader.

AS210e

Years of manufacture: 2020—2026

Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - AS210e Mecalac

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 15 t

Standard tyres: 20.5-25

Bucket capacity: 2.1 m³

Bucket capacity min.: 2.1 m³

Bucket capacity max.: 3 m³

Steering mode: AL

Transport length: 7.16 m

Transport width: 2.7 m

Transport height: 3.16 m

Travel speed: 20 km/h

Max. discharge height: 3.42 m

Turning radius outside: 4.9 m

Lifting force: 106 kN

Engine manuf.: Deutz

Engine type: TCD6.1 L6

Engine power: 129 kW

Displacement: 6.1 l

Revolutions at max torque: 2200 rpm

Max. torque: 750/1450 Nm

No. of cylinders: 6

Emission level: V

More technical details, like: bucket width, model series, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: Yes
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Mecalac AS210e FAQ

When was the Mecalac AS210e manufactured?

The Mecalac AS210e was first produced in 2020.

How much does the Mecalac AS210e weigh?

The Mecalac AS210e weighs 15 tons.

What are the transport dimensions of the Mecalac AS210e wheel loader?

The Mecalac AS210e has a transport length of 7.16 meters, a transport width of 2.7 meters, and a transport height of 3.16 meters.

What is the travel speed of the Mecalac AS210e wheel loader?

The Mecalac AS210e has a travel speed of 20 km/h.

What is the standard tyre size of the Mecalac AS210e wheel loader?

The Mecalac AS210e wheel loader is equipped with standard tyres of size 20.5-25.

What are the maneuverability specifications of the Mecalac AS210e wheel loader?

The Mecalac AS210e has an outside turning radius of 4.9 meters and features all-wheel steering.

What is the lifting force of the Mecalac AS210e wheel loader, given the available power-related specifications?

The Mecalac AS210e wheel loader has a lifting force of 106 kN, which is the only available power-related specification in the provided data.

What is the maximum discharge height of the Mecalac AS210e?

The Mecalac AS210e has a maximum discharge height of 3.42 meters.

What are the bucket capacity specifications of the Mecalac AS210e wheel loader?

The Mecalac AS210e has a bucket capacity of 2.1 cubic meters, with a minimum capacity of 2.1 cubic meters and a maximum capacity of 3 cubic meters.
