AS 900 Mecalac AS 900 Specifications & Technical Data (2012—2015)

The Mecalac AS 900 is a wheel loader manufactured by Mecalac from 2012 to 2015. It has a weight of 6.6 tons and a transport length…

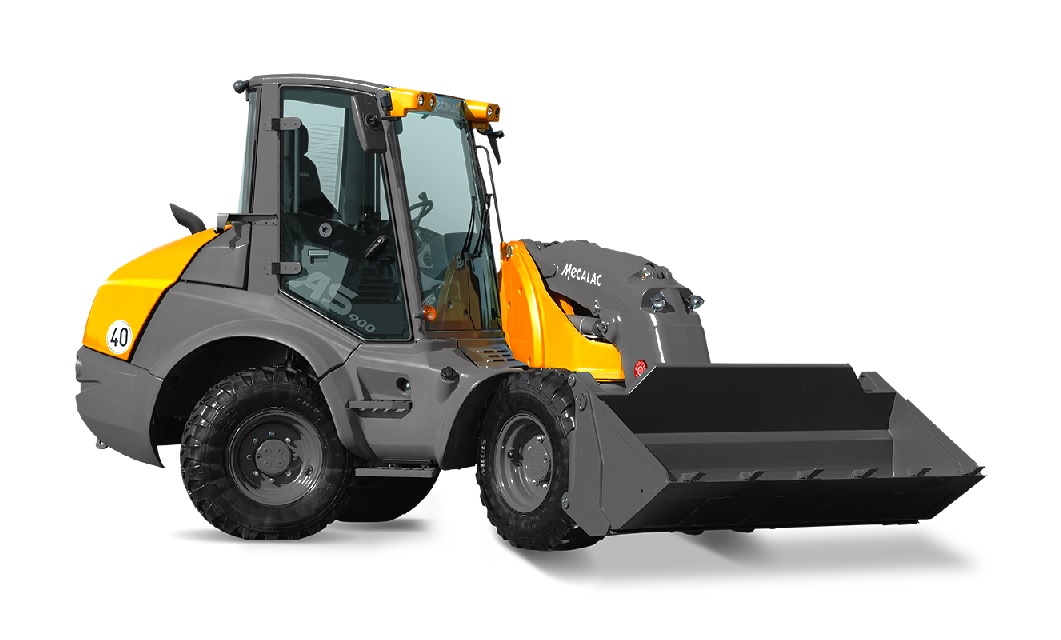

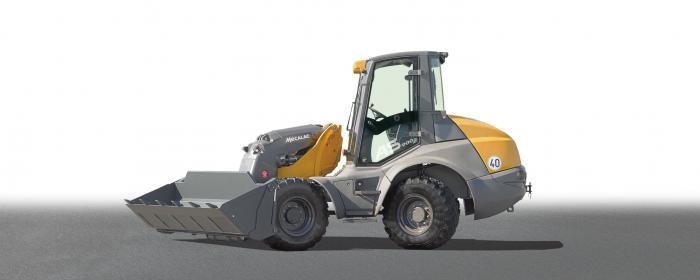

The Mecalac AS 900 is a wheel loader manufactured by Mecalac from 2012 to 2015. It has a weight of 6.6 tons and a transport length of 5.59 meters. The bucket capacity ranges from 0.9 to 1.5 cubic meters. The maximum discharge height is 3.13 meters. It has a travel speed of 30 km/h and a transport width of 2.1 meters. The transport height is 2.83 meters. Special equipment includes a quick hitch hydr. and a swing loader.

AS 900

Years of manufacture: 2012—2015

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - AS 900 Mecalac

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 6.6 t

Standard tyres: 14.5-20

Bucket capacity: 0.9 m³

Bucket capacity min.: 0.9 m³

Bucket capacity max.: 1.5 m³

Steering mode: AL

Transport length: 5.59 m

Transport width: 2.1 m

Transport height: 2.83 m

Travel speed: 30 km/h

Max. discharge height: 3.13 m

Model series: AS

Engine manuf.: Cummins

Engine type: B3.3ST

Engine power: 55 kW

Displacement: 3.3 l

Revolutions at max torque: 1600 rpm

More technical details, like: bucket width, turning radius outside, lifting force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: Yes
telescopic: No
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

Mecalac AS 900 FAQ

When was the Mecalac AS 900 manufactured?

The Mecalac AS 900 was manufactured from 2012 to 2015.

How much does the Mecalac AS 900 wheel loader weigh?

The Mecalac AS 900 wheel loader weighs 6.6 tons.

What are the transport dimensions of the Mecalac AS 900 wheel loader?

The Mecalac AS 900 has a transport length of 5.59 meters, a transport width of 2.1 meters, and a transport height of 2.83 meters.

What is the travel speed of the Mecalac AS 900 wheel loader?

The Mecalac AS 900 has a travel speed of 30 km/h.

What is the standard tyre size of the Mecalac AS 900?

The Mecalac AS 900 has standard tyres sized 14.5-20.

What is the steering mode of the Mecalac AS 900?

The Mecalac AS 900 has an all-wheel steering mode.

What is the maximum discharge height of the Mecalac AS 900?

The Mecalac AS 900 has a maximum discharge height of 3.13 meters.

What are the bucket capacity specifications of the Mecalac AS 900 wheel loader?

The Mecalac AS 900 has a bucket capacity of 0.9 mu00b3, with a minimum capacity of 0.9 mu00b3 and a maximum capacity of 1.5 mu00b3.
