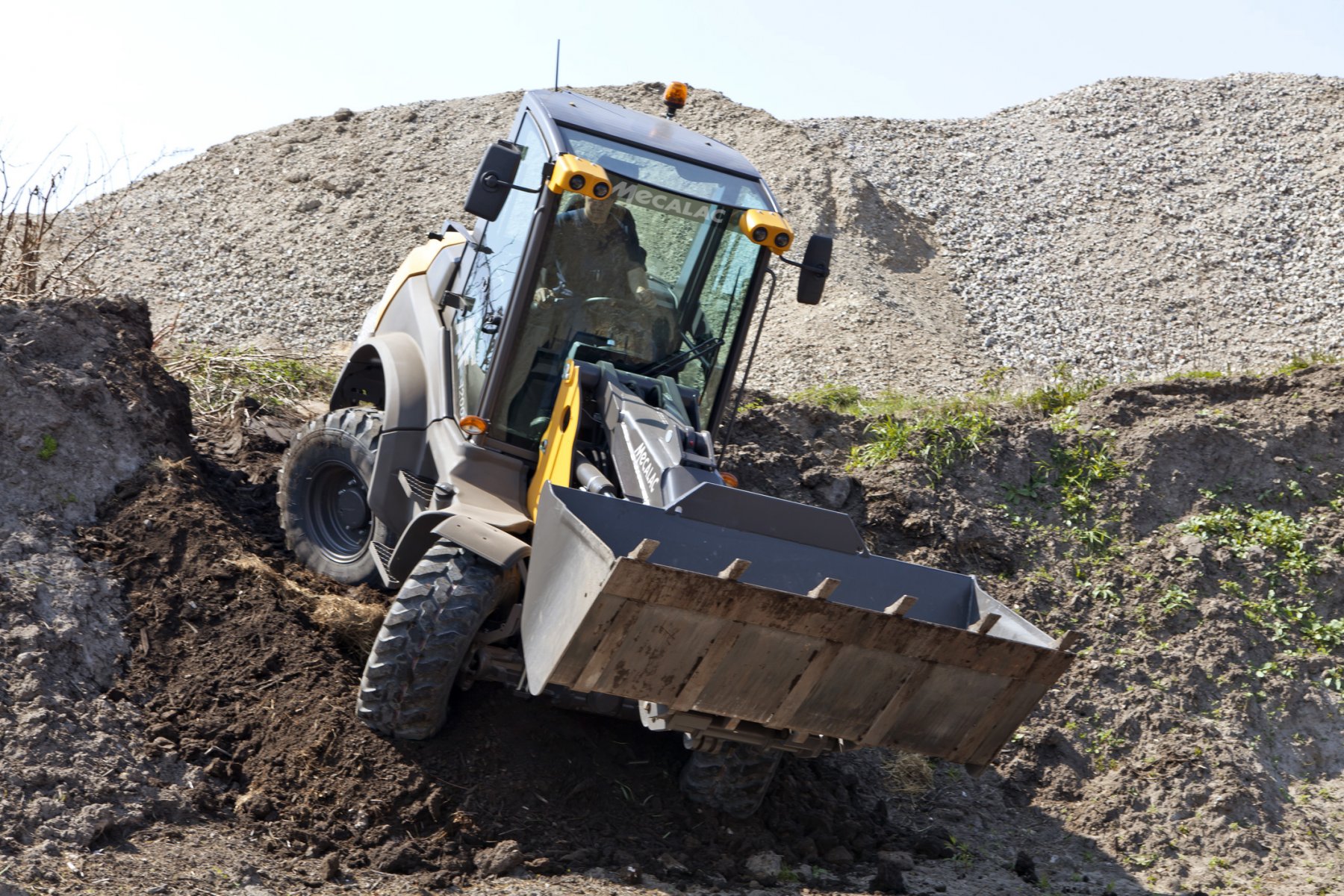

AF1200 Mecalac AF1200 Specifications & Technical Data (2021—2026)

The Mecalac AF1200 is a wheel loader manufactured since 2021. It has a weight of 6 tons and a transport length of 6.08 meters. The…

The Mecalac AF1200 is a wheel loader manufactured since 2021. It has a weight of 6 tons and a transport length of 6.08 meters. The bucket capacity is 1.2 cubic meters, with a maximum discharge height of 2.7 meters. The travel speed of this machine is 40 km/h. It has a transport width of 2.1 meters and a transport height of 2.83 meters. The lifting force is 77 kN, and the turning radius outside is 4.06 meters. The bucket capacity ranges from a minimum of 1.2 cubic meters to a maximum of 2 cubic meters. It is equipped with a quick hitch hydr. for added convenience.

AF1200

Years of manufacture: 2021—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - AF1200 Mecalac

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 6 t

Standard tyres: 16/17-20

Bucket capacity: 1.2 m³

Bucket capacity min.: 1.2 m³

Bucket capacity max.: 2 m³

Steering mode: AL

Transport length: 6.08 m

Transport width: 2.1 m

Transport height: 2.83 m

Travel speed: 40 km/h

Max. discharge height: 2.7 m

Turning radius outside: 4.06 m

Lifting force: 77 kN

Model series: AF

Engine manuf.: Deutz

Engine type: TCD2.9 L4

Engine power: 55.4 kW

Displacement: 2.9 l

Revolutions at max torque: 2300 rpm

Max. torque: 300/1600 Nm

No. of cylinders: 4

Cylinder bore x stroke: 92x110 mm

Emission level: EU V

More technical details, like: bucket width, dimension lxwxh are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

Mecalac AF1200 FAQ

When was the Mecalac AF1200 manufactured?

The Mecalac AF1200 was first produced in 2021.

How much does the Mecalac AF1200 wheel loader weigh?

The Mecalac AF1200 wheel loader weighs 6 tons.

What are the transport dimensions of the Mecalac AF1200 wheel loader?

The Mecalac AF1200 has a transport length of 6.08 meters, a transport width of 2.1 meters, and a transport height of 2.83 meters.

What is the travel speed of the Mecalac AF1200 wheel loader?

The Mecalac AF1200 has a travel speed of 40 km/h.

What is the standard tyre size of the Mecalac AF1200 wheel loader?

The Mecalac AF1200 wheel loader is equipped with standard tyres sized 16/17-20.

What are the maneuverability specifications of the Mecalac AF1200 wheel loader?

The Mecalac AF1200 has an outside turning radius of 4.06 meters and features all-wheel steering.

What is the power rating of the Mecalac AF1200 wheel loader?

The source data does not provide power rating information for the Mecalac AF1200 wheel loader.

What is the material handling capacity of the Mecalac AF1200 in terms of discharge height?

The Mecalac AF1200 has a maximum discharge height of 2.7 meters.

What are the bucket capacity specifications of the Mecalac AF1200 wheel loader?

The Mecalac AF1200 has a nominal bucket capacity of 1.2 mu00b3, with a minimum capacity of 1.2 mu00b3 and a maximum capacity of 2 mu00b3.
