AF1200 Mecalac AF1200 Specifications & Technical Data (2016—2020)

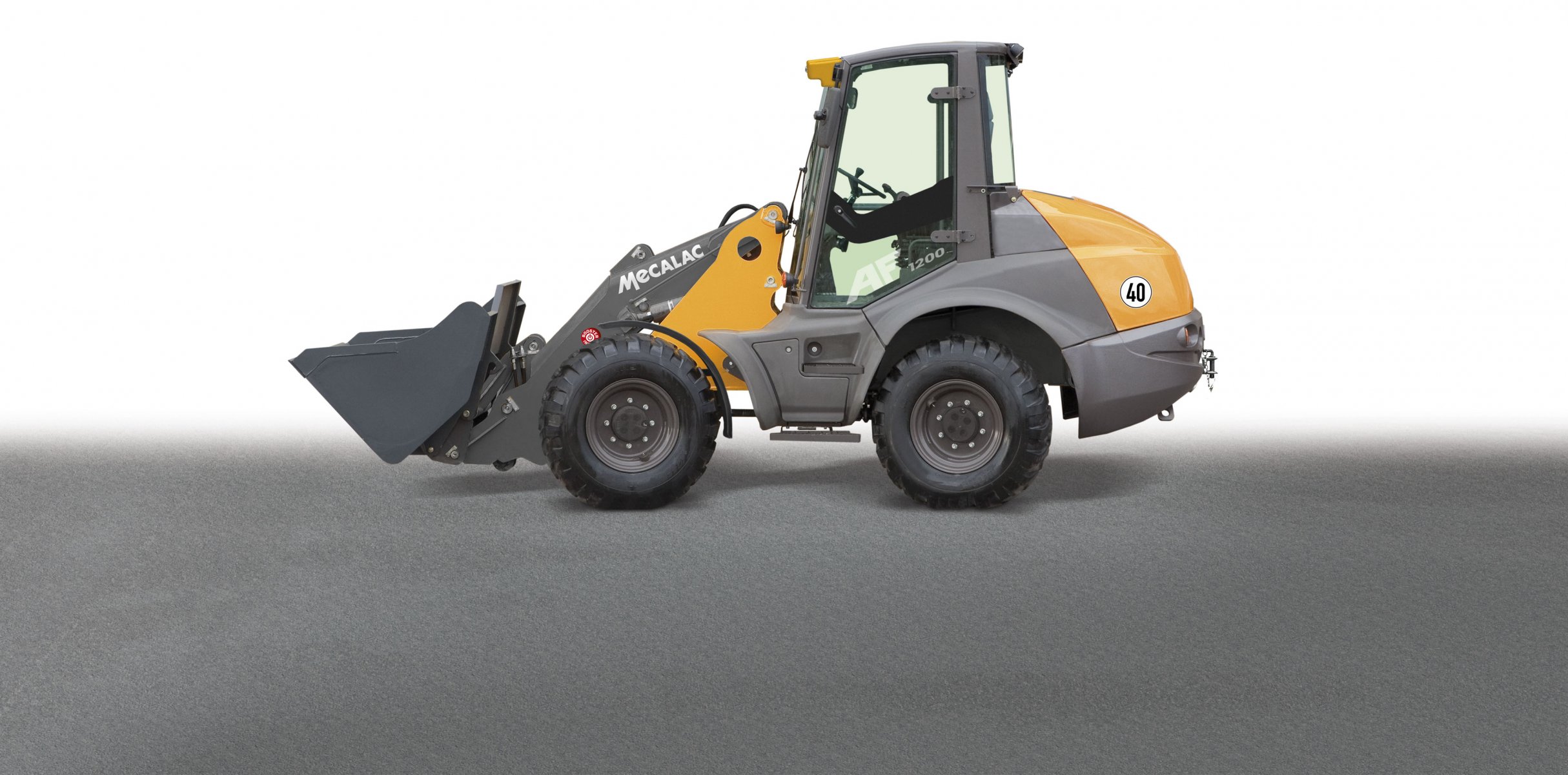

The Mecalac AF1200 is a wheel loader manufactured from 2016 to 2020. It has a weight of 6 tons and a transport length of 6.08 mete…

The Mecalac AF1200 is a wheel loader manufactured from 2016 to 2020. It has a weight of 6 tons and a transport length of 6.08 meters. The bucket capacity is 1.2 cubic meters, and the maximum discharge height is 2.7 meters. It has a travel speed of 40 km/h and a transport width of 2.1 meters. The transport height is 2.83 meters, and it has a lifting force of 77 kN. Special equipment includes a quick hitch hydraulic mechanism.

AF1200

Years of manufacture: 2016—2020

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - AF1200 Mecalac

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 6 t

Standard tyres: 16/17-20

Bucket capacity: 1.2 m³

Bucket capacity min.: 1.2 m³

Steering mode: AL

Transport length: 6.08 m

Transport width: 2.1 m

Transport height: 2.83 m

Travel speed: 40 km/h

Max. discharge height: 2.7 m

Lifting force: 77 kN

Model series: AF

Engine manuf.: Deutz

Engine type: TCD2.9 L4

Engine power: 55.4 kW

Revolutions at max torque: 2600 rpm

Max. torque: 300/1600 Nm

No. of cylinders: 4

Emission level: Tier 4 f

More technical details, like: bucket width, bucket capacity max., turning radius outside, dimension lxwxh, displacement, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

Mecalac AF1200 FAQ

When was the Mecalac AF1200 manufactured?

The Mecalac AF1200 was manufactured from 2016 to 2020.

How much does the Mecalac AF1200 weigh?

The Mecalac AF1200 weighs 6 tons.

What are the transport dimensions of the Mecalac AF1200 wheel loader?

The Mecalac AF1200 has a transport length of 6.08 meters, a transport width of 2.1 meters, and a transport height of 2.83 meters.

What is the travel speed of the Mecalac AF1200 wheel loader?

The Mecalac AF1200 has a travel speed of 40 km/h.

What are the undercarriage specifications of the Mecalac AF1200 wheel loader?

The Mecalac AF1200 wheel loader is equipped with standard tyres sized 16/17-20.

What is the steering mode of the Mecalac AF1200?

The Mecalac AF1200 has an all-wheel steering mode.

What is the lifting force of the Mecalac AF1200?

The Mecalac AF1200 has a lifting force of 77 kN.

What is the maximum discharge height of the Mecalac AF1200?

The Mecalac AF1200 has a maximum discharge height of 2.7 meters.

What is the bucket capacity of the Mecalac AF1200 wheel loader?

The Mecalac AF1200 wheel loader has a bucket capacity of 1.2 cubic meters.
