AF 1050 Mecalac AF 1050 Specifications & Technical Data (2012—2015)

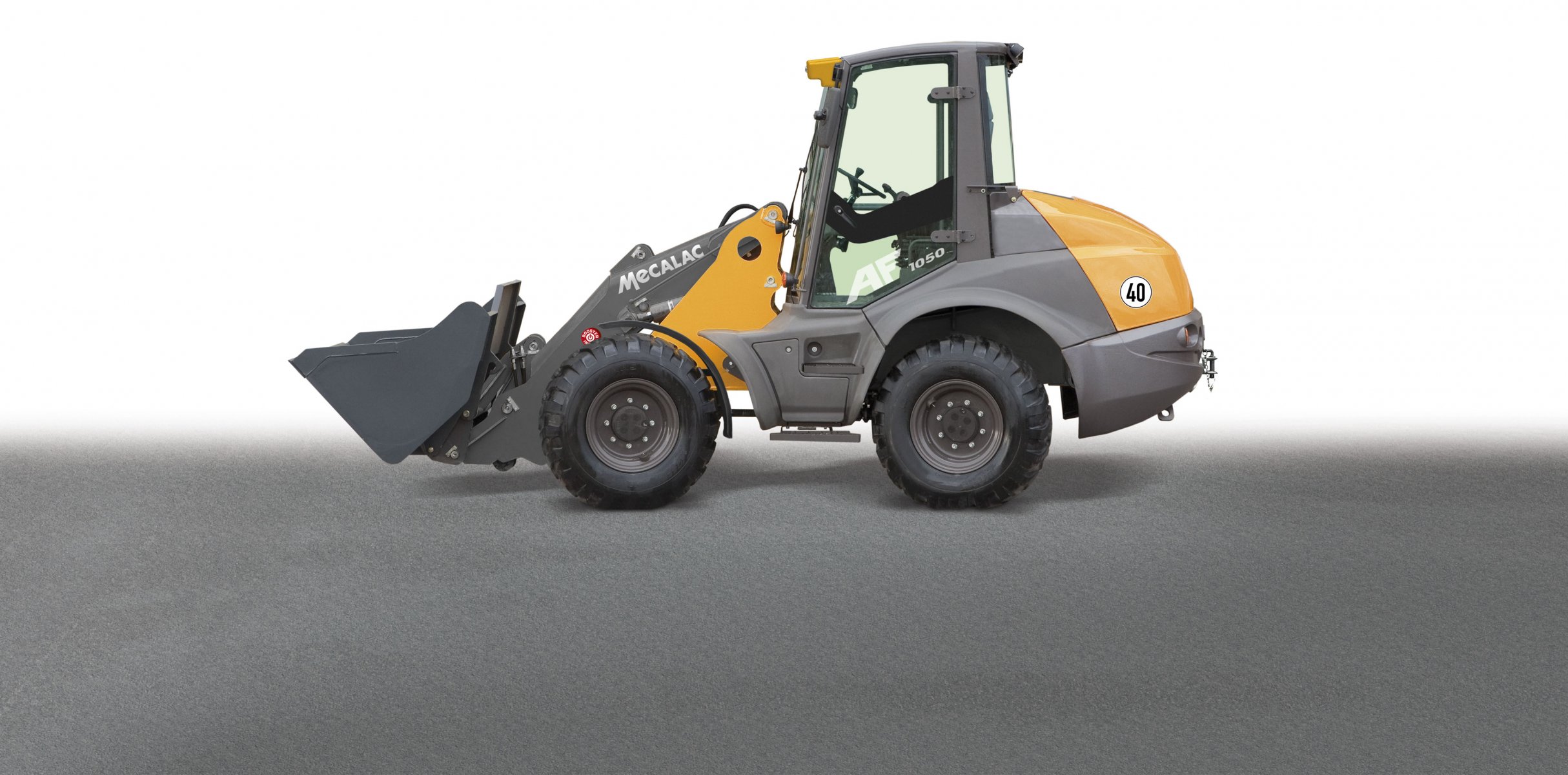

The Mecalac AF 1050 is a wheel loader manufactured by Mecalac from 2012 to 2015. It has a weight of 5.8 tons and a transport lengt…

The Mecalac AF 1050 is a wheel loader manufactured by Mecalac from 2012 to 2015. It has a weight of 5.8 tons and a transport length of 6.03 meters. The bucket capacity is 1.05 cubic meters, with a maximum discharge height of 2.85 meters. The travel speed of this machine is 40 km/h. It has a transport width of 2.1 meters and a transport height of 2.83 meters. The lifting force is 65 kN. The special equipment included is a quick hitch hydr. The bucket capacity ranges from a minimum of 1.05 cubic meters to a maximum of 1.7 cubic meters.

AF 1050

Years of manufacture: 2012—2015

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - AF 1050 Mecalac

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5.8 t

Standard tyres: 14.5-20

Bucket capacity: 1.05 m³

Bucket capacity min.: 1.05 m³

Bucket capacity max.: 1.7 m³

Steering mode: AL

Transport length: 6.03 m

Transport width: 2.1 m

Transport height: 2.83 m

Travel speed: 40 km/h

Max. discharge height: 2.85 m

Lifting force: 65 kN

Model series: AF

Engine manuf.: Cummins

Engine type: B3.3

Engine power: 48 kW

Displacement: 3.3 l

Revolutions at max torque: 1600 rpm

More technical details, like: bucket width, turning radius outside, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

Mecalac AF 1050 FAQ

When was the Mecalac AF 1050 manufactured?

The Mecalac AF 1050 was manufactured from 2012 to 2015.

How much does the Mecalac AF 1050 weigh?

The Mecalac AF 1050 weighs 5.8 tons.

What are the transport dimensions of the Mecalac AF 1050 wheel loader?

The Mecalac AF 1050 has a transport length of 6.03 meters, a transport width of 2.1 meters, and a transport height of 2.83 meters.

What is the travel speed of the Mecalac AF 1050 wheel loader?

The Mecalac AF 1050 has a travel speed of 40 km/h.

What are the undercarriage specifications of the Mecalac AF 1050 wheel loader?

The Mecalac AF 1050 is equipped with standard tyres sized 14.5-20.

What is the steering mode of the Mecalac AF 1050 wheel loader?

The Mecalac AF 1050 features an all-wheel steering mode.

What is the lifting force of the Mecalac AF 1050 wheel loader?

The Mecalac AF 1050 wheel loader has a lifting force of 65 kN.

What is the maximum discharge height of the Mecalac AF 1050 wheel loader?

The Mecalac AF 1050 has a maximum discharge height of 2.85 meters.

What are the bucket capacity specifications of the Mecalac AF 1050 wheel loader?

The Mecalac AF 1050 wheel loader has a bucket capacity of 1.05 mu00b3, with a minimum capacity of 1.05 mu00b3 and a maximum capacity of 1.7 mu00b3.

How much is a Mecalac AF 1050 Wheel loader (2012u20132015) worth?

The residual value of the Mecalac AF 1050 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
