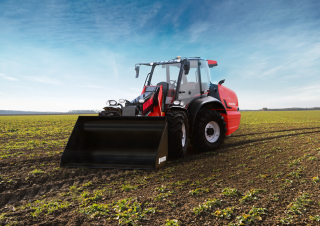

MLA-T 533-145 Manitou MLA-T 533-145 Specifications & Technical Data (2021—2026)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Visit Manitou live at
Technical specs - MLA-T 533-145 Manitou
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 8.43 t
- Standard tyres
- 460/70 R24 159A8
- Steering mode
- KL
- Transport length
- 5.72 m
- Transport width
- 2.29 m
- Transport height
- 2.7 m
- Travel speed
- 40 km/h
- Max. discharge height
- 5.2 m
- Turning radius outside
- 4.2 m
- Lifting force
- 673 kN
- Engine manuf.
- Deutz
- Engine type
- TCD4.1 L4
- Engine power
- 105 kW
- Displacement
- 4.038 l
- Max. torque
- 550/1600 Nm
- No. of cylinders
- 4
- Emission level
- V
More technical details, like: bucket width, bucket capacity, bucket capacity min., bucket capacity max., model series, dimension lxwxh, revolutions at max torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin, std. shovel and teeth
Special equipment
- Diesel particulate filter
-
No
- Swing loader
-
No
- telescopic
-
Yes
- Aircondition
-
No
- Quick hitch hydr.
-
No
- Quick hitch mech.
-
No
