MLA 6-65 H-Z Manitou MLA 6-65 H-Z Specifications & Technical Data (2021—2026)

The Manitou MLA 6-65 H-Z is a wheel loader manufactured since 2021. It has a weight of 4.309 tons and a transport length of 4.26 m…

The Manitou MLA 6-65 H-Z is a wheel loader manufactured since 2021. It has a weight of 4.309 tons and a transport length of 4.26 meters. The maximum discharge height is 3.32 meters, and it can travel at a speed of 30 km/h. The transport width is 1.65 meters, and the transport height is 2.47 meters. It has a lifting force of 574 kN.

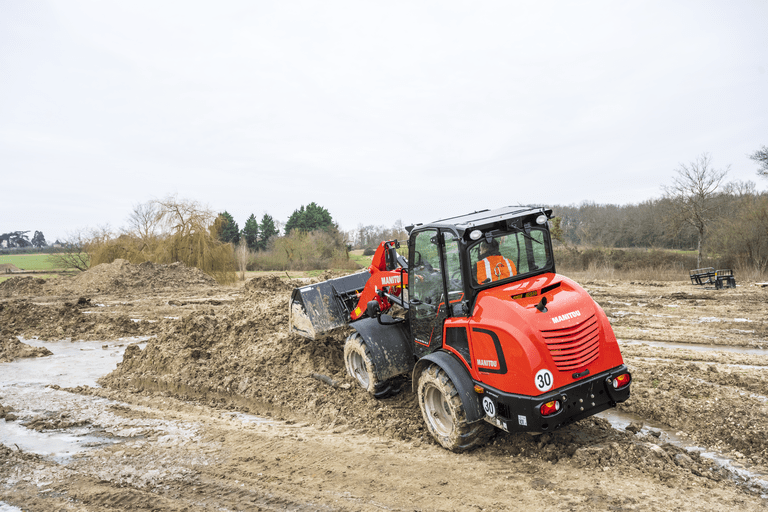

Wheel Loaders Manitou MLA 6-65 H-Z
Wheel Loaders Manitou MLA 6-65 H-Z
Wheel Loaders Manitou MLA 6-65 H-Z
Wheel Loaders Manitou MLA 6-65 H-Z
Wheel Loaders Manitou MLA 6-65 H-Z
Wheel Loaders Manitou MLA 6-65 H-Z
Wheel Loaders Manitou MLA 6-65 H-Z
Wheel Loaders Manitou MLA 6-65 H-Z
Wheel Loaders Manitou MLA 6-65 H-Z
Wheel Loaders Manitou MLA 6-65 H-Z

Visit Manitou live at

Technical specs - MLA 6-65 H-Z Manitou

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.309 t
Steering mode
KL
Transport length
4.26 m
Transport width
1.65 m
Transport height
2.47 m
Travel speed
30 km/h
Max. discharge height
3.32 m
Lifting force
574 kN
Engine manuf.
Yanmar
Engine type
4TNV98CT PGWL1
Engine power
48.5 kW
Displacement
3.3 l
Max. torque
280/1560 Nm
No. of cylinders
4
Emission level
3B

More technical details, like: standard tyres, bucket width, bucket capacity, bucket capacity min., bucket capacity max., turning radius outside, model series, dimension lxwxh, revolutions at max torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Manitou MLA 6-65 H-Z FAQ

When was the Manitou MLA 6-65 H-Z manufactured?

The Manitou MLA 6-65 H-Z was first produced in 2021.

How much does the Manitou MLA 6-65 H-Z wheel loader weigh?

The Manitou MLA 6-65 H-Z wheel loader weighs 4.31 tons.

What are the transport dimensions of the Manitou MLA 6-65 H-Z?

The Manitou MLA 6-65 H-Z has a transport length of 4.26 meters, a transport width of 1.65 meters, and a transport height of 2.47 meters.

What is the travel speed of the Manitou MLA 6-65 H-Z?

The Manitou MLA 6-65 H-Z has a travel speed of 30 km/h.

What is the steering mode of the Manitou MLA 6-65 H-Z?

The Manitou MLA 6-65 H-Z has articulated-frame steering.

What is the lifting force of the Manitou MLA 6-65 H-Z wheel loader?

The Manitou MLA 6-65 H-Z wheel loader has a lifting force of 574 kN.

What is the maximum discharge height of the Manitou MLA 6-65 H-Z wheel loader?

The Manitou MLA 6-65 H-Z wheel loader has a maximum discharge height of 3.32 meters.

How much is a Manitou MLA 6-65 H-Z Wheel loader (2021u20132025) worth?

The residual value of the Manitou MLA 6-65 H-Z depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
