CDM835 Lonking CDM835 Specifications & Technical Data (2017—2026)

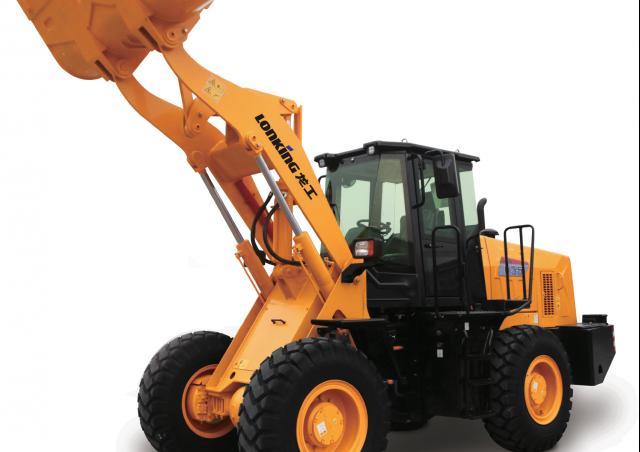

The Lonking CDM835 is a wheel loader manufactured since 2017. It has a weight of 11.62 tons and a transport length of 7.52 meters.…

The Lonking CDM835 is a wheel loader manufactured since 2017. It has a weight of 11.62 tons and a transport length of 7.52 meters. The bucket capacity is 1.8 cubic meters with a width of 2.5 meters. The maximum discharge height is 2.806 meters. It has a travel speed of 32 km/h and a transport width of 2.5 meters. The transport height is 3.18 meters. The lifting force is 106 kN. The bucket capacity minimum is 1.8 cubic meters. It is equipped with air conditioning.

CDM835

Years of manufacture: 2017—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - CDM835 Lonking

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 11.62 t

Standard tyres: 17.5-25 L-3 12PRTT

Bucket width: 2.5 m

Bucket capacity: 1.8 m³

Bucket capacity min.: 1.8 m³

Steering mode: KL

Transport length: 7.52 m

Transport width: 2.5 m

Transport height: 3.18 m

Travel speed: 32 km/h

Max. discharge height: 2.806 m

Lifting force: 106 kN

Model series: CDM

Engine manuf.: Weichai

Engine type: WP6G140E22

Engine power: 105 kW

Displacement: 6.754 l

Max. torque: 560 Nm

No. of cylinders: 6

Cylinder bore x stroke: 105x130 mm

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Lonking CDM835 FAQ

When was the Lonking CDM835 manufactured?

The Lonking CDM835 was first produced in 2017.

How much does the Lonking CDM835 wheel loader weigh?

The Lonking CDM835 wheel loader weighs 11.62 tons.

What are the transport dimensions of the Lonking CDM835 wheel loader?

The Lonking CDM835 has a transport length of 7.52 meters, a transport width of 2.5 meters, and a transport height of 3.18 meters.

What is the travel speed of the Lonking CDM835 wheel loader?

The Lonking CDM835 has a travel speed of 32 km/h.

What are the undercarriage specifications of the Lonking CDM835 wheel loader?

The Lonking CDM835 wheel loader is equipped with standard tyres sized 17.5-25 L-3 12PRTT.

What is the steering mode of the Lonking CDM835 wheel loader?

The Lonking CDM835 wheel loader has articulated-frame steering.

What is the lifting force of the Lonking CDM835 wheel loader?

The Lonking CDM835 wheel loader has a lifting force of 106 kN.

What is the maximum discharge height of the Lonking CDM835?

The Lonking CDM835 has a maximum discharge height of 2.81 meters.

What are the specifications of the bucket on the Lonking CDM835 wheel loader?

The Lonking CDM835 wheel loader has a bucket with a capacity of 1.8 cubic meters, a minimum bucket capacity of 1.8 cubic meters, and a bucket width of 2.5 meters.
