840H Liugong 840H Specifications & Technical Data (2018—2025)

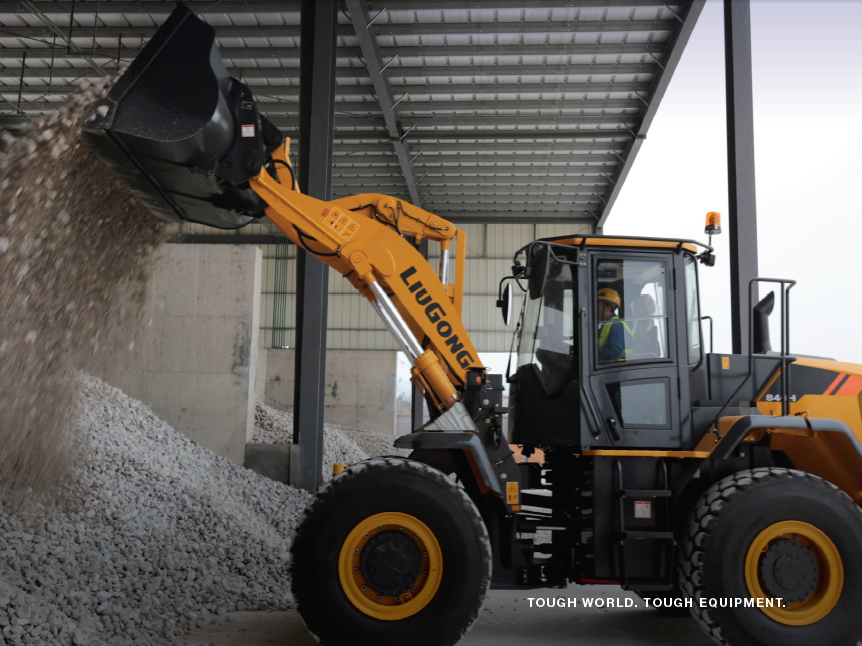

The Liugong 840H is a wheel loader manufactured since 2018. It has a weight of 12.48 tons and a transport length of 7.5 meters. Th…

The Liugong 840H is a wheel loader manufactured since 2018. It has a weight of 12.48 tons and a transport length of 7.5 meters. The bucket capacity is 2.1 cubic meters, with a maximum discharge height of 2.83 meters. The travel speed of this machine is 38.2 km/h. It has a transport width of 2.47 meters and a transport height of 3.31 meters. The lifting force is 116 kN, and the turning radius outside is 5.43 meters. The bucket capacity ranges from a minimum of 1.5 cubic meters to a maximum of 3 cubic meters. Additionally, it is equipped with air conditioning.

Wheel Loaders Liugong 840H

Visit Liugong live at

Technical specs - 840H Liugong

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
12.48 t
Standard tyres
20.5-25
Bucket capacity
2.1 m³
Bucket capacity min.
1.5 m³
Bucket capacity max.
3 m³
Transport length
7.5 m
Transport width
2.47 m
Transport height
3.31 m
Travel speed
38.2 km/h
Max. discharge height
2.83 m
Turning radius outside
5.43 m
Lifting force
116 kN
Engine manuf.
Perkins
Engine type
1204F-E44TAN
Engine power
106.4 kW
Displacement
4.4 l
Revolutions at max torque
2200 rpm
Max. torque
650/1400 Nm
No. of cylinders
4
Emission level
Tier 4f/EU IV

More technical details, like: bucket width, steering mode, model series, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liugong 840H FAQ

When was the Liugong 840H manufactured?

The Liugong 840H was first produced in 2018.

How much does the Liugong 840H wheel loader weigh?

The Liugong 840H wheel loader weighs 12.48 tons.

What are the transport dimensions of the Liugong 840H wheel loader?

The Liugong 840H wheel loader has a transport length of 7.5 meters, a transport width of 2.47 meters, and a transport height of 3.31 meters.

What is the travel speed of the Liugong 840H wheel loader?

The Liugong 840H wheel loader has a travel speed of 38.2 km/h.

What is the standard tyre size of the Liugong 840H wheel loader?

The Liugong 840H wheel loader has standard tyres sized 20.5-25.

What is the outside turning radius of the Liugong 840H wheel loader?

The Liugong 840H wheel loader has an outside turning radius of 5.43 meters.

What is the power rating of the Liugong 840H wheel loader?

The source data does not provide information about the power rating of the Liugong 840H wheel loader.

What is the maximum discharge height of the Liugong 840H?

The Liugong 840H has a maximum discharge height of 2.83 meters.

What are the bucket capacity specifications of the Liugong 840H wheel loader?

The Liugong 840H wheel loader has a bucket capacity of 2.1 mu00b3, with a maximum capacity of 3 mu00b3 and a minimum capacity of 1.5 mu00b3.

How much is a Liugong 840H Wheel loader (2018u20132025) worth?

The residual value of the Liugong 840H depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
