L 546 Liebherr L 546 Specifications & Technical Data (2022—2026)

The Liebherr L 546 is a wheel loader manufactured since 2022. It has a weight of 15.41 tons and a transport length of 7.72 meters.…

The Liebherr L 546 is a wheel loader manufactured since 2022. It has a weight of 15.41 tons and a transport length of 7.72 meters. The bucket capacity is 3 cubic meters, with a bucket width of 2.72 meters. The maximum discharge height is 2.9 meters. It has a travel speed of 40 km/h and a transport width and height of 2.72 meters and 3.25 meters respectively. The turning radius outside is 6.165 meters. The machine is equipped with a diesel particulate filter. The bucket capacity ranges from a minimum of 2.6 cubic meters to a maximum of 7.5 cubic meters.

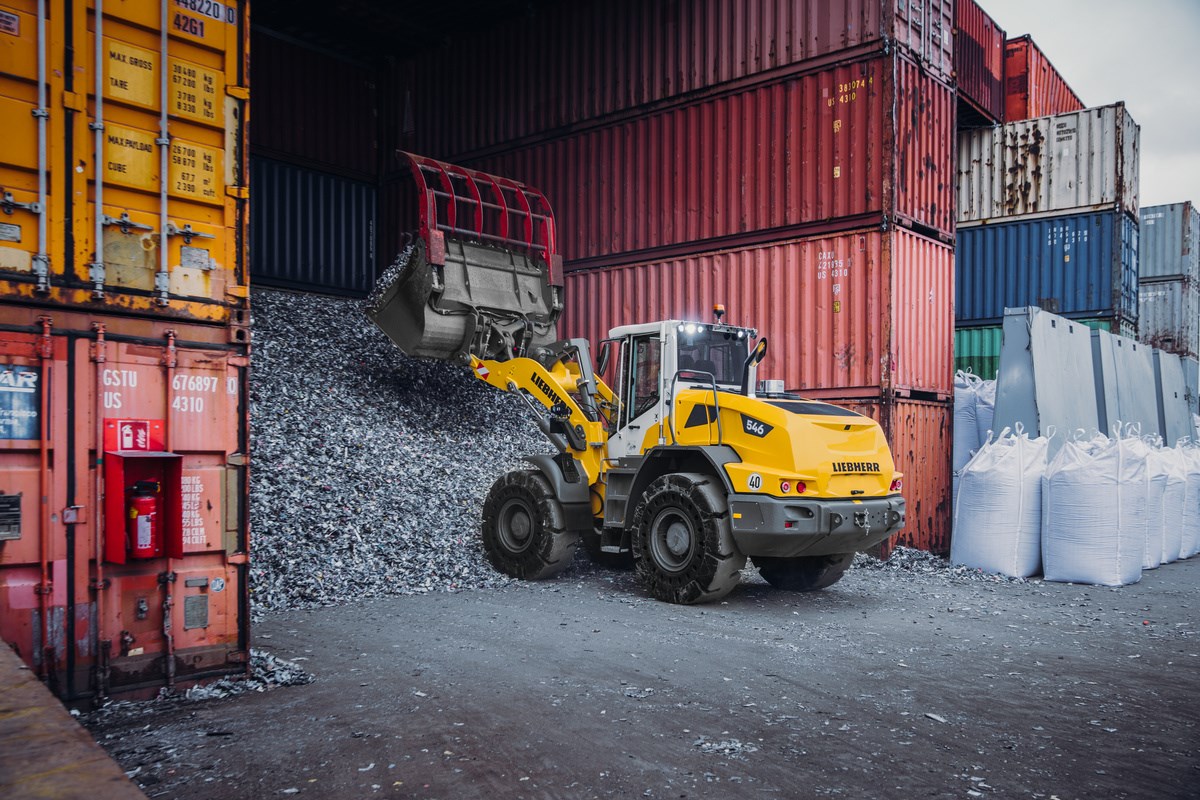

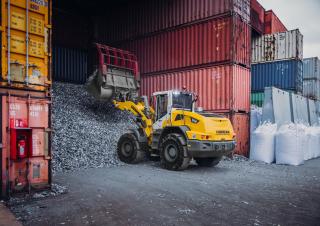

Wheel Loaders Liebherr L 546
Wheel Loaders Liebherr L 546
Wheel Loaders Liebherr L 546
Wheel Loaders Liebherr L 546
Wheel Loaders Liebherr L 546
Wheel Loaders Liebherr L 546
Wheel Loaders Liebherr L 546
Wheel Loaders Liebherr L 546

Visit Liebherr live at

Technical specs - L 546 Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
15.41 t
Standard tyres
20.5 R25
Bucket width
2.72 m
Bucket capacity
3 m³
Bucket capacity min.
2.6 m³
Bucket capacity max.
7.5 m³
Steering mode
KL
Transport length
7.72 m
Transport width
2.72 m
Transport height
3.25 m
Travel speed
40 km/h
Max. discharge height
2.9 m
Turning radius outside
6.165 m
Model series
L
Engine manuf.
John Deere
Engine type
6068HB551
Engine power
138 kW
Displacement
6.8 l
Revolutions at max torque
2000 rpm
Max. torque
809/1600 Nm
No. of cylinders
6
Cylinder bore x stroke
106x127 mm
Emission level
V

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
Yes
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Liebherr L 546 FAQ

When was the Liebherr L 546 manufactured?

The Liebherr L 546 was first produced in 2022.

How much does the Liebherr L 546 wheel loader weigh?

The Liebherr L 546 wheel loader weighs 15.41 tons.

What are the transport dimensions of the Liebherr L 546 wheel loader?

The Liebherr L 546 has a transport length of 7.72 meters, a transport width of 2.72 meters, and a transport height of 3.25 meters.

What is the travel speed of the Liebherr L 546 wheel loader?

The Liebherr L 546 wheel loader has a travel speed of 40 km/h.

What is the average fuel consumption of the Liebherr L 546 wheel loader?

The Liebherr L 546 wheel loader has an average fuel consumption of 8.79 liters per hour.

What are the undercarriage specifications of the Liebherr L 546 wheel loader?

The Liebherr L 546 wheel loader is equipped with standard tyres sized 20.5 R25.

What are the maneuverability specifications of the Liebherr L 546 wheel loader?

The Liebherr L 546 wheel loader has an articulated-frame steering mode and an outside turning radius of 6.165 meters.

What is the maximum discharge height of the Liebherr L 546?

The Liebherr L 546 has a maximum discharge height of 2.9 meters.

What are the bucket specifications of the Liebherr L 546 wheel loader?

The Liebherr L 546 wheel loader has a bucket capacity of 3 cubic meters, with a maximum capacity of 7.5 cubic meters and a minimum capacity of 2.6 cubic meters, and the bucket width is 2.72 meters.

How much is a Liebherr L 546 Wheel loader (2022u20132025) worth?

The residual value of the Liebherr L 546 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
