L 546 Liebherr L 546 Specifications & Technical Data (2016—2020)

The Liebherr L 546 is a wheel loader manufactured from 2016 to 2020. It has a weight of 14.2 tons and a transport length of 7.56 m…

The Liebherr L 546 is a wheel loader manufactured from 2016 to 2020. It has a weight of 14.2 tons and a transport length of 7.56 meters. The bucket capacity ranges from 2.5 to 7.5 cubic meters, with a bucket width of 2.5 meters. The maximum discharge height is 2.825 meters. It has a travel speed of 40 km/h and a transport width of 2.5 meters. The transport height is 3.25 meters, and the turning radius outside is 6.02 meters. Special equipment includes a diesel particulate filter.

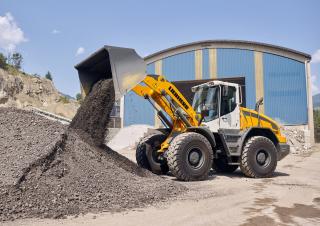

Wheel Loaders Liebherr L 546
Wheel Loaders Liebherr L 546
Wheel Loaders Liebherr L 546
Wheel Loaders Liebherr L 546

Visit Liebherr live at

Technical specs - L 546 Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
14.2 t
Standard tyres
20.5 R25
Bucket width
2.5 m
Bucket capacity
2.8 m³
Bucket capacity min.
2.5 m³
Bucket capacity max.
7.5 m³
Steering mode
KL
Transport length
7.56 m
Transport width
2.5 m
Transport height
3.25 m
Travel speed
40 km/h
Max. discharge height
2.825 m
Turning radius outside
6.02 m
Model series
L
Engine manuf.
John Deere
Engine type
4045HLC09
Engine power
120 kW
Displacement
4.5 l
Revolutions at max torque
1500 rpm
Max. torque
682 Nm
No. of cylinders
4
Cylinder bore x stroke
106x127 mm
Emission level
IV

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
Yes
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liebherr L 546 FAQ

When was the Liebherr L 546 manufactured?

The Liebherr L 546 was manufactured from 2016 to 2020.

How much does the Liebherr L 546 wheel loader weigh?

The Liebherr L 546 wheel loader weighs 14.2 tons.

What are the transport dimensions of the Liebherr L 546 wheel loader?

The Liebherr L 546 wheel loader has a transport length of 7.56 meters, a transport width of 2.5 meters, and a transport height of 3.25 meters.

What is the travel speed of the Liebherr L 546 wheel loader?

The Liebherr L 546 wheel loader has a travel speed of 40 km/h.

What is the fuel consumption range of the Liebherr L 546 wheel loader?

The fuel consumption range of the Liebherr L 546 wheel loader is 5 to 9 liters per hour.

What is the standard tyre size of the Liebherr L 546 wheel loader?

The Liebherr L 546 wheel loader is equipped with standard tyres sized 20.5 R25.

What are the maneuverability specifications of the Liebherr L 546 wheel loader?

The Liebherr L 546 wheel loader has an articulated-frame steering system and an outside turning radius of 6.02 meters.

What is the maximum discharge height of the Liebherr L 546?

The Liebherr L 546 has a maximum discharge height of 2.83 meters.

What are the bucket specifications of the Liebherr L 546 wheel loader?

The Liebherr L 546 wheel loader has a bucket capacity of 2.8 mu00b3, with a maximum capacity of 7.5 mu00b3 and a minimum capacity of 2.5 mu00b3, and a bucket width of 2.5 meters.

How much is a Liebherr L 546 Wheel loader (2016u20132020) worth?

The residual value of the Liebherr L 546 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
