L 538 Liebherr L 538 Specifications & Technical Data (2022—2026)

The Liebherr L 538 is a wheel loader manufactured since 2022. It has a weight of 14.52 tons and a transport length of 7.63 meters.…

The Liebherr L 538 is a wheel loader manufactured since 2022. It has a weight of 14.52 tons and a transport length of 7.63 meters. The bucket capacity is 2.6 cubic meters, with a bucket width of 2.72 meters. The maximum discharge height is 2.96 meters. It has a travel speed of 40 km/h and a transport width of 2.72 meters. The transport height is 3.25 meters, and the turning radius outside is 6.14 meters. The machine has a maximum bucket capacity of 6.5 cubic meters and a minimum bucket capacity of 2.2 cubic meters. It is equipped with a diesel particulate filter.

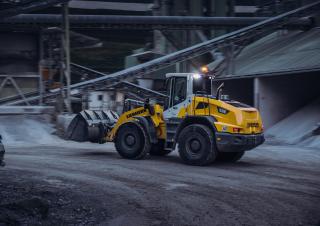

Wheel Loaders Liebherr L 538
Wheel Loaders Liebherr L 538
Wheel Loaders Liebherr L 538
Wheel Loaders Liebherr L 538
Wheel Loaders Liebherr L 538
Wheel Loaders Liebherr L 538
Wheel Loaders Liebherr L 538
Wheel Loaders Liebherr L 538

Visit Liebherr live at

Technical specs - L 538 Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
14.52 t
Standard tyres
20.5 R25
Bucket width
2.72 m
Bucket capacity
2.6 m³
Bucket capacity min.
2.2 m³
Bucket capacity max.
6.5 m³
Steering mode
KL
Transport length
7.63 m
Transport width
2.72 m
Transport height
3.25 m
Travel speed
40 km/h
Max. discharge height
2.96 m
Turning radius outside
6.14 m
Model series
L
Engine manuf.
John Deere
Engine type
4045CB551
Engine power
129 kW
Displacement
4.5 l
Revolutions at max torque
1600 rpm
Max. torque
667 Nm
No. of cylinders
4
Cylinder bore x stroke
106x127 mm
Emission level
V

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
Yes
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Liebherr L 538 FAQ

When was the Liebherr L 538 manufactured?

The Liebherr L 538 was first produced in 2022.

How much does the Liebherr L 538 wheel loader weigh?

The Liebherr L 538 wheel loader weighs 14.52 tons.

What are the transport dimensions of the Liebherr L 538 wheel loader?

The Liebherr L 538 wheel loader has a transport length of 7.63 meters, a transport width of 2.72 meters, and a transport height of 3.25 meters.

What is the travel speed of the Liebherr L 538 wheel loader?

The Liebherr L 538 wheel loader has a travel speed of 40 km/h.

What is the average fuel consumption of the Liebherr L 538 wheel loader?

The Liebherr L 538 wheel loader has an average fuel consumption of 6.93 liters per hour.

What is the standard tyre size of the Liebherr L 538 wheel loader?

The Liebherr L 538 wheel loader has standard tyres sized 20.5 R25.

What are the maneuverability specifications of the Liebherr L 538 wheel loader?

The Liebherr L 538 wheel loader has an articulated-frame steering mode and an outside turning radius of 6.14 meters.

What is the maximum discharge height of the Liebherr L 538 wheel loader?

The Liebherr L 538 wheel loader has a maximum discharge height of 2.96 meters.

What are the specifications of the bucket on the Liebherr L 538 wheel loader?

The Liebherr L 538 wheel loader has a bucket capacity of 2.6 mu00b3, with a minimum capacity of 2.2 mu00b3 and a maximum capacity of 6.5 mu00b3, and the bucket width is 2.72 meters.

How much is a Liebherr L 538 Wheel loader (2022u20132025) worth?

The residual value of the Liebherr L 538 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
