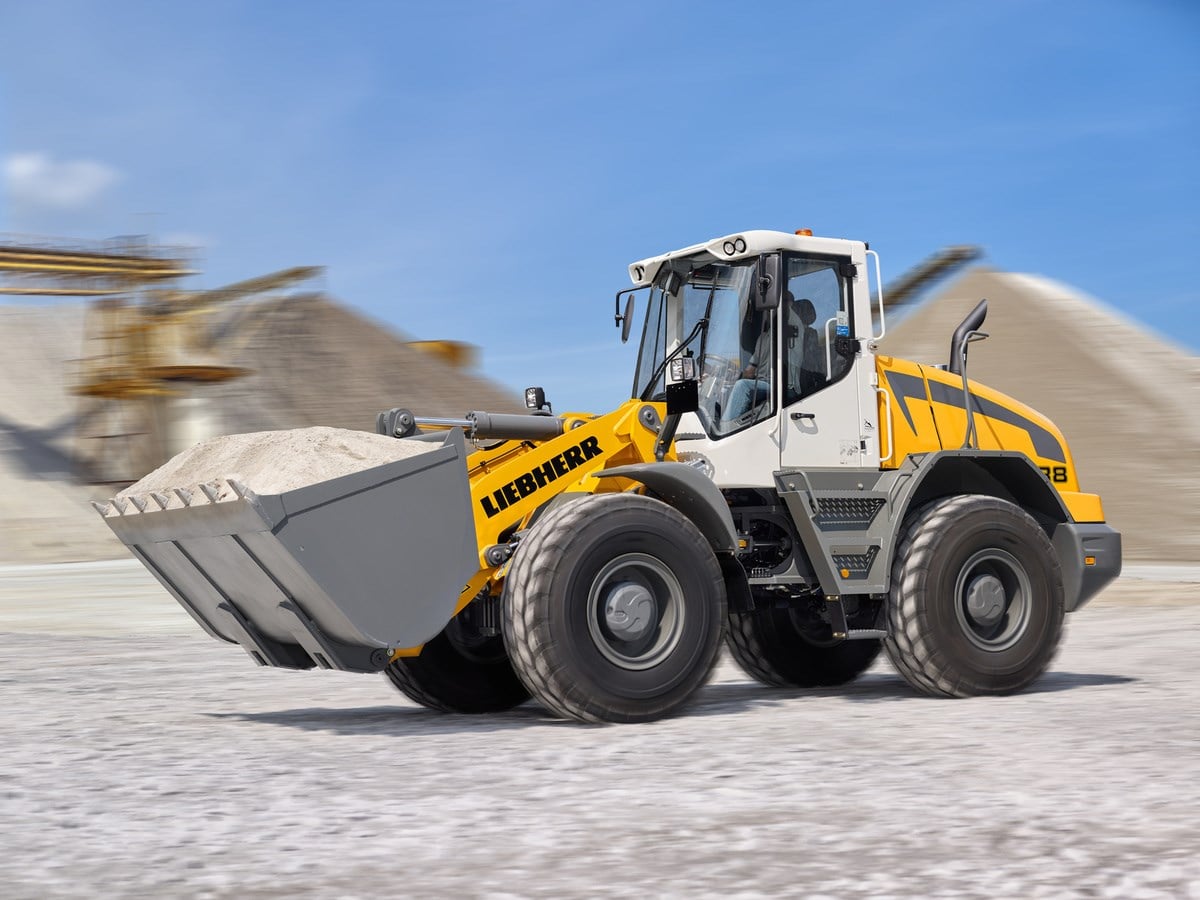

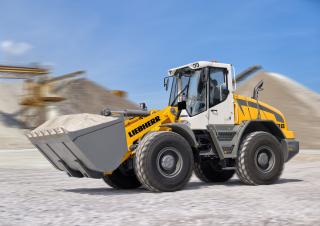

L 538 Liebherr L 538 Specifications & Technical Data (2016—2020)

The Liebherr L 538 is a wheel loader manufactured from 2016 to 2020. It has a weight of 13.5 tons and a transport length of 7.53 m…

The Liebherr L 538 is a wheel loader manufactured from 2016 to 2020. It has a weight of 13.5 tons and a transport length of 7.53 meters. The bucket capacity ranges from 2.3 to 6.5 cubic meters, with a bucket width of 2.5 meters. The maximum discharge height is 2.845 meters. It has a travel speed of 40 km/h and a transport width of 2.5 meters. The transport height is 3.25 meters, and the turning radius outside is 6 meters. Special equipment includes a diesel particulate filter.

Wheel Loaders Liebherr L 538

Visit Liebherr live at

Technical specs - L 538 Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
13.5 t
Standard tyres
20.5 R25
Bucket width
2.5 m
Bucket capacity
2.6 m³
Bucket capacity min.
2.3 m³
Bucket capacity max.
6.5 m³
Steering mode
KL
Transport length
7.53 m
Transport width
2.5 m
Transport height
3.25 m
Travel speed
40 km/h
Max. discharge height
2.845 m
Turning radius outside
6 m
Model series
L
Engine manuf.
John Deere
Engine type
4045HLC09
Engine power
111 kW
Displacement
4.5 l
Revolutions at max torque
1500 rpm
Max. torque
628 Nm
No. of cylinders
4
Cylinder bore x stroke
106x127 mm
Emission level
IV

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
Yes
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liebherr L 538 FAQ

When was the Liebherr L 538 manufactured?

The Liebherr L 538 was manufactured from 2016 to 2020.

How much does the Liebherr L 538 wheel loader weigh?

The Liebherr L 538 wheel loader weighs 13.5 tons.

What are the transport dimensions of the Liebherr L 538 wheel loader?

The Liebherr L 538 wheel loader has a transport length of 7.53 meters, a transport width of 2.5 meters, and a transport height of 3.25 meters.

What is the travel speed of the Liebherr L 538 wheel loader?

The Liebherr L 538 wheel loader has a travel speed of 40 km/h.

What is the fuel consumption range of the Liebherr L 538 wheel loader?

The Liebherr L 538 wheel loader has a fuel consumption range of 5 to 9 liters per hour.

What is the standard tyre size of the Liebherr L 538 wheel loader?

The Liebherr L 538 wheel loader is equipped with standard tyres sized 20.5 R25.

What are the maneuverability specifications of the Liebherr L 538 wheel loader?

The Liebherr L 538 wheel loader has an articulated-frame steering mode and an outside turning radius of 6 meters.

What is the maximum discharge height of the Liebherr L 538?

The Liebherr L 538 has a maximum discharge height of 2.85 meters.

What are the specifications of the bucket on the Liebherr L 538 wheel loader?

The Liebherr L 538 wheel loader has a bucket with a capacity ranging from 2.3 to 6.5 cubic meters, a standard capacity of 2.6 cubic meters, and a width of 2.5 meters.

How much is a Liebherr L 538 Wheel loader (2016u20132020) worth?

The residual value of the Liebherr L 538 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
