Liebherr L 528 P Specifications & Technical Data (2011-2013)

Name: Liebherr L 528 P Wheel Loaders
Brand: Liebherr

Model 2011-2013 (Other machines by Liebherr)

Rate this machine now

Manufactured by Liebherr, this is the L 528 P wheel loader. Find and download detailed specs and data sheets for this machine here.

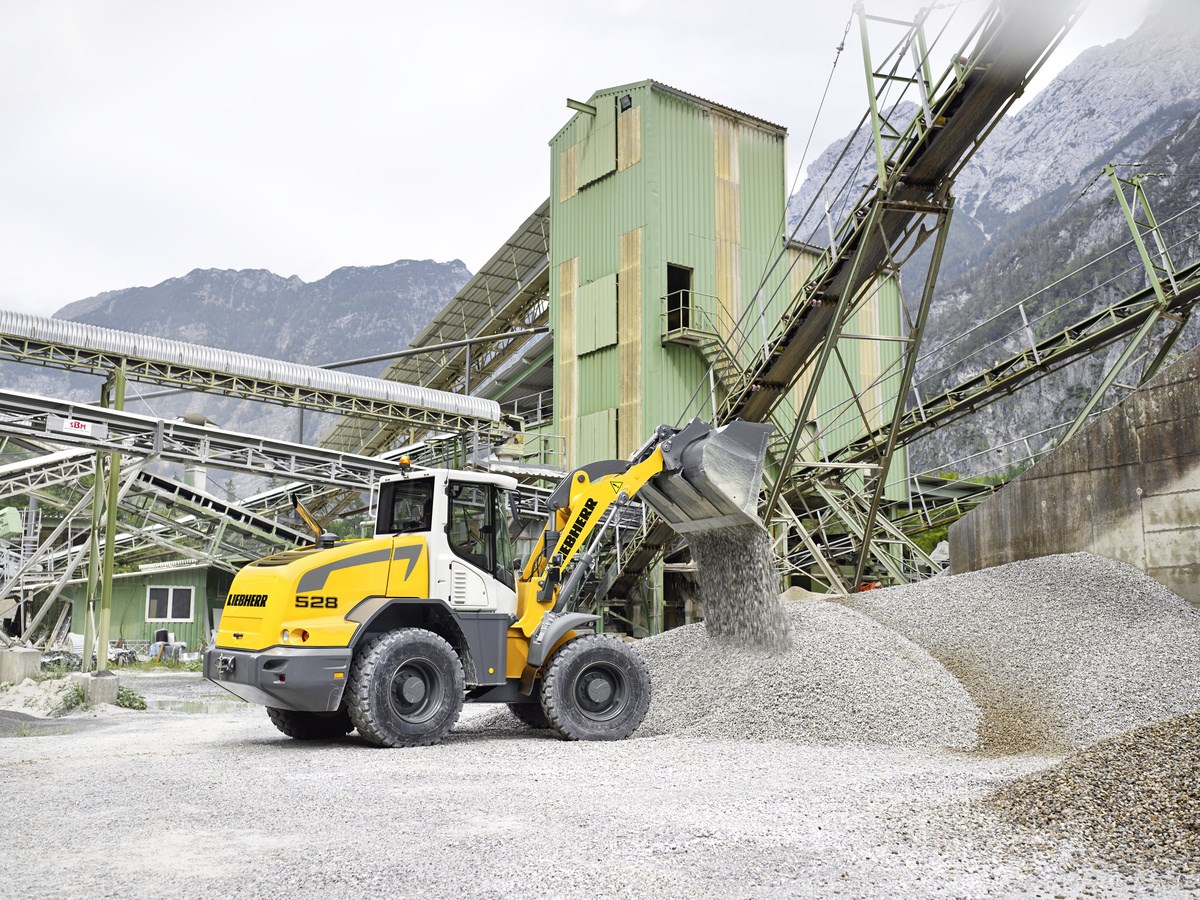

The Liebherr L 528 P is a 12.16t machine with John Deere engine which powers this model with up to 86kW or 115 horse power. The Liebherr L 528 P can be grouped in the biggest machine segment in the wheel loaders category. The model's dimensions are 7.17m x 2.5m x 3.2m. 17.5 R 25 is the size of standard tyres equipped on this Liebherr L 528 P wheel loader. 40km/h is a maximum speed of which this Liebherr Wheel Loader can travel. The bucket capacity of 2m³ and the maximal discharge height of 2.76m are about average for this type of machine. 2.5m is the width of the bucket attached to this Liebherr L 528 P wheel loader.

Since 2011, this model has included Quick hitch mech.. It does not include Diesel particulate filter, telescopic and Quick hitch hydr.. Take the original Liebherr L 528 P datasheet for even more detailed specifications and machine details. You can download it for free in English, French and German on LECTURA Specs.

This model can be acquired for a list price between €179000 and €228000. Production of the L 528 P stopped in 2013. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

Comparisons of the L 528 P Liebherr with other wheel loader models reveal that, based on specifications and pricing, the model is similar to the Hitachi ZW 150, Caterpillar 928 Hz as well as Caterpillar 924K. Liebherr currently produces 16 other wheel loaders, which range from 5.2t up to 32.6t - the most visited on LECTURA Specs are L 566 XPower®, L 576 XPower®, L 514 Stereo. Want more detailed specifications? Download the latest Liebherr L 528 P specs data sheet on LECTURA Specs today!

Show more Show less

Technical specs - L 528 P Liebherr

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight	12.16 t
Standard tyres	17.5 R 25
Bucket width	2.5 m
Bucket capacity	2 m³
Bucket capacity min.	2 m³
Steering mode	KL
Transport length	7.17 m
Transport width	2.5 m
Transport height	3.2 m
Travel speed	40 km/h
Max. discharge height	2.76 m
Turning radius outside	5.7 m
Lifting force	80 kN
Engine manuf.	John Deere
Engine type	4045HF286
Engine power	86 kW
Displacement	4.5 l
Revolutions at max torque	1500 rpm
Emission level	IIIA
