L 509 Stereo Liebherr L 509 Stereo Specifications & Technical Data (2014—2018)

The Liebherr L 509 Stereo is a wheel loader manufactured by Liebherr from 2014 to 2018. It has a weight of 6.39 tons and a transpo…

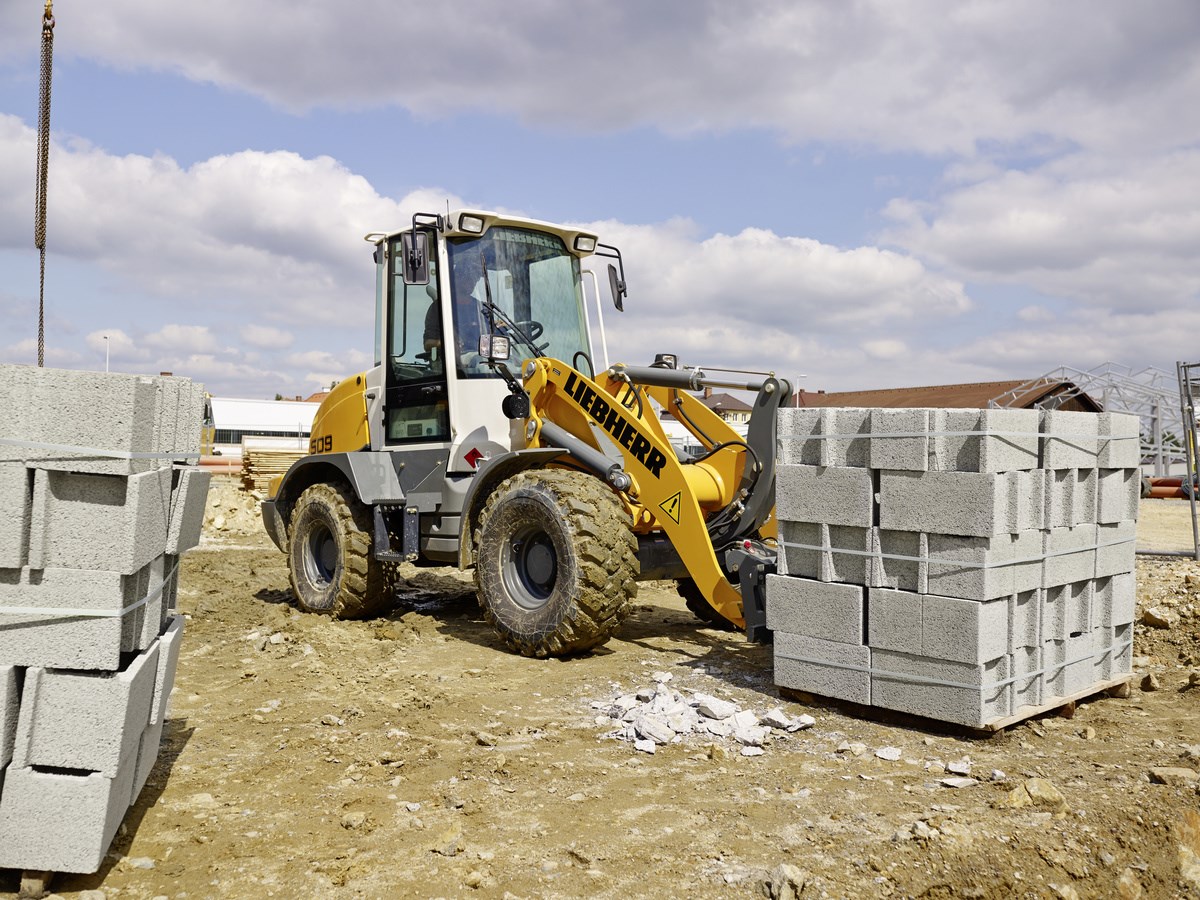

The Liebherr L 509 Stereo is a wheel loader manufactured by Liebherr from 2014 to 2018. It has a weight of 6.39 tons and a transport length of 5.76 meters. The bucket capacity is 1.2 cubic meters with a bucket width of 2.33 meters. The maximum discharge height is 2.641 meters and it has a travel speed of 20 km/h. The transport width is 2.33 meters and the transport height is 2.78 meters. The turning radius outside is 4.19 meters. The machine is equipped with a diesel particulate filter and a quick hitch hydr.

Wheel Loaders Liebherr L 509 Stereo
Wheel Loaders Liebherr L 509 Stereo
Wheel Loaders Liebherr L 509 Stereo
Wheel Loaders Liebherr L 509 Stereo

Visit Liebherr live at

Technical specs - L 509 Stereo Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
6.39 t
Standard tyres
405/70 R18
Bucket width
2.33 m
Bucket capacity
1.2 m³
Bucket capacity min.
1.2 m³
Steering mode
SL
Transport length
5.76 m
Transport width
2.33 m
Transport height
2.78 m
Travel speed
20 km/h
Max. discharge height
2.641 m
Turning radius outside
4.19 m
Model series
L
Engine manuf.
Yanmar
Engine type
4TNV98CT
Engine power
54 kW
Displacement
3.32 l
Revolutions at max torque
2400 rpm
Max. torque
280/1800 Nm
No. of cylinders
4
Cylinder bore x stroke
98x110 mm
Emission level
V

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
Yes
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Liebherr L 509 Stereo FAQ

When was the Liebherr L 509 Stereo manufactured?

The Liebherr L 509 Stereo was manufactured from 2014 to 2018.

How much does the Liebherr L 509 Stereo wheel loader weigh?

The Liebherr L 509 Stereo wheel loader weighs 6.39 tons.

What are the transport dimensions of the Liebherr L 509 Stereo wheel loader?

The Liebherr L 509 Stereo has a transport length of 5.76 meters, a transport width of 2.33 meters, and a transport height of 2.78 meters.

What is the travel speed of the Liebherr L 509 Stereo wheel loader?

The Liebherr L 509 Stereo has a travel speed of 20 km/h.

What are the undercarriage tyre specifications of the Liebherr L 509 Stereo wheel loader?

The Liebherr L 509 Stereo is equipped with standard tyres sized 405/70 R18.

What are the maneuverability specifications of the Liebherr L 509 Stereo wheel loader?

The Liebherr L 509 Stereo has a turning radius of 4.19 meters and features stereo steering mode.

What is the maximum discharge height of the Liebherr L 509 Stereo wheel loader?

The Liebherr L 509 Stereo has a maximum discharge height of 2.64 meters.

What are the bucket specifications of the Liebherr L 509 Stereo wheel loader?

The Liebherr L 509 Stereo has a bucket capacity of 1.2 cubic meters, a minimum bucket capacity of 1.2 cubic meters, and a bucket width of 2.33 meters.

How much is a Liebherr L 509 Stereo Wheel loader (2014u20132018) worth?

The residual value of the Liebherr L 509 Stereo depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
