RT270 Kubota RT270 Specifications & Technical Data (2019—2026)

The Kubota RT270 is a wheel loader manufactured since 2019. It has a weight of 2.75 tons and a transport length of 3.25 meters. Th…

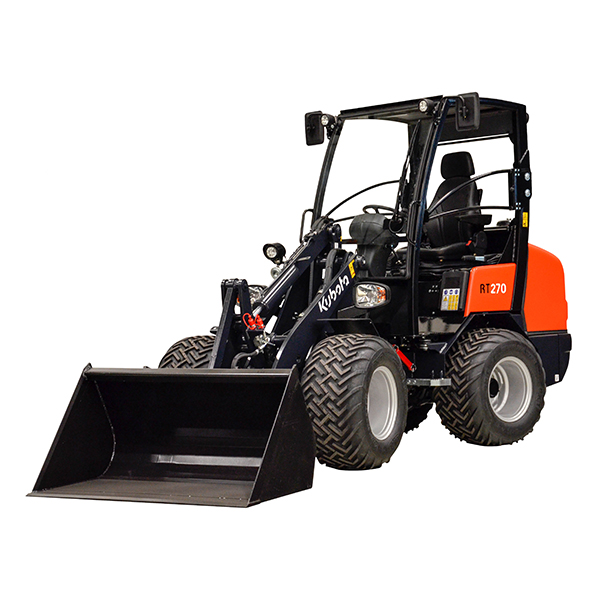

The Kubota RT270 is a wheel loader manufactured since 2019. It has a weight of 2.75 tons and a transport length of 3.25 meters. The bucket capacity is 0.42 cubic meters, and it can reach a maximum discharge height of 2.14 meters. With a travel speed of 25 km/h, it has a transport width of 1.1 meters and a transport height of 2.33 meters. The lifting force of this machine is 15.5 kN, and it has a turning radius outside of 2.97 meters. The minimum bucket capacity remains at 0.42 cubic meters.

Wheel Loaders Kubota RT270

Technical specs - RT270 Kubota

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.75 t
Standard tyres
11.5/80-15.3 AS
Bucket capacity
0.42 m³
Bucket capacity min.
0.42 m³
Transport length
3.25 m
Transport width
1.1 m
Transport height
2.33 m
Travel speed
25 km/h
Max. discharge height
2.14 m
Turning radius outside
2.97 m
Lifting force
15.5 kN
Model series
RT
Engine manuf.
Kubota
Engine type
V1505T
Engine power
33 kW

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Kubota RT270 FAQ

When was the Kubota RT270 manufactured?

The Kubota RT270 was first produced in 2019.

How much does the Kubota RT270 weigh?

The Kubota RT270 weighs 2.75 tons.

What are the transport dimensions of the Kubota RT270 wheel loader?

The Kubota RT270 has a transport length of 3.25 meters, a transport width of 1.1 meters, and a transport height of 2.33 meters.

What is the travel speed of the Kubota RT270 wheel loader?

The Kubota RT270 has a travel speed of 25 km/h.

What are the standard tyre specifications for the Kubota RT270 wheel loader?

The Kubota RT270 wheel loader is equipped with standard tyres sized 11.5/80-15.3 AS.

What is the turning radius of the Kubota RT270 wheel loader?

The Kubota RT270 has an outside turning radius of 2.97 meters.

What is the lifting force of the Kubota RT270?

The Kubota RT270 has a lifting force of 15.5 kN.

What is the maximum discharge height of the Kubota RT270 wheel loader?

The Kubota RT270 wheel loader has a maximum discharge height of 2.14 meters.

What is the bucket capacity of the Kubota RT270 wheel loader?

The Kubota RT270 wheel loader has a bucket capacity of 0.42 cubic meters.

How much is a Kubota RT270 Wheel loader (2019u20132025) worth?

The residual value of the Kubota RT270 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Kubota RT270 overview

Engine / Powertrain / Drivetrain

Kubota Original Engine: Powerful, Efficient and Low Emission

KUBOTA engine is known for its reliability and durability. It is strong and powerful with respect for the environment especially for noise and emissions.


Hydrostatic Transmission (HST)

The hydrostatic transmission is equipped with an high performance pump which guarantees an efficient transmission of the power to the wheels.


Hydraulic system

Multi-function operating lever and steering column

The user friendly designed multifunction lever allows to control all the main functions of your articulated wheel loader: shuttle switch, auxiliary circuit (according to the versions) and, of course the front attachment functions. The steering wheel is tiltable in order to offer the best driving position to the operator.


Operator's cab

Dashboard

The dashboard provides the operator with easy to read gauges for both the fuel level and engine water temperature, along with additional warning lights for engine oil pressure, water temperature, and battery charge. Therefore, you can operate your wheel loader in full confidence.


Ventilation System

When the RT270 is equipped with a cabin, a ventilation system allows the operator to have a cool or heated cabin. Thanks to several outlets well dispatched throughout the cabin and various fan speeds, the air is well spread out around the operator, allowing them to work more efficiently.


Bucket and Ground Engaging Tools

Heavy Duty Chassis

The thickness of the material used, the load resistance and the compactness are the key features of the chassis of the RT-series. In addition, the hydraulic tank is enclosed within the frame which provides additional counterweight.
