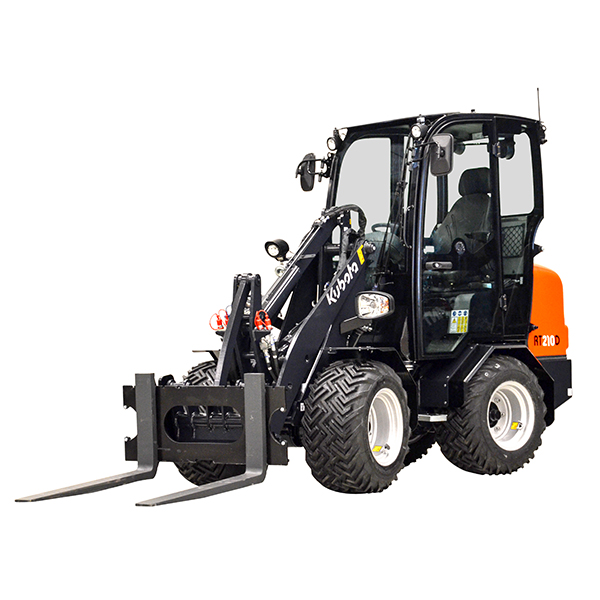

RT210 Kubota RT210 Specifications & Technical Data (2019—2026)

Kubota Original Engine : Powerful, Efficient and Low Emission

KUBOTA engine is known for its reliability and durability. It is strong and powerful with respect for the environment especially for noise and emissions.

Shaft Drive Transmission

The power between the rear axle and the front axle on the RT210 is transmitted by a shaft which garantees a high traction force. Combined with a limited slip differential, the RT210 is ready to tackle any terrain.

Pivoting Articulation

With an articulation of 45° and an oscillating angle of 6.3°, the RT210 can drive through tight space’s without creating any damage on the surface.

Hydrostatic Transmission (HST)

The hydrostatic transmission is equipped with an high performance pump which guarantees an efficient transmission of the power to the wheels.

Multi-function operating lever and steering column

The user friendly designed multifunction lever allows to control all the main functions of your articulated wheel loader: shuttle switch, auxiliary circuit (according to the versions) and, of course the front attachment functions. The steering wheel is tiltable in order to offer the best driving position to the operator.

Transmission control

The hydrostatic transmission is controlled by a pedal located on the right side of the steering column. A simple action of the right foot on the pedal acts simultaneously on the engine rpm and also on the hydrostatic pump. The operator can control the travel speed with full concentration on the front attachments being used.

Dashboard

The dashboard provides the operator with easy to read gauges for both the fuel level & engine water temperature and with additional warning lights for engine oil pressure, water temperature and battery charge. Therefore, you can operate your wheel loader in full confidence.

Ventilation System

When the RT210 is equipped with a cabin, a ventilation system allows the operator to have a cool or heated cabin. Thanks to several outlets well dispatched throughout the cabin and several fan speeds, the air is well spread out around the operator, allowing the operator to work more efficiently.

Daily Maintenance

The main components which require daily checks, such as engine oil level, coolant level, air filter, and radiator, are easily accessible, thanks to the wide opening engine bonnet. In addition, the offset battery terminals allow for quick starting assistance in the event of battery default.

Safety Features

The RT210 is available with a cabin or with a canopy. In both cases, the protective structures are certified ROPS ISO3471 and FOPS ISO3449. To ensure good operating comfort, the full suspension seat is fitted with two arm rests and a safety belt.
