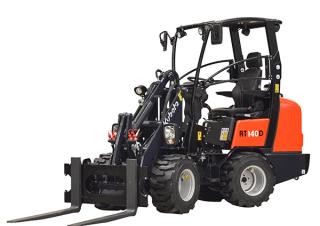

RT140 Kubota RT140 Specifications & Technical Data (2019—2026)

The Kubota RT140 is a wheel loader manufactured since 2019. It has a weight of 1.56 tons and a transport length of 2.67 meters. Th…

The Kubota RT140 is a wheel loader manufactured since 2019. It has a weight of 1.56 tons and a transport length of 2.67 meters. The bucket capacity is 0.32 cubic meters, with a maximum discharge height of 1.83 meters. It has a travel speed of 12 km/h and a transport width of 0.89 meters. The transport height is 2.17 meters, and the lifting force is 10 kN. The turning radius outside is 2.26 meters, and the minimum bucket capacity is 0.32 cubic meters.

Wheel Loaders Kubota RT140

Technical specs - RT140 Kubota

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.56 t
Standard tyres
7.00x12
Bucket capacity
0.32 m³
Bucket capacity min.
0.32 m³
Transport length
2.67 m
Transport width
0.89 m
Transport height
2.17 m
Travel speed
12 km/h
Max. discharge height
1.83 m
Turning radius outside
2.26 m
Lifting force
10 kN
Model series
RT
Engine manuf.
Kubota
Engine type
D1105
Engine power
19 kW

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Kubota RT140 FAQ

When was the Kubota RT140 manufactured?

The Kubota RT140 was first produced in 2019.

How much does the Kubota RT140 wheel loader weigh?

The Kubota RT140 wheel loader weighs 1.56 tons.

What are the transport dimensions of the Kubota RT140 wheel loader?

The Kubota RT140 has a transport length of 2.67 meters, a transport width of 0.89 meters, and a transport height of 2.17 meters.

What is the travel speed of the Kubota RT140 wheel loader?

The Kubota RT140 has a travel speed of 12 km/h.

What are the undercarriage specifications of the Kubota RT140 wheel loader?

The Kubota RT140 wheel loader is equipped with standard tyres sized 7.00x12.

What is the outside turning radius of the Kubota RT140 wheel loader?

The Kubota RT140 has an outside turning radius of 2.26 meters.

What is the power rating of the Kubota RT140 wheel loader?

The power rating of the Kubota RT140 wheel loader is not provided in the available data.

What is the maximum discharge height of the Kubota RT140?

The Kubota RT140 has a maximum discharge height of 1.83 meters.

What is the bucket capacity of the Kubota RT140 wheel loader?

The Kubota RT140 wheel loader has a bucket capacity of 0.32 cubic meters.

How much is a Kubota RT140 Wheel loader (2019u20132025) worth?

The residual value of the Kubota RT140 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Kubota RT140 overview

Engine / Powertrain / Drivetrain

Kubota Original Engine: Powerful, Efficient and Low Emission

Kubota engine is known for its reliability and durability. It is strong and powerful with respect for the environment especially for noise and emissions.


Hydrostatic Transmission (HST)

The hydrostatic transmission is equipped with an high performance pump which guarantees an efficient transmission of the power to the wheels.


Multi-function Operating Lever and Steering Column

The user friendly designed multifunction lever allows to control all the main functions of your articulated wheel loader: shuttle switch, auxiliary circuit (according to the versions) and of course the front attachment functions. The steering wheel is tiltable in order to offer the best driving position to the operator.


Transmission Control

The hydrostatic transmission is controlled by a pedal located on the right side of the steering column. A simple action of the right foot on the pedal acts simultaneously on the engine rpm and also on the hydrostatic pump. The operator can control the travel speed with full concentration on the front attachments being used.


Operator's cab

Dashboard

The dashboard provides the operator with easy to read gauges for both the fuel level & engine water temperature and with additional warning lights for engine oil pressure, water temperature and battery charge. Therefore you can operate your wheel loader in full confidence.


Comfort seat

In order to insure a good operating comfort and safety, the seat is equipped with arm rest and safety belt.


Daily maintenance

The main components which require daily check such as engine oil level, coolant level, air filter and radiator are easily accessible, thanks to the wide opening engine bonnet. In addition, the offset battery off terminals allow a quick starting assistance in the event of a battery default.
